500 Liters stainless steel pilot double jacket reactor for pharmaceutical intermediates WHGCM

No.00343
This stainless steel reactor is a pilot double jacket reactor, the customer is a pharmaceutical company, producing pharmaceutical intermediates.
No. Parameters Kettle Jacket
1 Full volume（L） 660
2 Work volume（L） 500
3 Design pressure（MPa） 1 0.6
4 Work pressure（MPa） 0.3 0.5
5 Design temperature（℃） -10~300 -10~300
6 Work temperature（℃） -5~250 -5~250
7 Material S31603 S30408
Click for Quotation
Description

poster of the 500L double jacket reactor

Title of product introductionTitle of product structure
Picture of the 500L double jacket reactor structure
Title of product Features
reactor head photo The following is the explanation of why this stainless steel double jacket reactor was made with these specifications and configurations
  • The volume of the reactor is 500 liters, which is at the upper limit volume of a pilot reactor. Usually, the volume of a pilot reactor is from 50 liters to 500 liters.
  • The temperature range of 5°C to 250°C requires the reactor itself to have a very good tolerance to heat and cold. The reason for this design is that the reactants need to be subjected to high-temperature reactions, the hydrogenation.
Heating Jacket:
  • A Jacket with electric heating for oil bath is applied for this pharma reactor. It is because of the convenience and ease of operation, and also because the oil does not reach its boiling point at 250°C and does not put additional pressure on the jacket.
  • This is also why water or steam is not used for heating in this case. The use of water cooling in the inner coil ensures that the temperature is reduced to room temperature at the end of the reaction.
  • The 3.3 sqm of heat exchange area of the coil ensures that cooling can be done quickly and efficiently, avoiding excessive waiting times.
Insulation Jacket:

  • This jacket is on the external layer of the whole reactor, and it is the 2nd jacket.  It is used to prevent the heat escaping.
  • The other purpose of applying this jacket is to prevent the hazard caused by the temperature to operator.
Kettle:
  • Because the products are viscous, the smoothness of the reaction chamber is required to reach Ra≤0.4μm, which ensures that the reactor can be cleaned quickly after the reaction is finished.  The reaction can be continued with the next batch in a short time.
  • The presence of the sight glass ensures that the operator can monitor the situation inside the reactor at any time, ensuring that the progress of the reaction can be understood at any time.
Ex proof parts:
  • The configuration of the explosion-proof components ensures the safety of the operator.
Material:
  • This reaction uses stainless steel S31603 as main material fo the kettle, which has better corrosion resistance than S30408.
 shaft sleeve coupler's photo

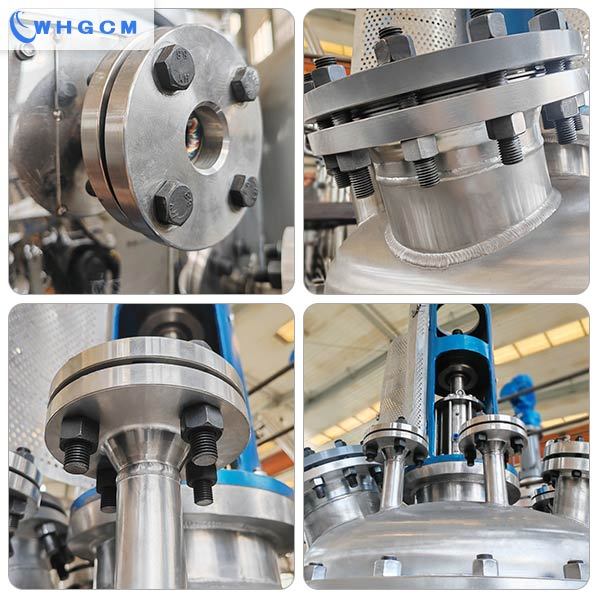

Flange photo Advices for buyer:
  • In all reactions, safety is the priority from the beginning to the end. This is why we often have to repeatedly confirm the reaction conditions with the customer.
    We believe that recommending reactors to customers only according to their applications is a lack of consideration and neglect of safety.
  • We also hope that the majority of users will carefully distinguish the ability of suppliers when choosing them. For unprofessional producers and manufacturers, you must not consider them. To avoid irreparable tragedies in the future.
  • If you don't know much about the reaction, we would suggest you seek help from the design institute or chemical reaction laboratory first. After the design institute or chemical reaction laboratory provides the exact reaction parameters, volume, temperature, pressure, and the characteristics of the reaction medium (mainly the corrosiveness, whether it is flammable and explosive, etc.), we will design a preliminary drawing and provide the reactor material and the corresponding dimensions for the customer to make a final confirmation.


pilot reactor general parameters range form

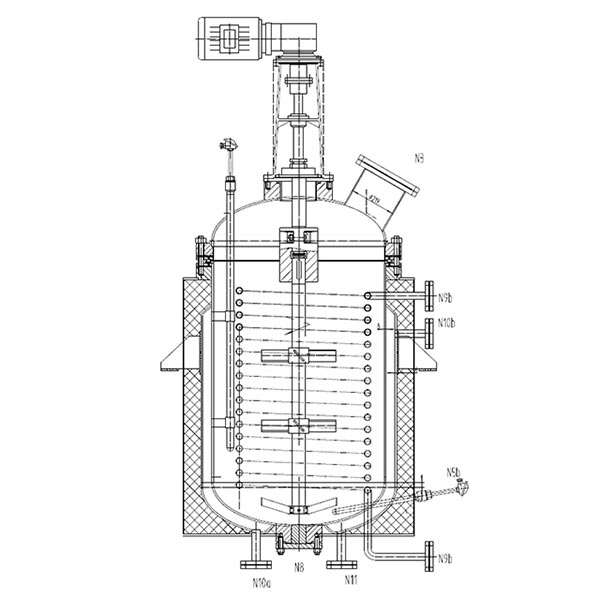

sketch of the reactor Full volume 550L
Work volume: 500L
Design pressure MPa 1.0
Design temperature -0~300
Working pressure MPa 0.3
Working temperature -5~250
Motor power 3.0kw
Rotation speed rpm 0-120
Stirring Stype: Paddle + anchor type
Heating method  electric heating with oil bath
cooling method coil water cooling
Sealing method: mechanical seal
heat exchange area 3.3sqm
Contact material S31603
Application: pharmaceutical intermediates.
Design life 10 years

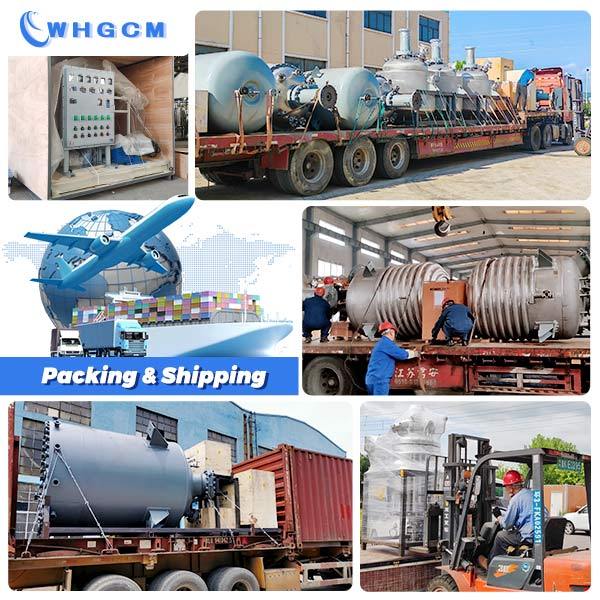

Piture of optional accessoriesTitle of WHGCM Manufacturing capaciptyTesting and producing machines in WHGCMcases and customers photoWHGCM packing and shipping photo
