| No. | Parameters | Tank | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 50 | ||
| 3 | Design pressure（MPa） | -0.1/12 | ||
| 04 | Work pressure（MPa） | -0.1/10 | ||
| 5 | Design temperature（℃） | -30-270 | ||
| 6 | Work temperature（℃） | -20-250 | ||
| 7 | Material | S31603+16MnDr | ||
| 8 | Stirring speed | 0-500 | ||
| 9 | Motor power (W) | 2200 | ||
 |

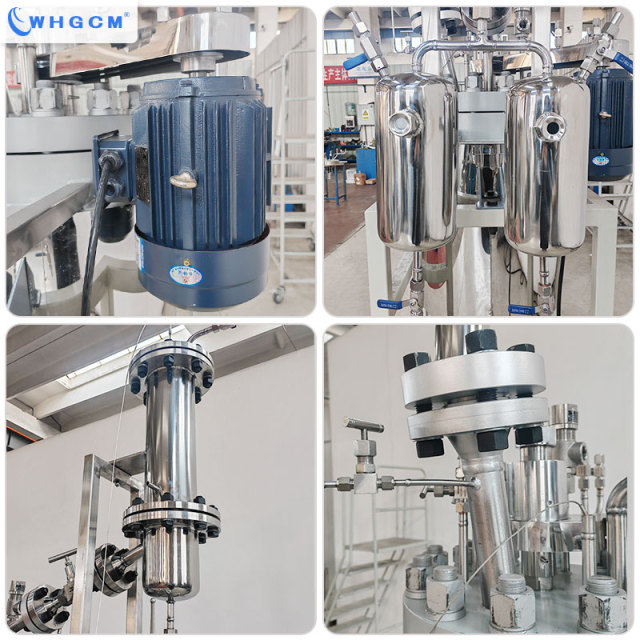

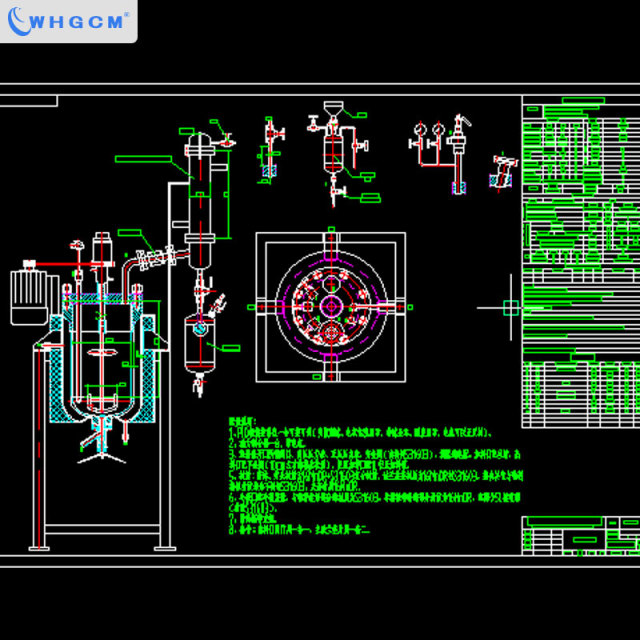

Powerful motor is assembled to ensure high stirring speed. It is side mounted, the shaft of coupler is driven via a belt of the motor. The side-mounted motor reduces the center of gravity of the reactor on the one hand and improves the stability of the reactor. On the other hand, it saves space and makes the structure of the whole reactor more compact and beautiful.
|
|

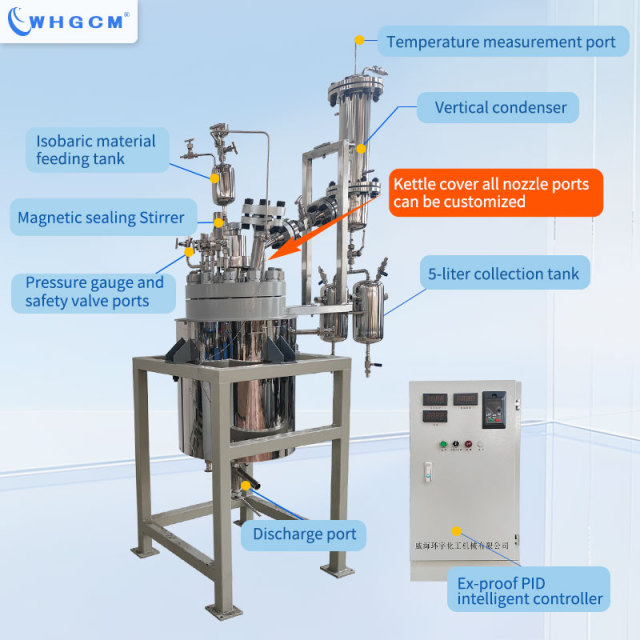

Constant pressure feeding port with 1L constant pressure feeding tank |
 |
 |
Tank cover
-Temperature measurement port -Safety valve / pressure gauge / pressure sensor port -Gas inlet -Vent port -Liquid inlet port -Solid feed port -Jacket inlet and outlet ports All nozzle ports are customized as the user's requirements |
|
Tank bottom -Jacket inlet/outlet port -Discharge port with downward expansion valve All nozzle ports are customized as the user's requirements |
 |
| Pilot Reactor Technical Parameters | |||||
| Working Volume (L) | 50 | 100 | 200 | 300 | 500 |
| Structure Type |
Open Style
Connect Kettle Lid and Kettle Body by Bolts and Nuts on Flange
|
||||
| Working pressure | Negative pressure -0.1~20.0 (MPa) | ||||
| Working temperature | -196-500°C | ||||
| Motor power (W) | 1.1 | 1.5 | 2.2 | 3 | 4 |
| Heating power (KW) | 9 | 15 | 18 | 18 | 36 |
| Heating type | Direct Electric Heating Fumace, Electric Heater with Thermal Oil Bath, Jacket Circulation with Thermal oil/steam/melt salt | ||||
| Discharging type | Discharging from bottom, sampling from kettle lid. | ||||
| Mixing Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||
| Stirring type | Impeller, Paddle, Anchor, Turbine, Self-suction, Frame, Screw, Belt, or as per customer's request. | ||||
| Seal type | Magnetic Seal, Mechanical Seal, Packing Seal. | ||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||
| Reactor material | Tank inner contacting materials option: All kinds of stainless steel, such as SS304, SS316L,SS321,310S,S32205, and Titanium, Hastelloy,Zirconium,Nickel etc., as the reaction actual needed. | ||||
| Kettle lid open port | Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc(safety valve) port, Cooling water inlet/outlet port(or Visual Glass Port and other port according to working pressure). | ||||
| Controller Device |
Equipped with auto PlD or PLC controller,Display & control Mixing Speed and Heating Temperature, self-adjustment function,temperature control accuracy +1°C;
Control other instruments, like flow meter, level meter, valves according to reaction
process.
|
||||
