0.5L high pressure lab reactor

No.00423
The is an fantastical lab reactor could handl pressure as high as 40 MPa. The material of Inconel625 has enable it's ability to work at 600°C！
No. Parameters Kettle
1 Full volume（L） /
2 Work volume（L） 0.5
3 Design pressure（MPa） -0.1~46
4 Work pressure（MPa） 40
5 Design temperature（℃） 650
6 Work temperature（℃） 600
7 Material Inconel625
Click for Quotation
Description

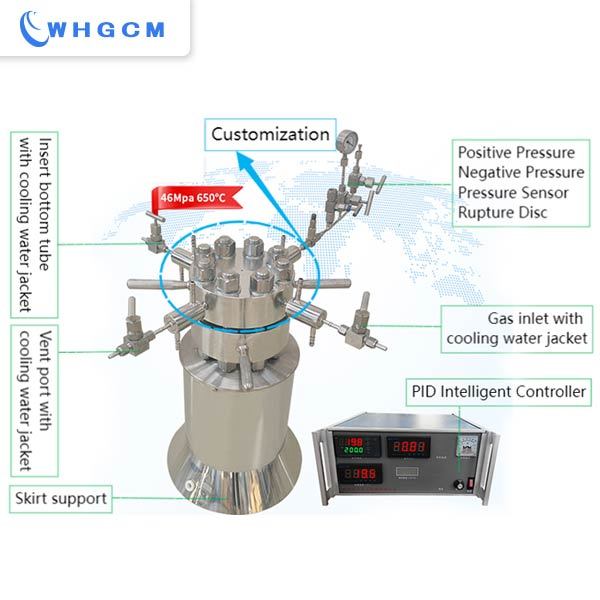

poster of the 0.5L high pressure lab reactor

Title of product introductionTitle of product structure

Picture of 0.5L high pressure lab reactor structure

Title of product Features

Photo of reactor Reactor Overview:
  • Volume： 0.5L.
  • Over size: D300mm * H390mm.
  • Kettle: D50mm * T25mm.
  • Material: Inconel 625 and stainless steel 304.The housing of the insulation is stainless steel S304.
  • The kettle and the parts that to contact with medium are made from Inconel 625.
  • The kettle is heated by the Muffle furnace, which has the power of 3KW and it is sufficient enough to heat the medium from room temperature to 600°C.
  • The insulation jacket is applied to ensure the energy saving and personal protecting features.
Main flange:
  • Main flange is made as per design pressure of 46MPa.
  • Due to the high pressure requirement, the main flange seems supper thick in this reactor.
  • The flange , bolts, and nuts are all made from stainless steel S304.
  • The inner part of the flange contacting the medium are surfacing welding with Inconel 625.
 Flange close up
Nozzle close up Nozzles and ports:
Compact design:
  • The nozzles are stretched out in horizonal postion from upper flange lid. In order to promise the strength of the lid, the ports are reasonable compacted.The instruments such as pressure gauge, burst dic,and pressure transmitter are assembled on the bypass of main port.
  • The bypasses are controlled by the needle vavles, so to control the using of the accordingly instrument.
Individual cooling parts:
  • The water jacket is applied on the main pipe close to the kettle, so that it could reduce the temperature to acceptable level.
  • The pipes and cooling parts are 304 too.

lab reactor general parameters range form
