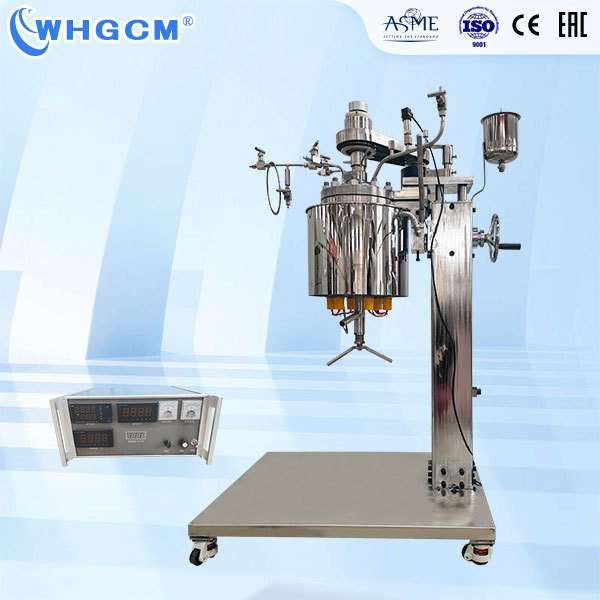

| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 5 | ||
| 3 | Design pressure（MPa） | 6 | ||
| 4 | Work pressure（MPa） | 5 | ||
| 5 | Design temperature（℃） | 280 | ||
| 6 | Work temperature（℃） | 250 | ||
| 7 | Material | SS304 | ||
| 8 | Stirring speed | 0~1000 | ||
| 9 | Motor power (W) | 600 | ||
 |

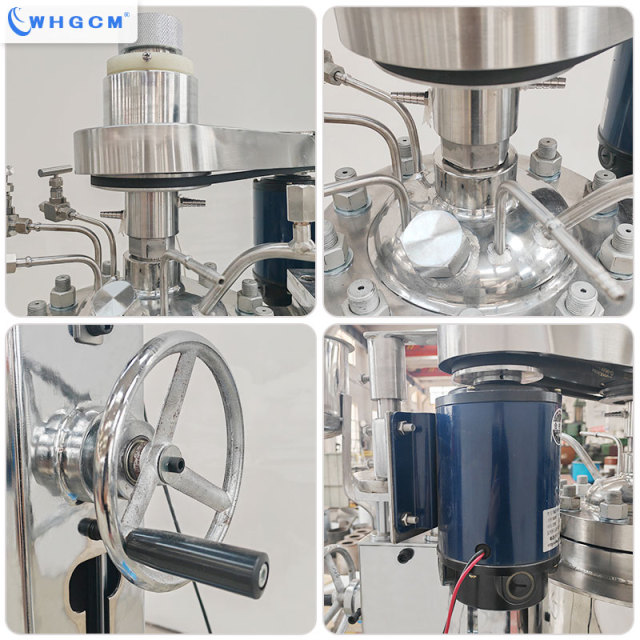

Magnetic sealing coupler
Magnetic sealing coupler-Core technology

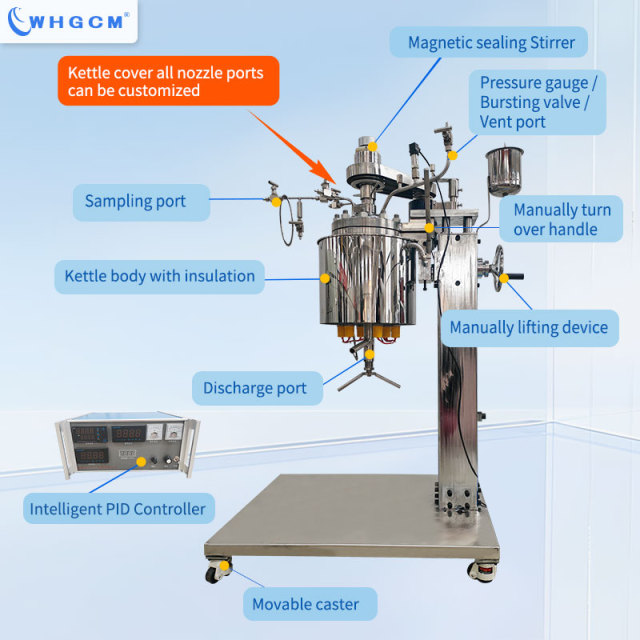

Static seal, magnetic transmission. Kettle cover nozzle ports
Valves, pressure gauges, rupture valves, pressure sensors, and platinum resistance temperature sensors required for the openings on the kettle cover Note: All nozzle ports can be customized |
|
Manually lifting device This reactor design with manually lifting device and manual turn over handle. |
 |
 |
Reactor bottom
-The discharge port is equipped with a bottom expansion valve. -Heating type: Thermal oil bath electric heating |
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25-50 |
| Working pressure |
Negative pressure -0.1~40 MPa
|
Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa |
| Working temperature | 0-1500℃ | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power (KW) | 0.8~1 | 1-3 | 3-6 | 4-9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Charging type | Charging from above, discharging from below or above. | |||
| Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal. | |||
| Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||
| Reactor material | Kettle inner contacting materials option: All kinds of stainless steel, such as SS304, SS316L,SS321,310S,S32205, and Titanium, Hastelloy,Zirconium,Nickel etc., as the reaction actual needed. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. |
|||
| Controller Device |
Equipped with automatic or programmed PlD or PLC to achieve:
Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control;
Flow display and control; Valve open/close control, etc.
|
|||
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
