| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 12.8 | ||
| 2 | Work volume（L） | 10 | ||
| 3 | Design pressure（MPa） | ATM | ||
| 4 | Work pressure（MPa） | ATM | ||
| 5 | Design temperature（℃） | 150 | ||
| 6 | Work temperature（℃） | 120 | ||
| 7 | Material | S31603 | ||
 |

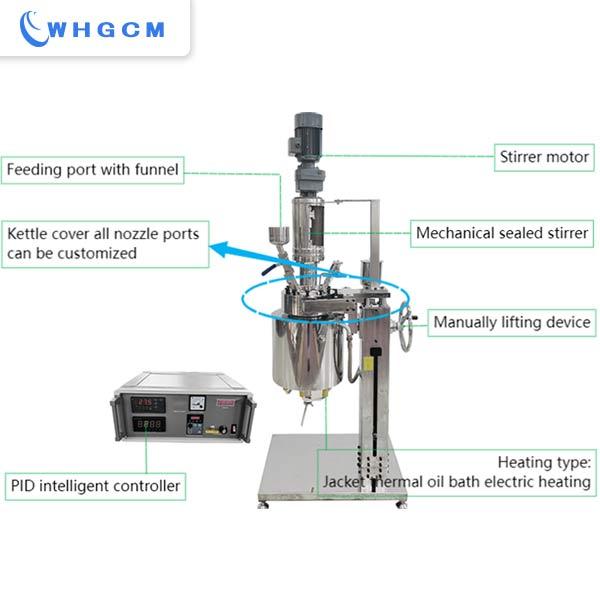

Non explosion proof motor The motor power is 750W. It is powerful enough for the chemical stirring inside the reactor kettle. The motor is mounted on the top of the coupler, connect the shaft of stirrer. |

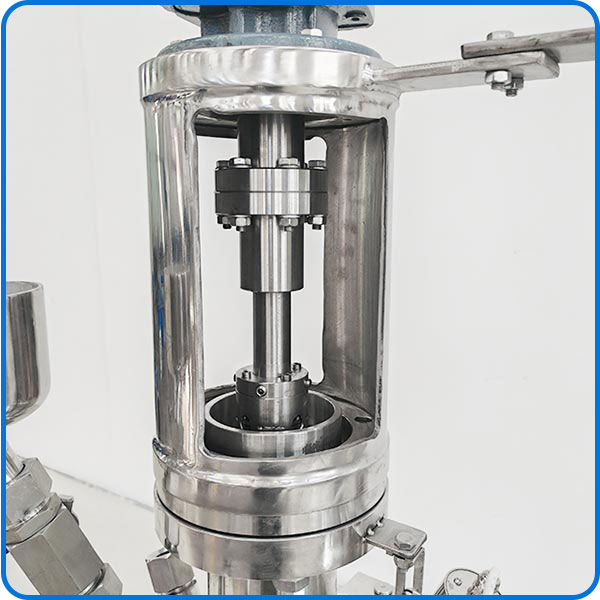

| Mechanical coupler This coupler has general sealing effect and could transfer the power from the motor. The machinery rack and shaft coupler are made from stainless steel. |
 |
 |
Reactor head The reactor's head is using the fast clamping structure. With the help of this part, operator could open the reactor's lid easily instead of unbolt the screw on the flange one by one. So, it could reduce the waiting time between each reactions, and accelerate the chemical research. Reactor body It is a typical jacketed reactor body. The applying of jacket is more and more popular in nowadays. Because the thermal oil could offer uniform heating area to the kettle, and the electric heating for the thermal oil is clean and easy to operate. By this mean, the chemical reactant inside the kettle could be heated very well. |

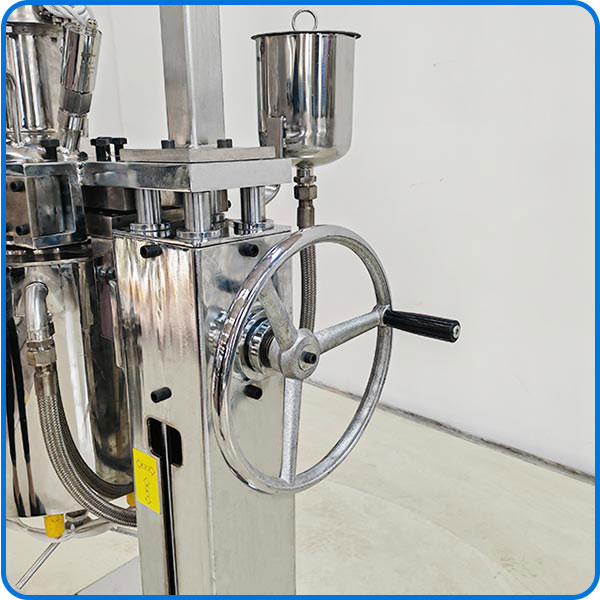

| Manual lifting rack This device can lift the reactor kettle up and down by turning the wheel on the rack pole. The applying of this device could save a lot of labor for the operator. |
 |
 |
Heating bars These are the electric heating bars for the reactor. The heating bars are injected via the ports opened under the bottom of the jacket. The elctric heating is fast and easy to operate than other kinds of heating methord. Discharge valve The valve is customized as per the size of discharge port. |
| Full Volume (L) | Effective volume (L) | Design pressure (MPa) | Working pressure (MPa) | Material | |
| Kettle | 12.8 | 10 | 0.2 | 0.1 | S31603 |
| Design Temperature (℃) | Operating temperature (℃) | stirring mode | stirring speed | heating method | |
| Kettle | 75 | 25 | anchor | 0~100 rpm | oil bath electric heating |
| Motor power (W) | sealed manner | corrosion allowance | joint efficiency | ||
| Kettle | 750 | mechanical | 1 | 1 |
 |
1. Mechanical seal, with motor reducer, charged heater (non-explosion). They are commen parts for the chemical reactor. 2. Equipped with kettle cover opening required valve, platinum resistance, temperature sensor, feeding port with ball valve with funnel, discharge port with display valve, anchor frame scraping wall, equipped with sight glass and sight glass lamp. Quick-opening clamp material S30408, with a set of stainless steel bolts and nuts. 3. The contact material of kettle body, kettle cover and kettle inside is S31603, flange material is S30408, Polishing in the kettle is 0.4um. The scraper is apply under the anchor blade, so it could remove the sticky chemicals from the inner surface of the kettle. 4. Jacket material is S30408, kettle cover opening valve material is S31603, 5. Lower expansion valve material is S31603. 6. Manual lifting device, kettle cover lifting, kettle body turnover. Others: One set of PID intelligent controller, controllable and adjustable (frequency conversion speed regulation, motor current display, heating temperature adjustable, kettle and jacket temperature display). Voltage: 380V,3PH |
