| No. | Paramters | Kettle | Jacket | |
| 1 | Full volume（L） | 6.2 | ||
| 2 | Work volume（L） | 5.0 | ||
| 3 | Design pressure（MPa） | 0.2 | 0.1 | |
| 4 | Work pressure（MPa） | 0.1 | 0.1 | |
| 5 | Design temperature（℃） | 120 | 120 | |
| 6 | Work temperature（℃） | 90 | 90 | |
| 7 | Material | S316L | S304 | |
 |

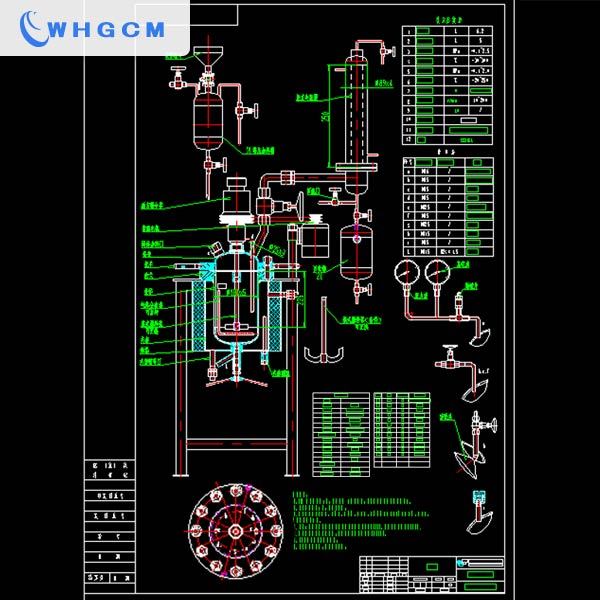

Cylinder: ᆞSize: Dia.180mm * H220mm. Thickness is 4mm. ᆞMaterial: S316L. Jackets: Heating jacket: ᆞThermal oil bathed heating method. ᆞHousing material: S304. ᆞThe expander connect to it is made from S304 too. Insulation jacket: ᆞIt is filled with rock wool. ᆞShell material is S304. The diameters of jackets are caculated as per the work temperature required. Because the work temperature is only 90°C, the room of jacket is not specially requried. We just use the jacket with normal size as per our factory standard. |

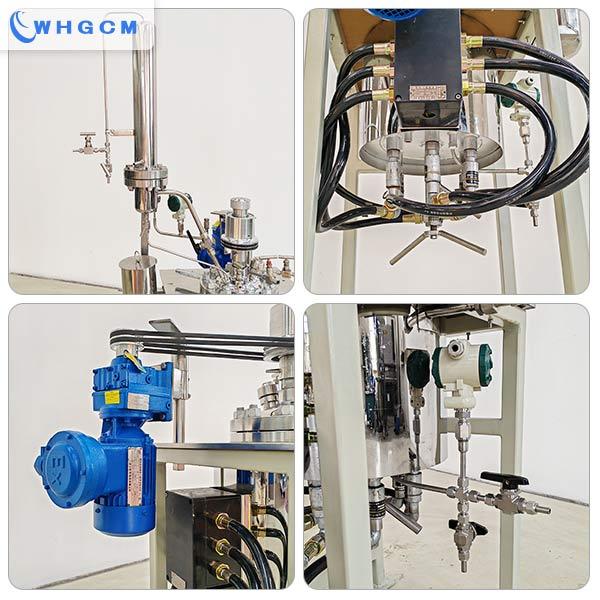

| Reactor head: Nozzles: ᆞThe nozzles connection type to its ports are screw joint. ᆞTubes and gas distributor that immersed in the medium are S316L. Stirrer: ᆞMotor: Power 370W. Ex-proof. ᆞMagnetic coupler: Inner water cooling housing for the magnetic rings. Sealing chamber is made from stainless steel S316L. ᆞAxis , axial coupler, blade: It is made from S316L. ᆞMain flange: Its size is as per steel flange standard as per design pressure and design temperature. It is made from stainless steel S304. ᆞPH meter: It is made from S316L too. |
 |
 |
Vercial condenser: It is used to sperate the products from medium. There is a S304 tube connects its bottom for refluxing. It is cooled with water, and the shell is made from S304. The other pipes connect to it is also made from S304. Needle valves: ᆞMaterial: S304. ᆞSize: to comply with the pipe's nominal size. |
| Full volume (L) | Effective volume (L) | Design pressure (MPa) | Working pressure (MPa) | |
| Kettle | 6.2 | 5 | 0.2 | 0.1 |
| Design Temperature (℃) | Operating temperature (℃) | Material | stirring mode | |
| Kettle | 120 | 90 | SS316L | pusher |
| stirring speed | heating method | heating power (KW) | Motor power (W) | |
| Kettle | 0~40 | Oil bath electric | 4 | 370（dIIBT4） |
