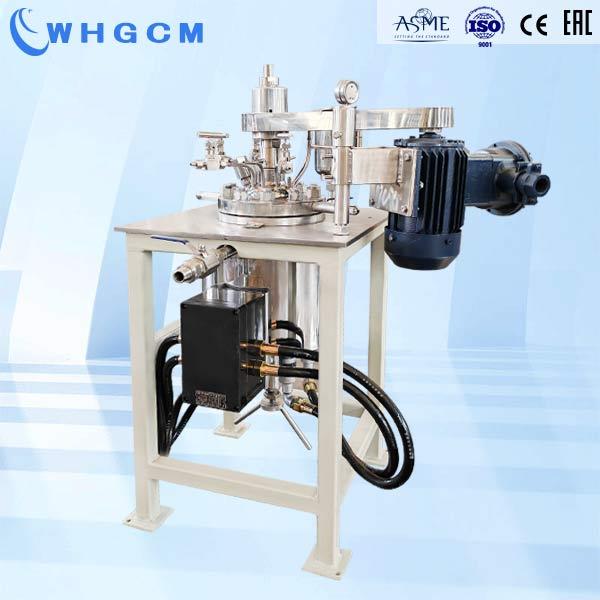

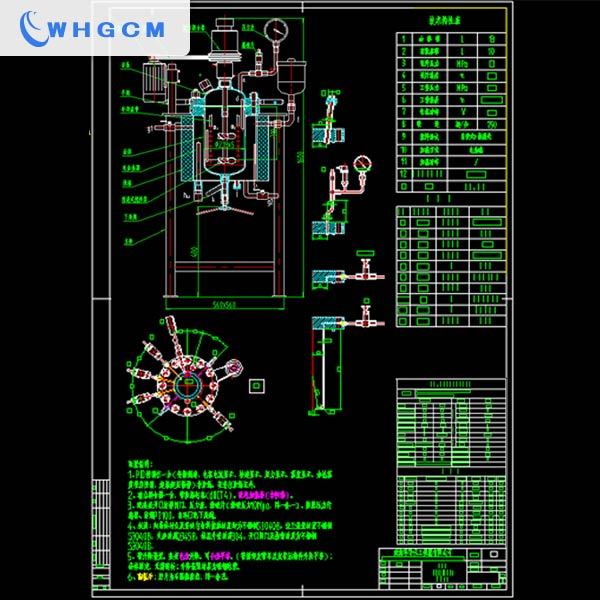

2L Jacketed stainless steel lab reactor intergated with adjustable temperature system for cleaning liquid research

No.000351
This is the lab reactor for coolant add cleaning liquid chemicals for Fluorinated fluids for semiconductor and electronic grades research. It will work at the conditions of 200°C and 10 bar. Its temperature could be adjusted as per customer's requirement
Description

Specification:

Full volume  L

Design pressure MPa

Design temperature °C

Motor power W

Heating power  KW

Sealing method

Material

2.5

3.0

200

750

2.0

Magnetic seal

Stainless steel S31603

Operation Volume L

Working pressure MPa

Working temperature

Rotation speed rpm

Heating method

Stirring Type

Design life  years

2.0

1.0

150

0-500

Electric heating  oil bath/External circulation

2 Layers of Propeller Paddle

10

Configurations:

Configurations

1, Mechanical System.

The 750W explosion proof Motor offers a powerful rotation speed for the agitator shaft. Ensuring 0~500 rpm requirement of the 2 layers propeller Paddles.

2, Heating and Cooling System.

The electric heater is plugged into the jacket, which is covered by insulation. There is the bath oil inlet and outlet of the Jacket, enable the oil circulation within the jacket. With the stable thermal effort of the bath oil, the vessel could be heated evenly.

The insulation at the most external of the vessel body is to keep heat from releasing.
Above electric heater , bath oil , and insulation are for reactor jacket temperature control purposes.

The coils inside the vessel is using for cooling after the reaction finished. It is connected to cooling water by an inlet and an outlet port. The heat exchange area is accurately calculated by the heating process requirement.

Explosion-proof PID intelligent controller (frequency control, motor current display, temperature display, heating temperature control) . Temperature control accuracy is ± 1.0 ℃.

2, Safty System

The high sealing effort is required to avoid leaking, and risk caused by hazard reactant material.

So, the magnetic coupler is applied for this reactor.

There is an explosion risk, so explosion proof motor and electric heater are required.

Pressure gauge, rupture disc,s and platinum resistance are also equipment for safety purposes.

3、Materials

Stainless steel S31603 is used for corrosion resistance.

4、Beatiful profile

The body of the reactor using stainless steel prevents the stain from growing.

The frame is 800mm high, coated with spray pale paint.

The side-mounted motor reduces the center of gravity of the reactor on the one hand and improves the stability of the reactor. On the other hand, it saves space and makes the structure of the whole reactor more compact and beautiful.
