5L high pressure lab reactor jacketed

No.00410
This is  5L stainless steel lab high-pressure reactor for Ethyl acetates, the medium for reaction are Ethyl acetates, nitrogen oxides, and water.
No. Parameters Kettle
1 Full volume(L) 6.2
2 Work volume(L) 5
3 Design pressure(MPa) -0.1~6
4 Work pressure(MPa) -0.1~5
5 Design temperature(℃) 150
6 Work temperature(℃) 100
7 Material S30408
Description

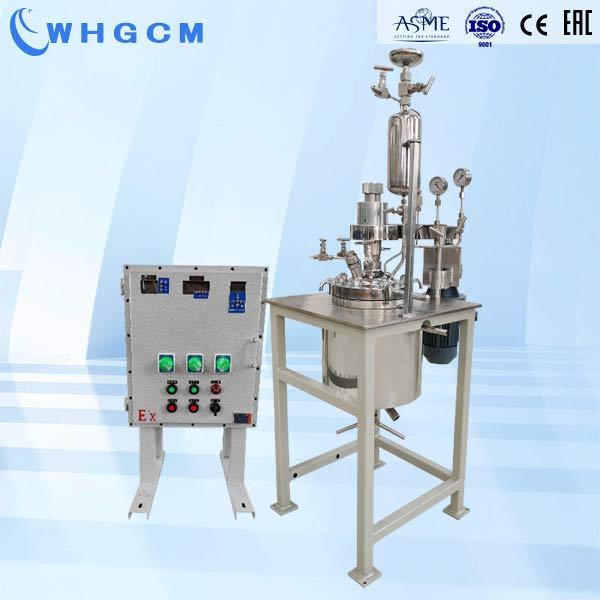

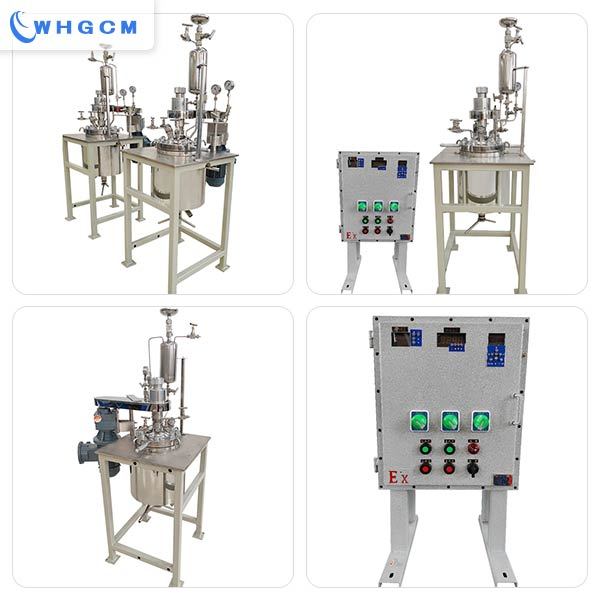

Poster of the 5L high pressure stainless steel reactor

Title of product introduction
Title of product structure

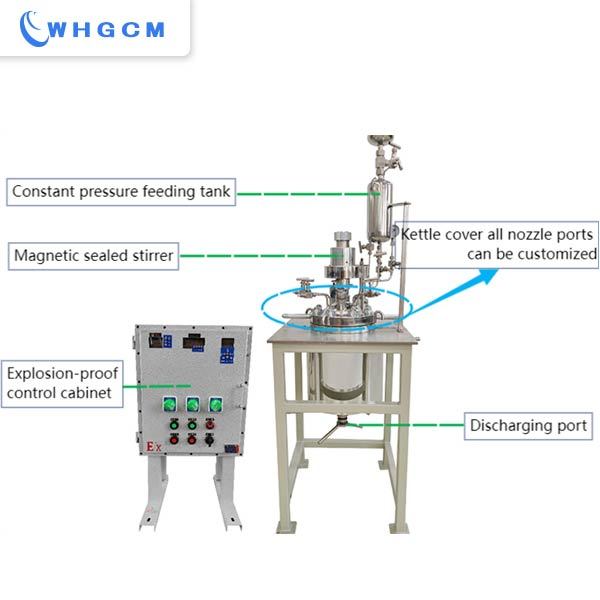

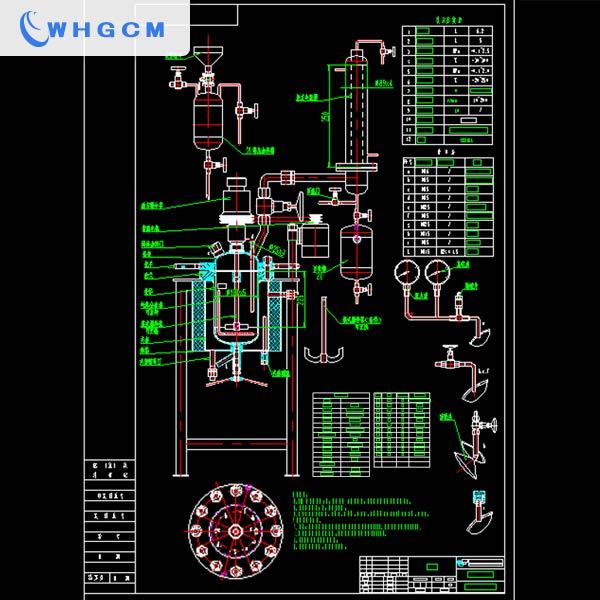

Picture of 5L high pressure stainless steel reactor structure

Title of product Features

High pressure application
Pressure  value: 6 Mpa
The following technologies of design and manufacturing are used for the high pressure requests.
ᆞ Cylinder wall specification:  Dia. 180mm with thickness as much as 6mm.
ᆞ Reinforced flanges to withstand the pressure.
ᆞ Reinforced magnetic shaft sleeve.
ᆞ The constant charging port is made to meet high-pressure requirement too.
ᆞ The nozzles are using screw or welding type, and the pipe's thickness is chosen to meet the pressure too.
Compact sizes and layout of the ports
Due to the small space on the reactor head, the ports's size and display needs to be reasonable designed.
Our company have extensive experience of making the lab reactors from 0.1 L to 50L, can arrange properly for the ports.

For this 5L reactor, the ports size is a little larger than other 5L reactor because of the pressure demand. So, our engineer design the aside assemled motor style for this reactor, which give a big avoidance for the nozzles.

Strong weld seam
The weld has been done by qualified welders with over 20 years experience.
And the PT, RT tests needs to be done after the reactor is finished.

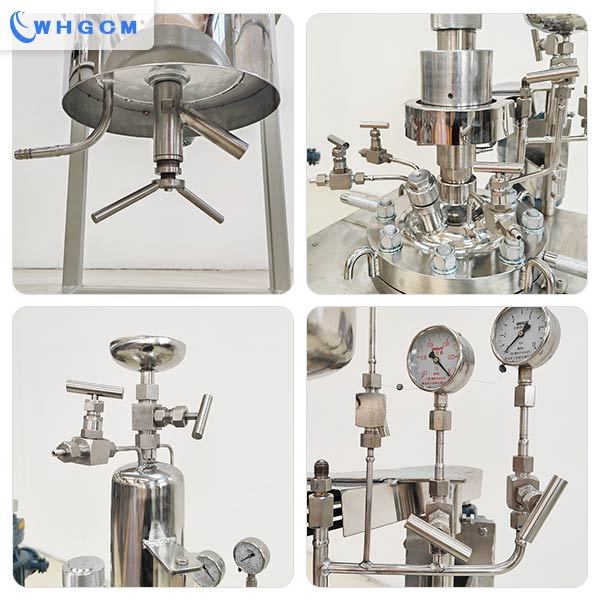

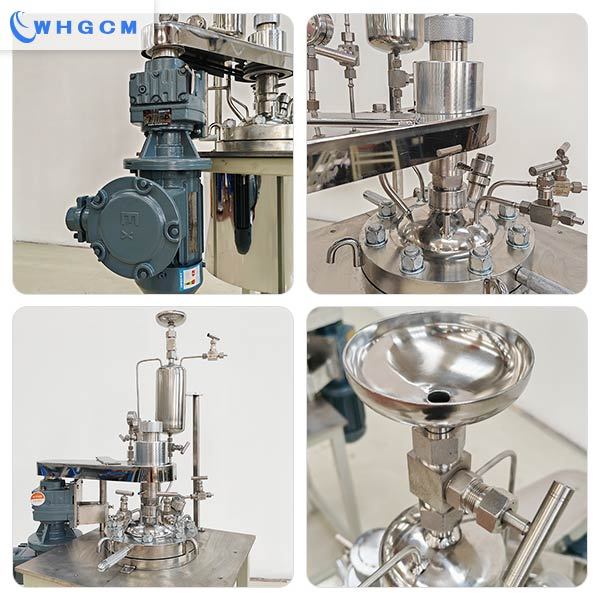

Instruments
The instruments are intergrated designed to be assembled on the ports with perticular purposes.
ᆞ The picture on left side shows the pressure nozzle, which has three braches for the positive pressure gauge, negative pressure gauge and burst disc.
ᆞ  The constant pressure charging port is customized. It offers a fluent flow for the reactor when it's bottom valve is opened. The pressure inside the tank will be the same as reactor when bottom valve is on. So, the tank is designed with thick wall for pressure resistant.

lab reactor general parameters range formPiture of optional accessories

Title of WHGCM Manufacturing capacipty
Testing and producing machines in WHGCM
cases and customers photoWHGCM packing and shipping photo
