00617
| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 10 | ||
| 3 | Design pressure（MPa） | 20 | ||
| 4 | Work pressure（MPa） | 16 | ||
| 5 | Design temperature（℃） | 450 | ||
| 6 | Work temperature（℃） | 400 | ||
| 7 | Material | SS316L | ||
| 8 | Stirring speed | 0-700 | ||
| 9 | Motor power (KW) | 0.55 | ||
 |

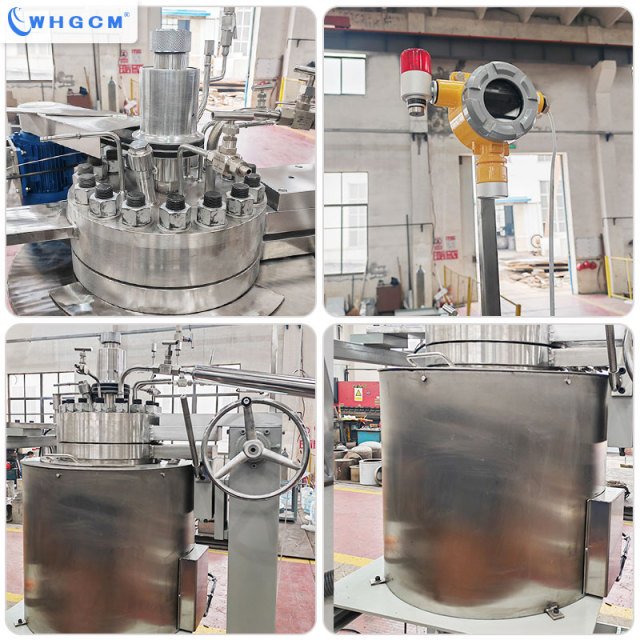

Magnetic sealed stirrer coupler
Magnetic sealing coupler
-Core technology Static seal, magnetic transmission.

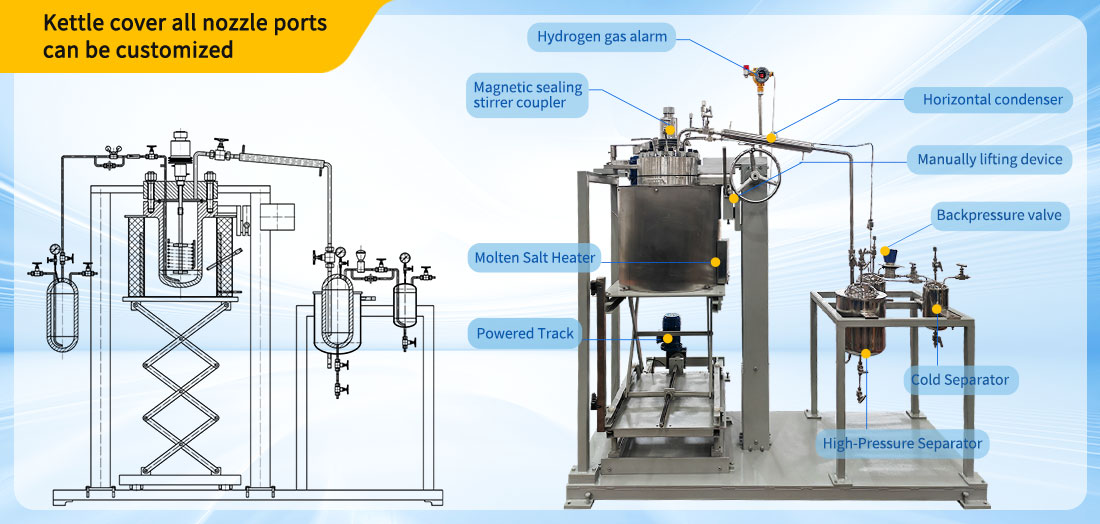

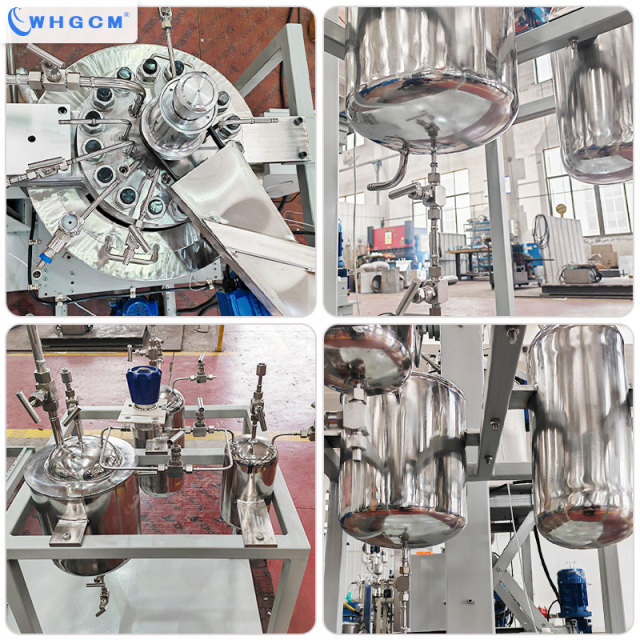

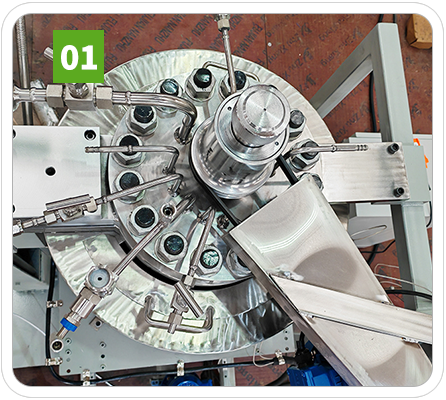

Kettle cover nozzle ports
-Pressure gauge & Rupture disc ports-Kettle inner temperature measuring port -Gas Nitrogen inlet port
-Hydrogenation gas port -Vent port -Coil inlet/outlet port
Note: All nozzle ports can be customized
|
|

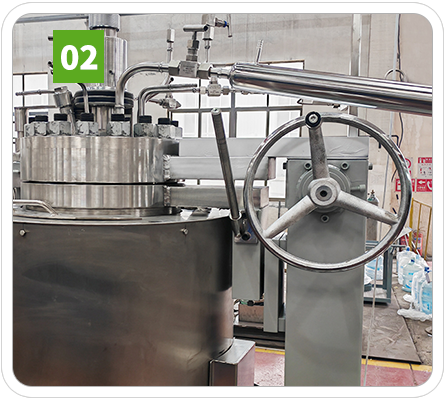

Manually lifting device
Equipped with manually lifting device and manually turn over device.
|
 |
 |

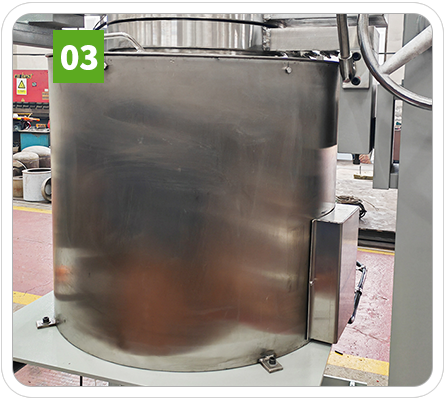

Kettle body
Most of the material of this reactor is stainless steel SS316L, can meet the corrosion resistence of the application.
Heating type
Heating type：Molten salt heating |
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25-50 |
| Working pressure |
Negative pressure -0.1~40 MPa
|
Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa |
| Working temperature | 0-1500℃ | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power (KW) | 0.8~1 | 1-3 | 3-6 | 4-9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Charging type | Charging from above, discharging from below or above. | |||
| Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal. | |||
| Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. |
|||
| Controller Device |
Equipped with automatic or programmed PlD or PLC to achieve:
Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control;
Flow display and control; Valve open/close control, etc.
|
|||
