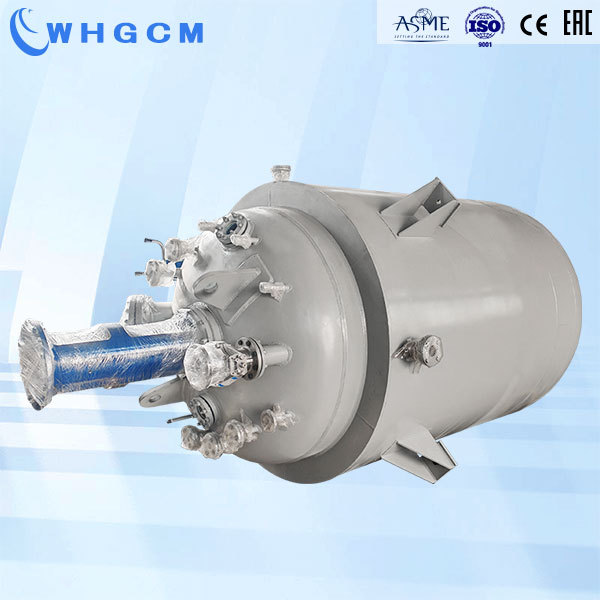

| No. | Parameters | Tank | ||
| 1 | Full volume（L） | 5600 | ||
| 2 | Work volume（L） | 5000 | ||
| 3 | Design pressure（MPa） | 1.2 | ||
| 4 | Work pressure（MPa） | 1.0 | ||
| 5 | Design temperature（℃） | 180 | ||
| 6 | Work temperature（℃） | 130 | ||
| 7 | Material | SS304+Q345R | ||
| 8 | Stirring speed | 0-85 | ||
| 9 | Motor power (W) | 22kw | ||
 |

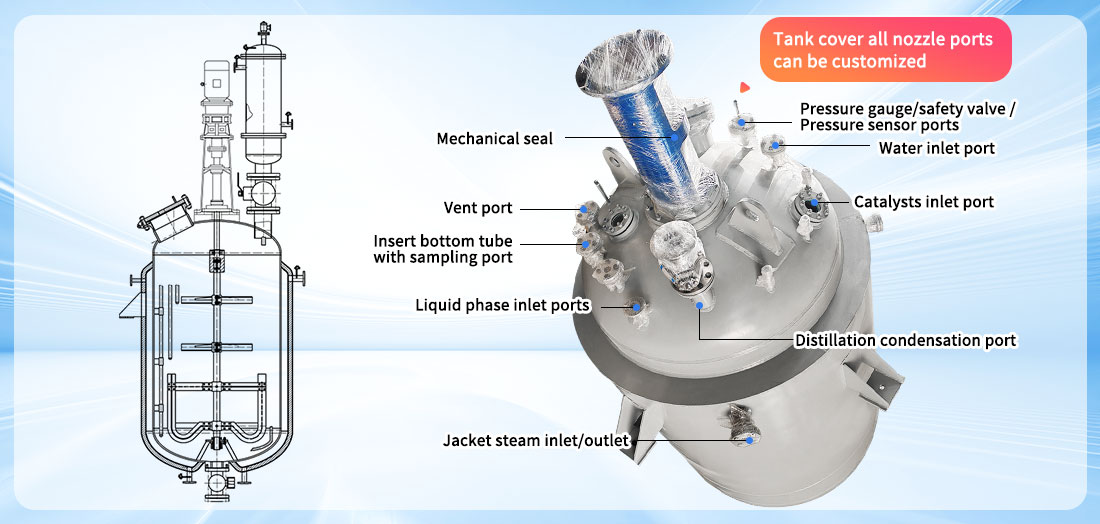

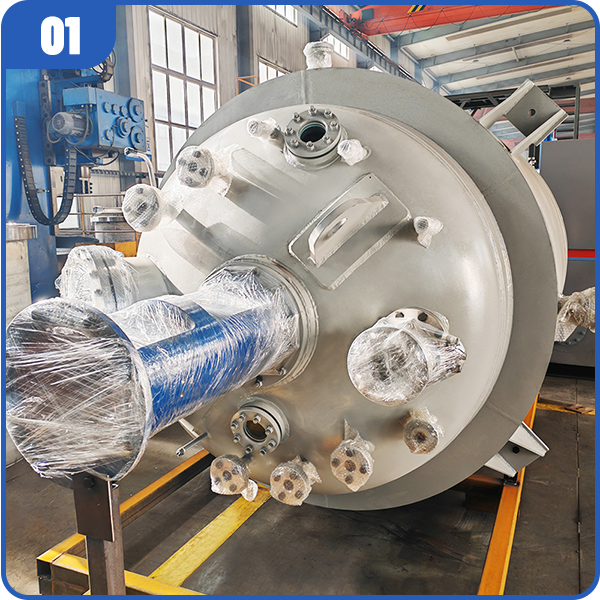

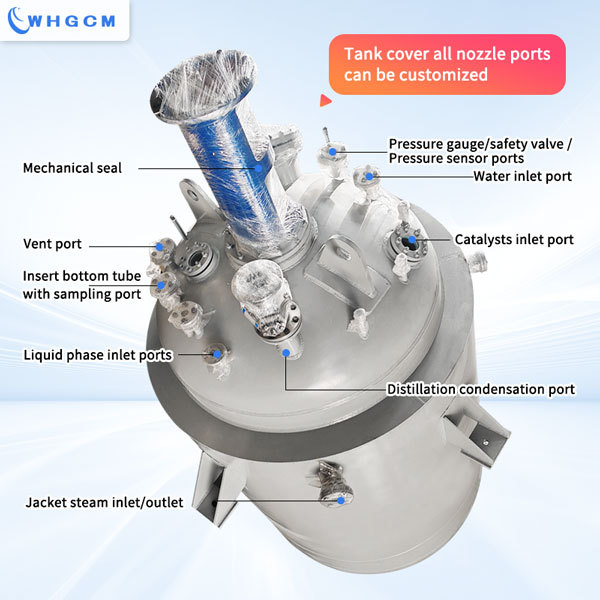

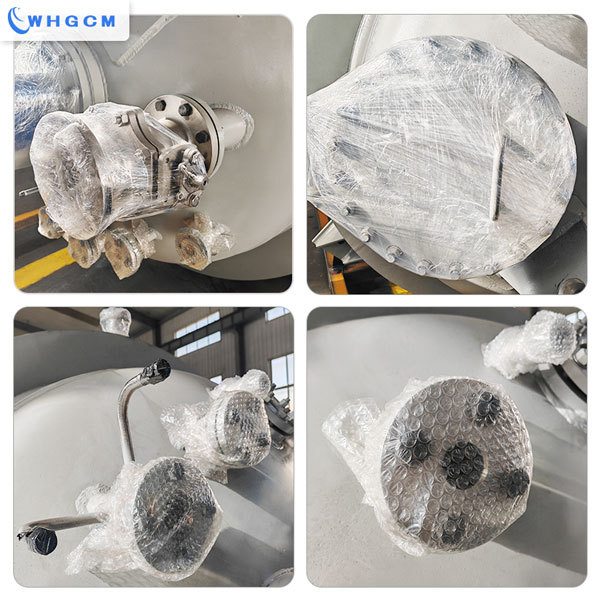

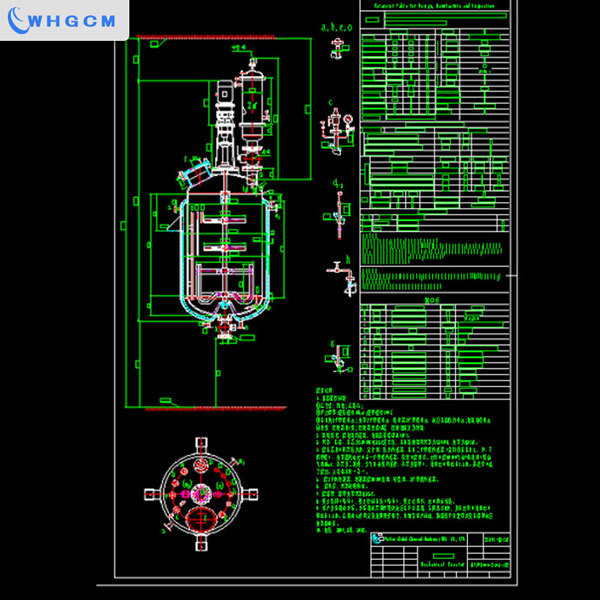

Tank cover -Pressure gauge/safety valve / Pressure sensor ports
-Catalysts inlet port
-Distillation condensation port
-Jacket steam inlet/outlet
-insert bottom tube with sampling port
-liquid phase inlet ports
The stirring shaft sleeve is mechanical sealing type.
Note: all nozzle ports & fitting type can be customized
|

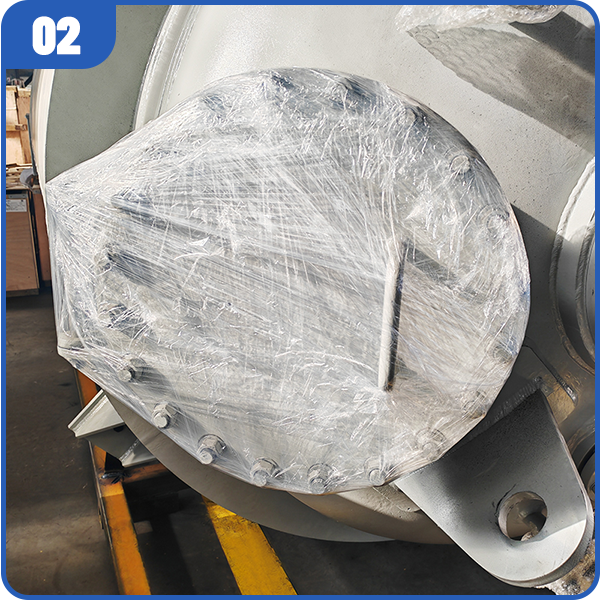

Manhole -Regular inspection and maintenance entrance -Safe, convenient and reliable The lid of manhole has a handle, which could be customized as per your request.
|
 |
 |

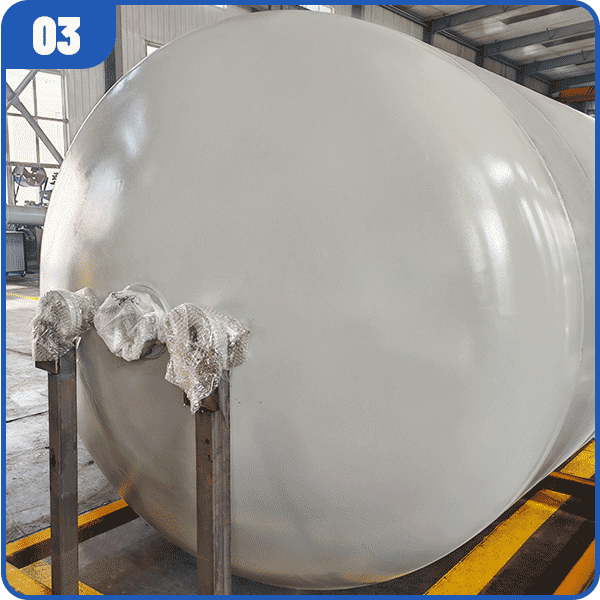

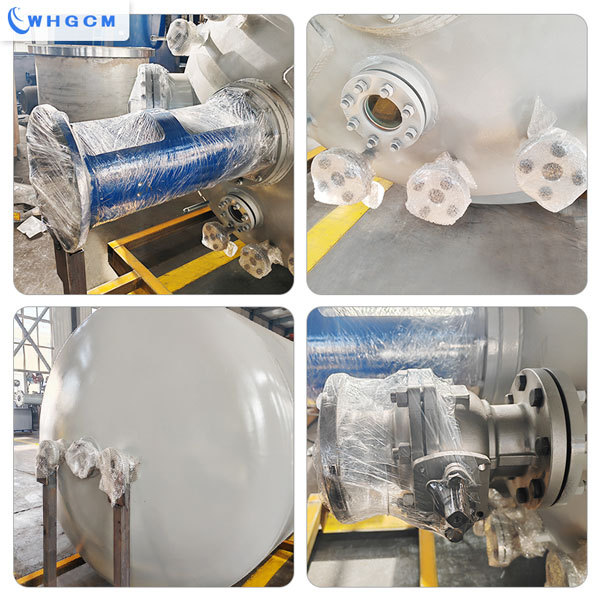

Tank bottom
-Jacket steam circulation inlet/outlet
-Jacket drain port
-Discharge port with ball valve
Note: all nozzle ports & fitting type can be customized
|
| Mechanical Seal Industrial Reactor Technical Parameters | |||||||
| Working Volume (L) | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | 20000 |
| Structure Type |
Close type (with man hole)
|
||||||
| Working pressure | ATM-1.6 MPa | ||||||
| Working temperature | 10~200 ℃ | ||||||
| Motor power (W) | 5.5 KW | 11 KW | 15 KW | 22 KW | / | ||
| Heating power (KW) | 48 KW | 60 KW | 75 KW | 90 KW | / | ||
| Heating type | Far infrared electric heating, electric heater with thermal oil bath, jacket circulation with thermal oil/steam/melt salt |
Jacket circulation with thermal oil/steam/melt salt |
|||||
| Discharging type | Discharging from bottom, or sampling from kettle lid | ||||||
| Mixing Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||||
| Mixing Style | Impeller, paddle, anchor, turbine, self-suction style, or as per customer's request. | ||||||
| Seal type | Mechanical Seal | ||||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||||
| Reactor material | Contacting material mainly use Cladding Plate of Stainless Steel SS304+Mild Steel Q345R, SS316L+Q345R, SS321+Q345R, or use pure stainless steel; Or use Titanium, Nickel, Zirconium, Hastelloy, Inconel or Monel Cladding Plate, or coating with Teflon PTFE or PPL as per customer request. | ||||||
| Kettle lid open port |
Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc (safety valve) port, Man hole (Hand hole), Cooling water inlet/outlet port
(or Visual Glass Port and other port according to working pressure)
|
||||||
| Controller Device |
Equipped with automatic PID or PLC controller, temperature control accuracy ±1℃;
Can display & control Mixing Speed and Heating Temperature; Can adjust heating power for constant temperature, also has self-adjustment function. |
||||||
| Other Accessories |
If the user have other special requirements on kettle cover, kettle body openning, internal structure, high and low pressure, stirring paddle and other supporting device (such as refluxing unit, condenser, constant feeding tank, collector, etc) we can
manufacture ODM reactors according to users' requests. |
||||||
