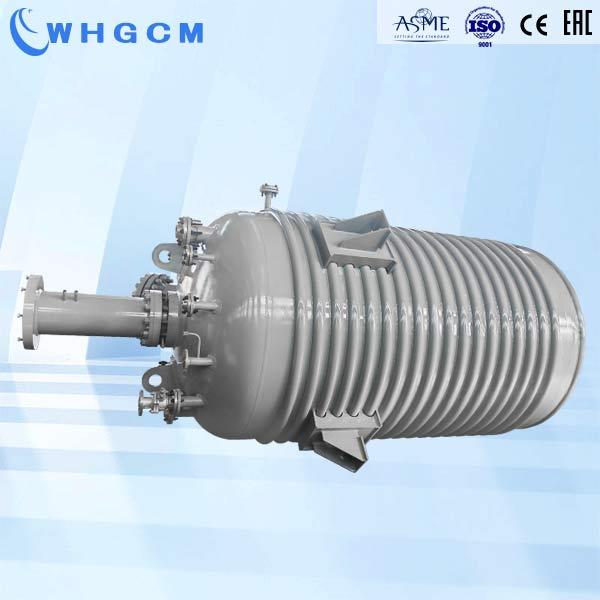

8000 liters Solvent-based acrylic resins reactor with half pipe heating structure ( limpet reactor)

No.00360

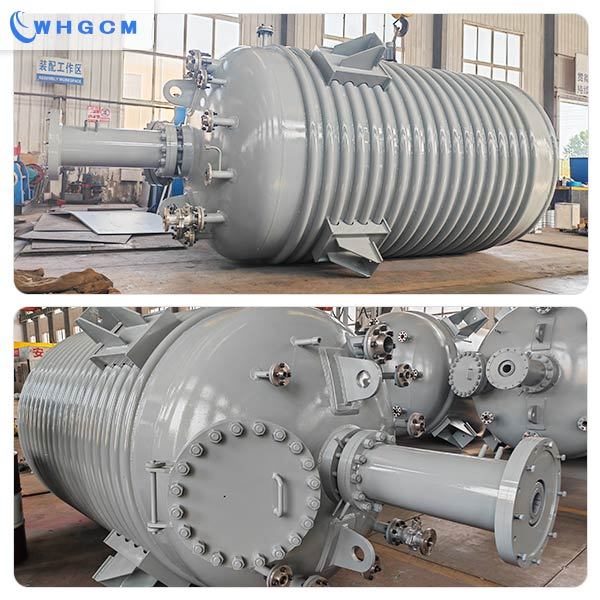

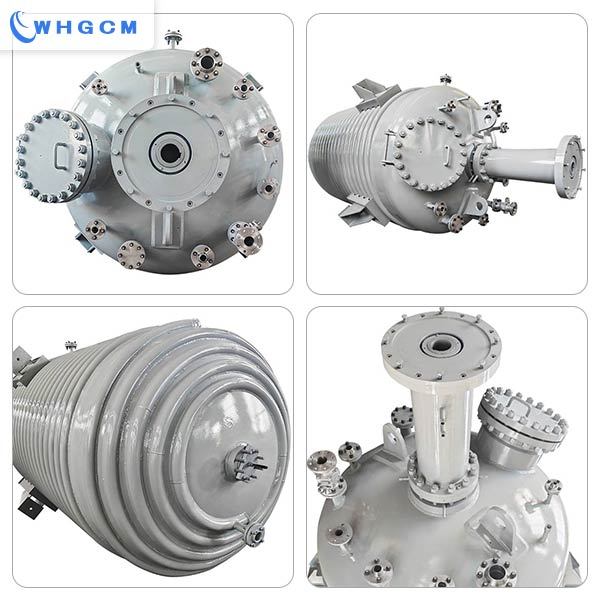

This is an 8,000 liters resin reactor that we designed for an overseas customer in mid-June 2023 and complete production in October, featuring ease of use, simple operation, explosion-proof, and economical pricing.

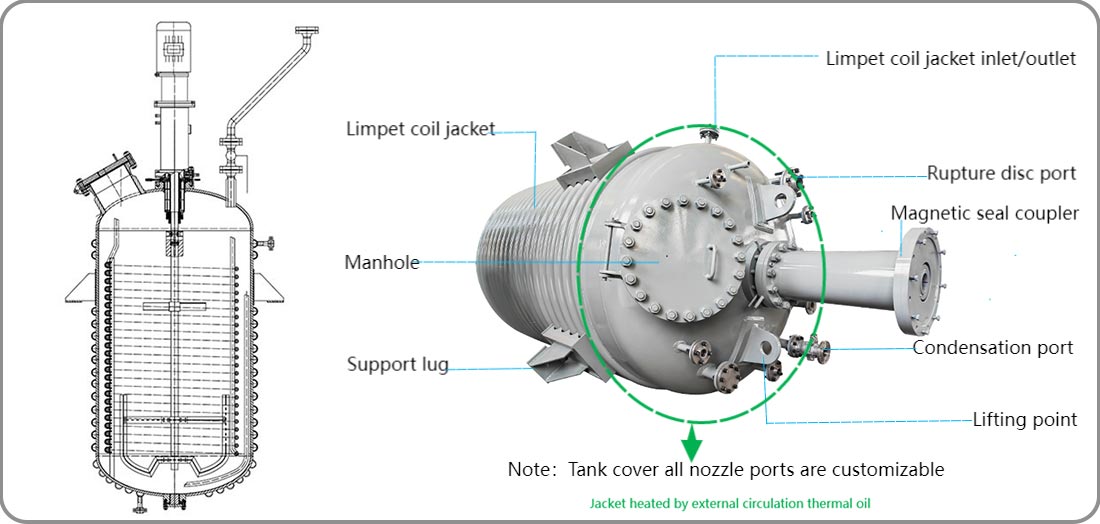

Description

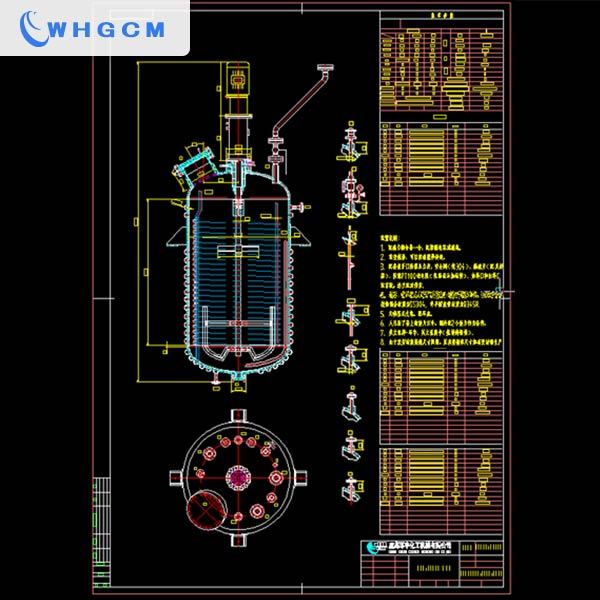

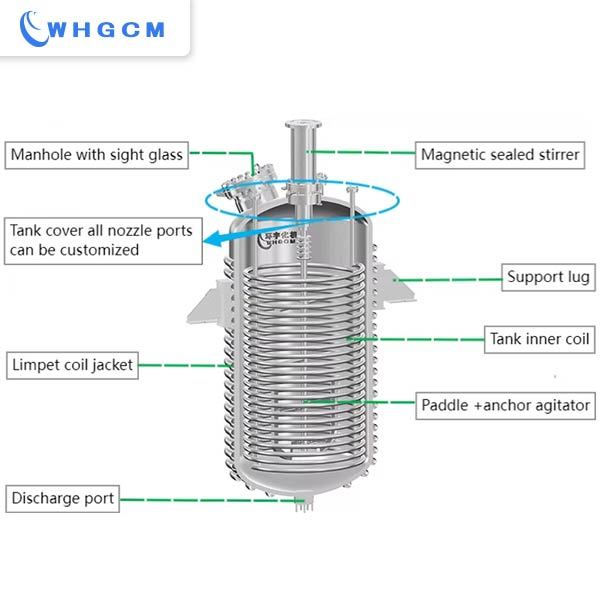

 Configuration instructions:

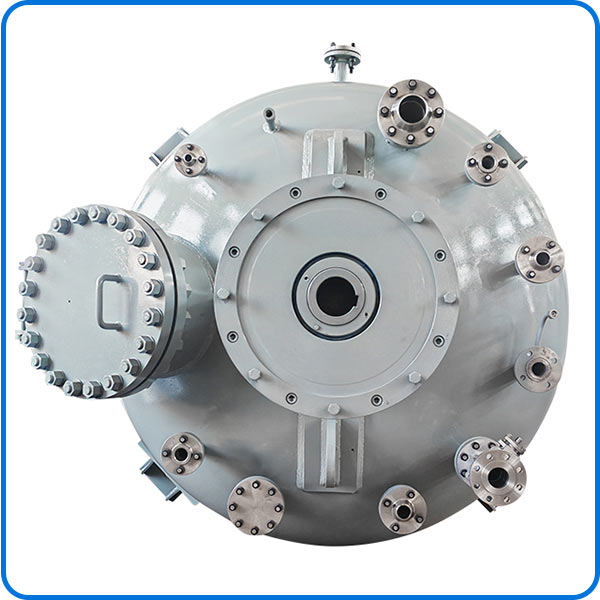

1. with one magnetic coupler, with explosion-proof motor reducer.
2. with frequency converter, can control the stirring speed.
3. material: kettle body and cover is SS304 + Q345R explosion composite plate. The material inside kettle, and parts contact medium is SS304. The welded half pipe coil material is Q345R.
4. With 4 lugs.
5. Power:  380V
6. Double layer stirring paddle.
7. Temperature control system

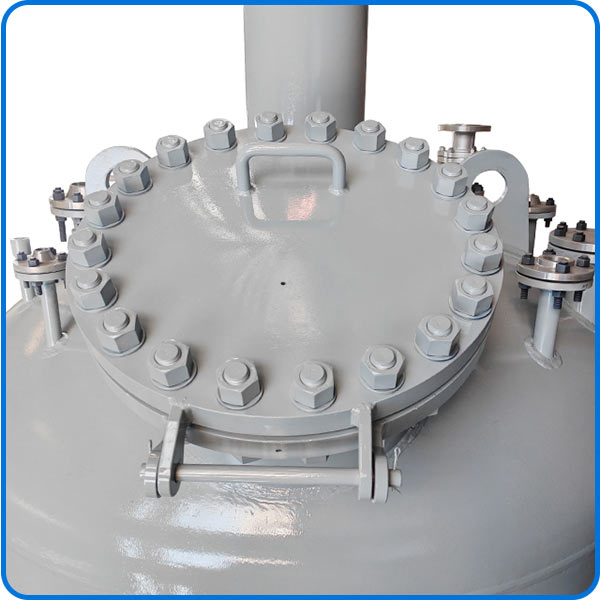

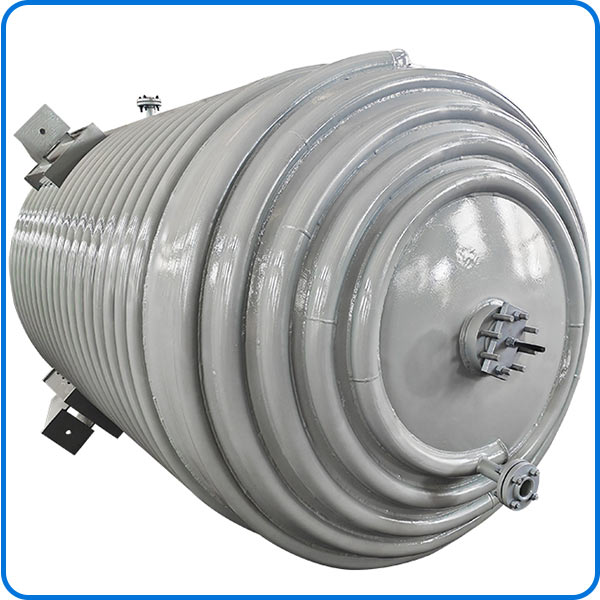

The external welded half-pipe coil is heated by steam;
The internal coil is also heated by steam , or use cooling water for cooling.
8. End Product: solvent-based acrylic resin
9. The following are with explosion-proof feature:
Motor, control cabinet , rupture disc, safety valve, pressure gauge, magnetic stirring, explosion-proof platinum resistor

Full volume 9.8m^3
Working volume 8.0m^3
Dimensions Dia. 2.0m * H 5.8m
 Kettle    Half pipe   Inner coil
 Design Pressure (MPa)  2.0   2.0  2.0
 Working Pressure (MPa)  1.5    1.6  1.6
 Design temperature (℃)   250   250   250
 Working temperature (℃)   200    200    200
 Medium  Resin   Steam   Steam or cooling water
 Material  Q345R+SS304   Q345R   SS304
 Stirring paddle type  Paddle+anchor type
 Shaft seal form  magnetic seal
 Speed  0-80RPM
 Power  22KW

Application: Solvent-based acrylic resins
Reactor advantages:
(1)Using external half-pipe heating, occupying small area and reducing the self-weight of the reactor.
(2)Explosion-proof devices are complete, high operation safety.
(3) The reaction kettle body adopts stainless steel 304 + carbon steel Q345R composite plate, which is characterized by corrosion resistance and cost saving. 304 stainless steel protects against acrylic corrosion.
(4) The internal and external pressure is up to 2.0Mpa, so the reactor is a high-pressure reactor.
(5) Equipped with frequency converter, stirring speed can be controlled.
(6) The stirring paddle adopts the form of double-layer stirring, and the lower layer adopts the anchor frame stirring paddle, which is suitable for the stirring of object materials.
7) The diameter of the pipe mouth and the use are all customized, under the premise of guaranteeing the performance and quality of the reactor, it can be customized according to the requirements of customers.
(8) The discharge port has an insulation structure to ensure that the material will not condense during the discharge process.
(9) Magnetic stirring shaft sleeve is adopted to ensure high sealing, which prevents leakage of reaction materials on one hand and has good explosion-proof effect on the other hand.
(10)The melting point and boiling point of acrylic resin are around 100℃, and the temperature adjustment range of this reactor can fully meet the demand.
