00617
| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 5 | ||
| 3 | Design pressure（MPa） | 3 | ||
| 4 | Work pressure（MPa） | 2.5 | ||
| 5 | Design temperature（℃） | 280 | ||
| 6 | Work temperature（℃） | 250 | ||
| 7 | Material | SS304 lined with TA2 | ||
| 8 | Stirring speed | 0~400 | ||
| 9 | Motor power (W) | 550（dIIBT4） | ||
 |

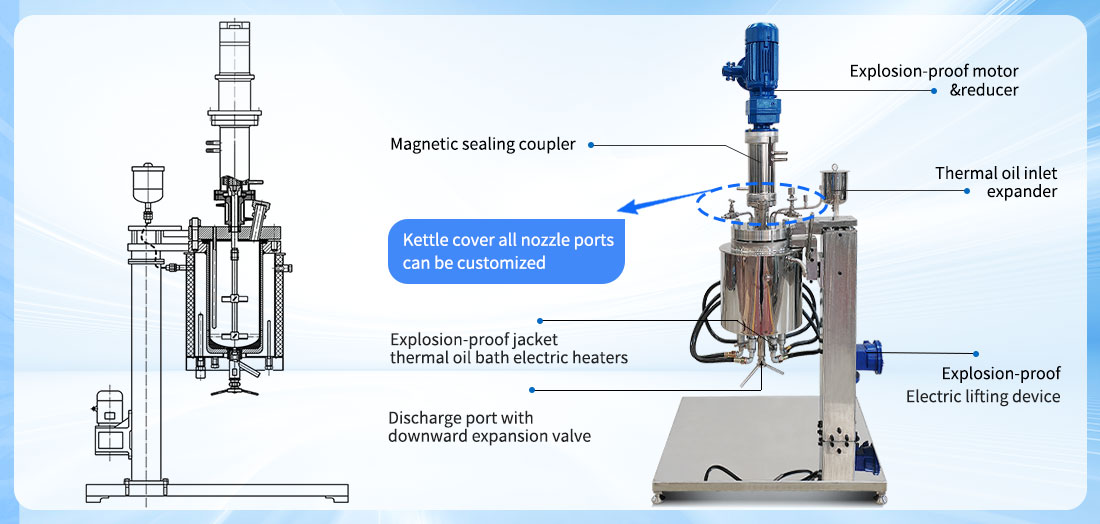

Kettle cover nozzle ports Reactor cover opening need all nozzle ports are as customized ,such as pressure gauge & rupture disc, Solid-gas-liquid phases feeding port, and vent port etc. Reactor body - Most of the material of this reactor is SS304 lined with TA2,can meet the corrosion resistence of the application. - The reactor is open type, which is suitable for the electric lifting device to open. |
| Explosion-proof electric lifting device -Kettle cover up & down electrically lifted -Safe and reliable |
 |
 |
Heating type -Explosion-proof jacket thermal oil bath electric heaters with Ex-operation column -Tank bottom with discharge port with downward expansion valve The black box in left picture is the Ex proof case of the cables, it could stop the electrci sparking happening. |
