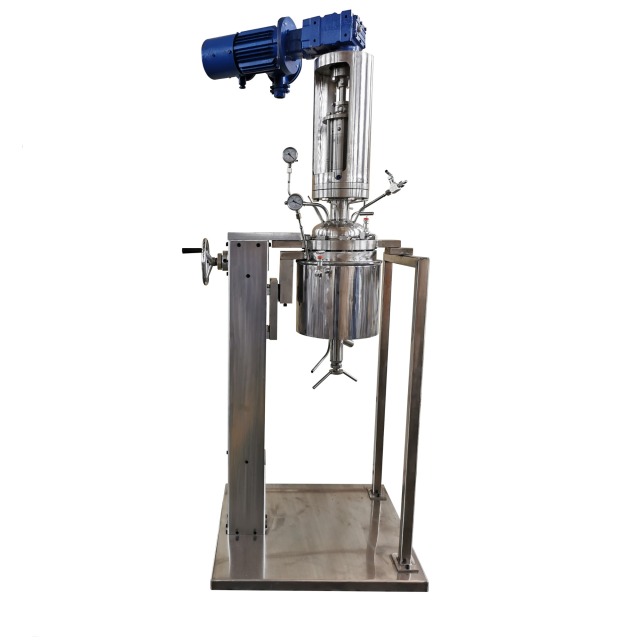

5L mechanical seal lab reactor with lifting device

No.00275
This is reactor for the experiment application that isn't required high sealing effort. So, it is using mechcanical seal shaft sleeve. Because of the high stirring speed requirement, the motor power for this reactor is higher than usual 5L reactors.
Description
Type Structure Design temperature Stirring speed Heating power Discharging type Mixing style Contact material Controller
FCH5AOA316DY001 open 0 °C~600°C N/A 1~3KW Top Anchor Stainless steel 316L PID
Volume  Design pressure Motor Motor power Heating type Mixer shaft Seal type Kettle lid open port Other accessories
5 L Negative pressure ~20 Mpa AC motor 500W electric heater with thermal oil bath Self-lubricating wear-resistance sleeve made of stainless steel mechanical seal  Burst disc(safety valve ) port, etc lifting device
