  • 5L lab reactor with lifting flipping device
  • 5L lab reactor with lifting flipping device

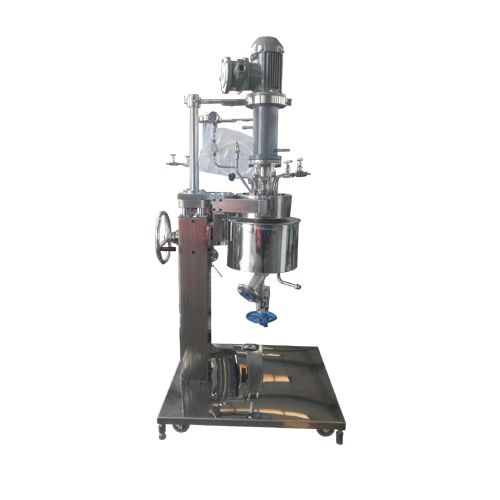

5L stainless steel lab reactor with lifting flipping device ex proof motor

No.00120
The reactor body is made from S304, the other material to contact the medium are all S304. This reactor is manual controlling designed.
$3000.00
Description
Type Structure Design temperature Stirring speed Heating power Discharging type Mixing style Contact material Controller
GSH5PEA304DY001 Customized 0 °C~600°C N/A 1~3KW Top Anchor Stainless steel 304 n/a
Volume  Design pressure Motor Motor power Heating type Mixer shaft Seal type Kettle lid open port Other accessories
5 L Negative pressure ~20 Mpa Explosion-proof motor 125~355W electric Self-lubricating wear-resistance sleeve made of stainless steel Magnetic seal Burst disc(safety valve ) port, etc lifting flipping rack
