5L Hastelloy C-276 high pressure high temperature reactor with condenser devices

No.00414
This lab reactor is designed and made as per the high pressure ( 15 MPa) and high temperature (250 °C ) reaction conditions. It is equipped with condenser devices.
Name Kettle Coil
Working volume 5L
Design pressure 15MPa 0.6MPa
Design temperature -20~250 ℃ -20~250 ℃
Material Hastelloy C276 Hastelloy C276
Agitator Anchor type
Heating type Thermal oil electric heating
Motor power 550W(dIICT4)
Seal type Magnetic seal
Description

Description picture of the reactor
Picture of Product Intorduction title

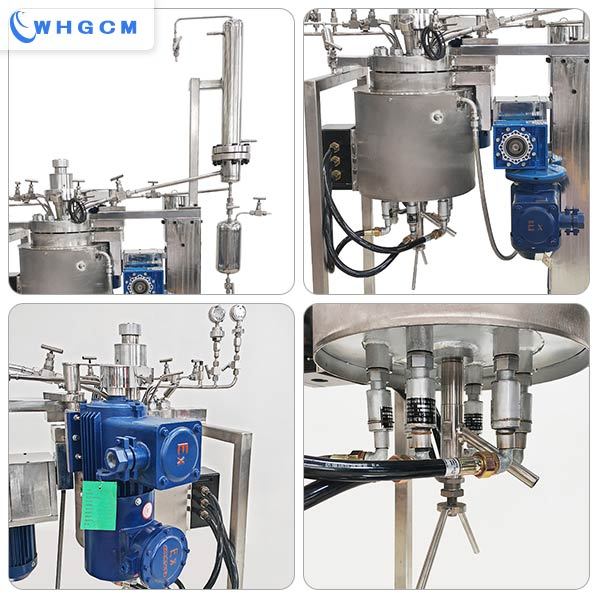

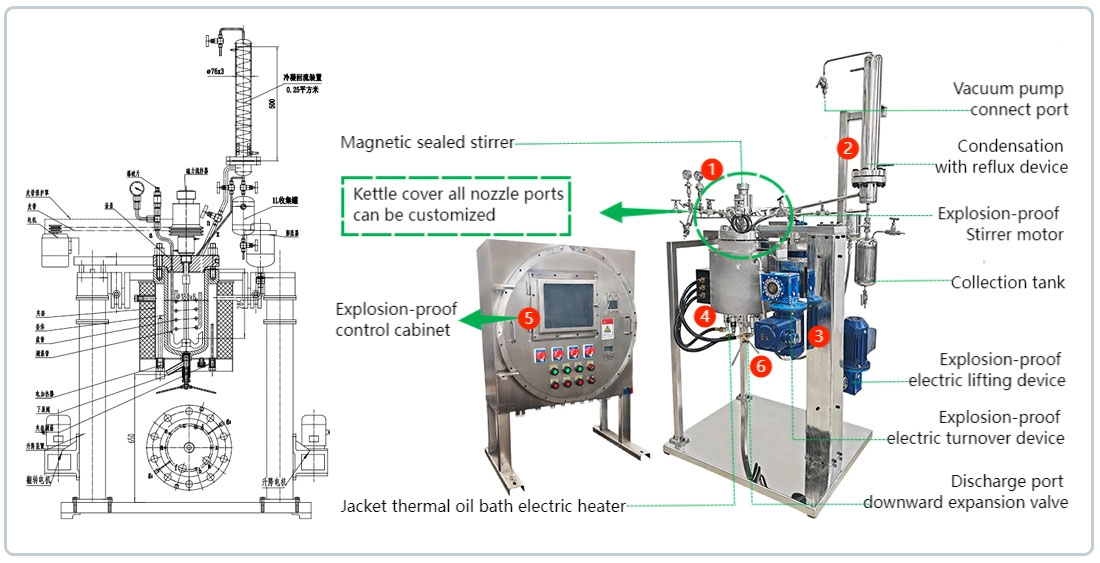

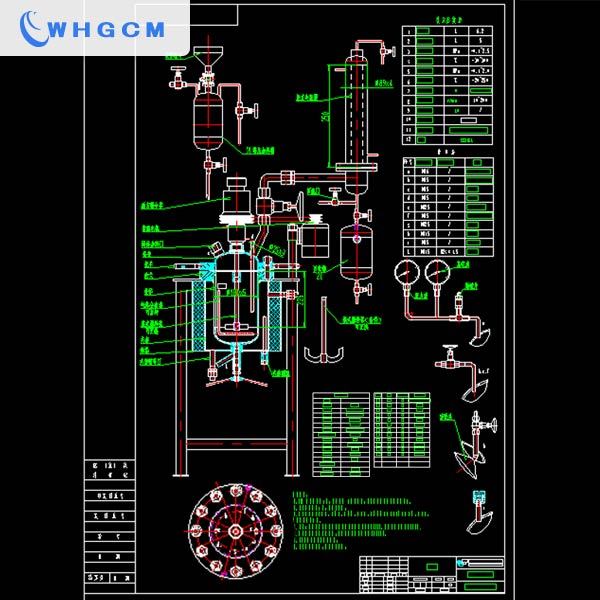

The drawing and photo of the equipment showing the structure
Picture of Product Features subtitle

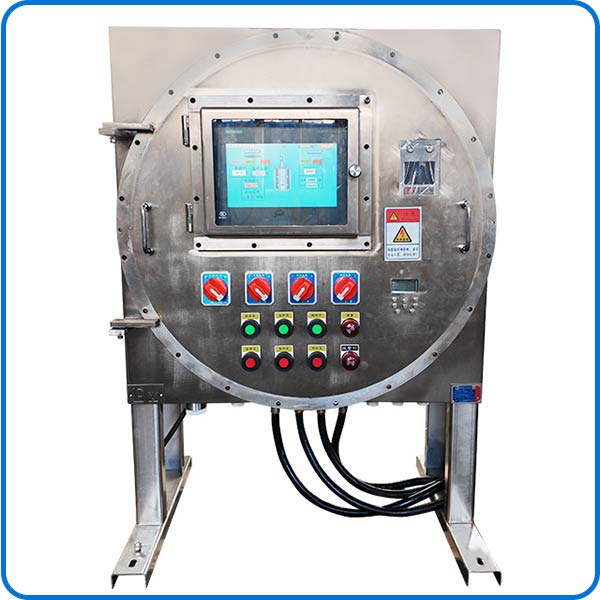

photo of carbinet
  • Explosion-proof control cabinet with touch screen

  1. The reactor is equiped with Siemens PLC controller, which has touch screen , host software, and ABB VFD.
  2. The stirring speed, current of motor, temeprature, heating program, and pressure are monitored and controlled by this PLC controller.
  3. The housing and electronic joint parts are made as per Ex-proof standard.
  • Flat type kettle cover with customized nozzle ports
  1.  High sealing effect devices including magnetic sealing shaft sleeve, ex-proof motor, and flanges are applied.
  2. Together with the hastelloy burst disc, ex proof PT100  platinum, and ex-proof pressure sensor, they could ensure the reactor's Ex-proof feature.
  3. The material of kettle cover is Hastelloy C-276, as well as the other parts' material that to contact the medium.

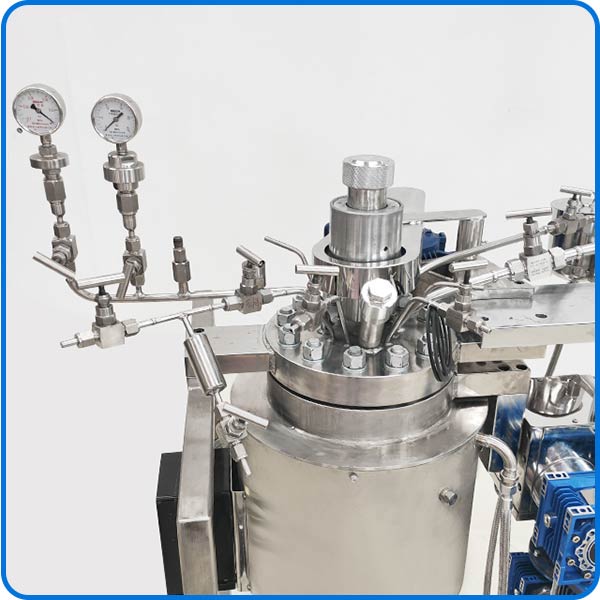

photo of top view of the reactor

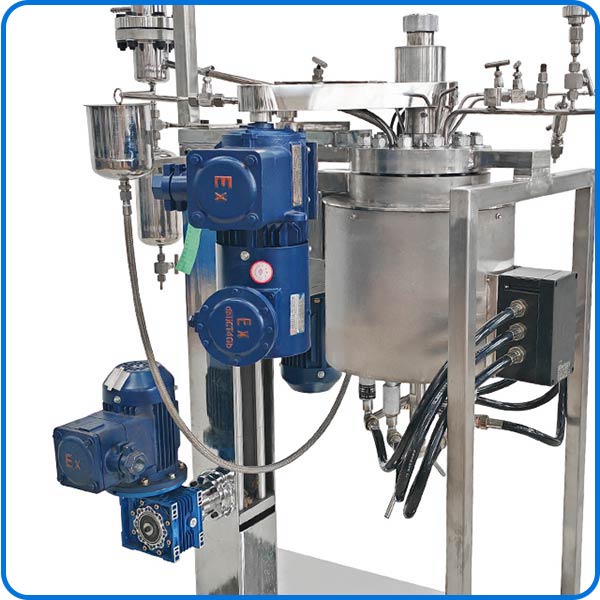

photo shows the electric lifting device of the reactor
  • Electric lifting and flipping device

  1.  An electric lifting device is applied for labor-saving purposes.
  2. The motors are all explosion-proof type.
  3. The lifting motor drives the screw bars inside the rack pole, which can make the kettle move up and down with the help of gears and bearings.
  • Kettle inner structure

  1. The kettle of the reactor and other parts that contact with the medium are Hastelloy C-276, which promises a high corrosion resistance of the reactor.
  2. The agitator is anchor type, which is suitable for solid material strirring.
  3. The paddle is bolted on the shaft, so it is avaiable to change to any other types of paddles you like.

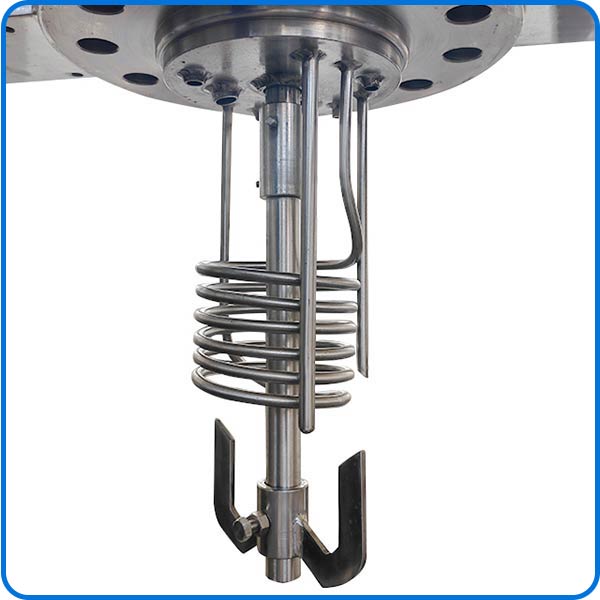

Photo of parts inside the reactor

Piture of product specification lable

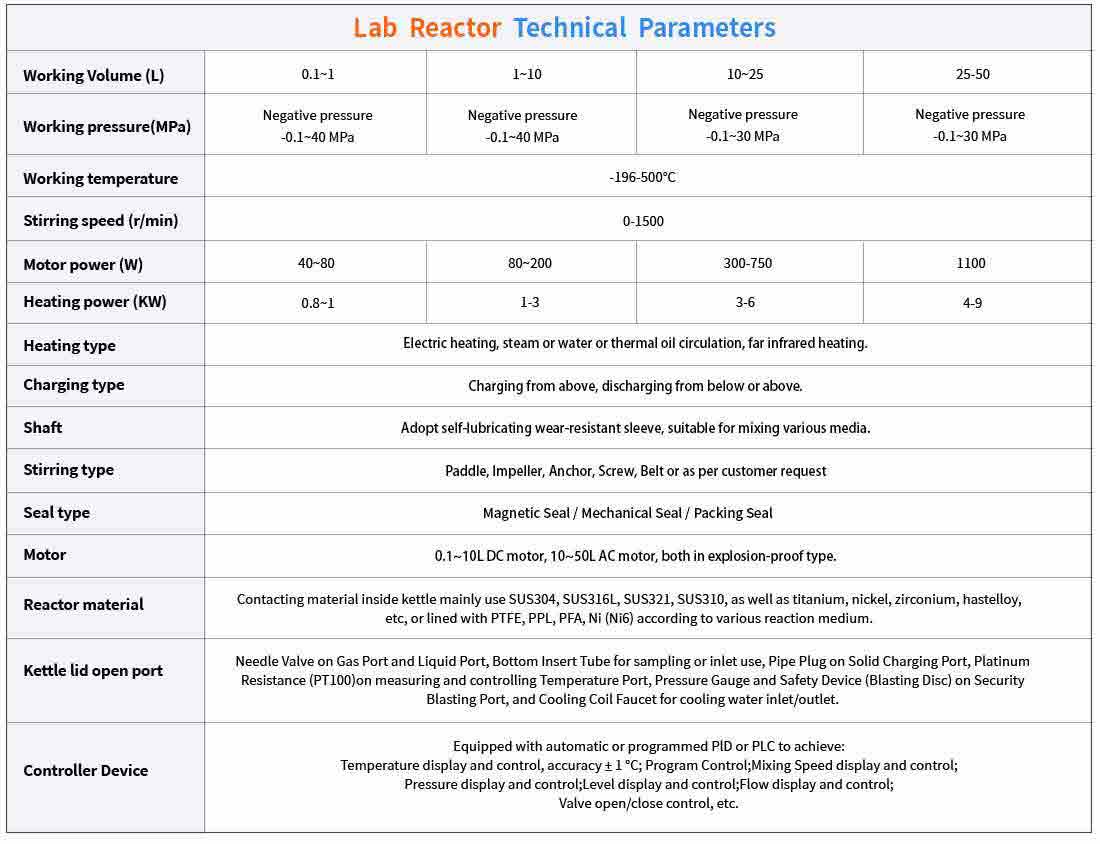

Specifiction form of the lab reactors
photo of optional accessories
Picture of Manufacturing Capacity title
Weihai Global Chemical Machinery MFG Co., Ltd.( WHGCM ) is a customized chemical reactors manufacturer based in China. It has been established since 2010 with the enrolled capital of the organization is 30 million CNY ( 4.4 Million USD)...
For more details please check here for the Company Profile.
Picture shows the Customers and casesPicture shows the Testing Equipments

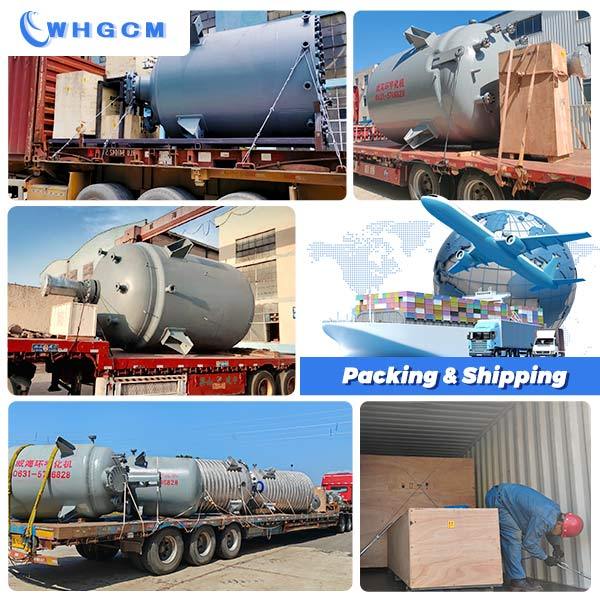

Picture shows the Packing & shipping site
