| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 60 | ||
| 2 | Work volume（L） | 50 | ||
| 3 | Design pressure（MPa） | 11.5 | ATM | |
| 4 | Work pressure（MPa） | 10 | ATM | |
| 5 | Design temperature（℃） | 300 | 300 | |
| 6 | Work temperature（℃） | 250 | 250 | |
| 7 | Material | SS31L+Q345R，16Mn | Q345R | |
 |

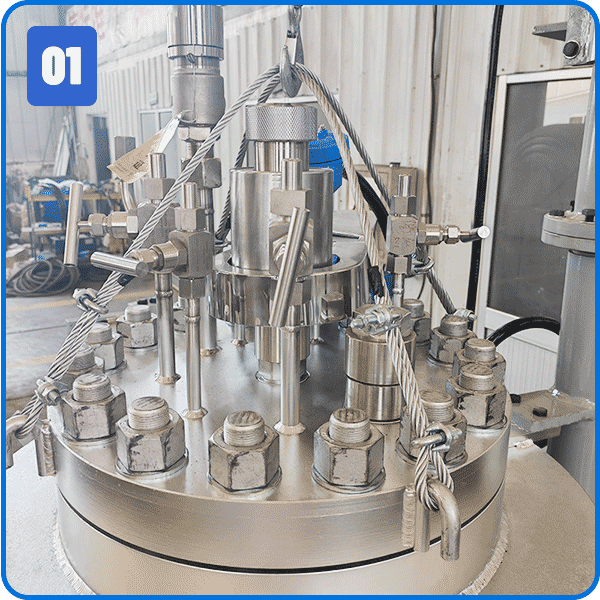

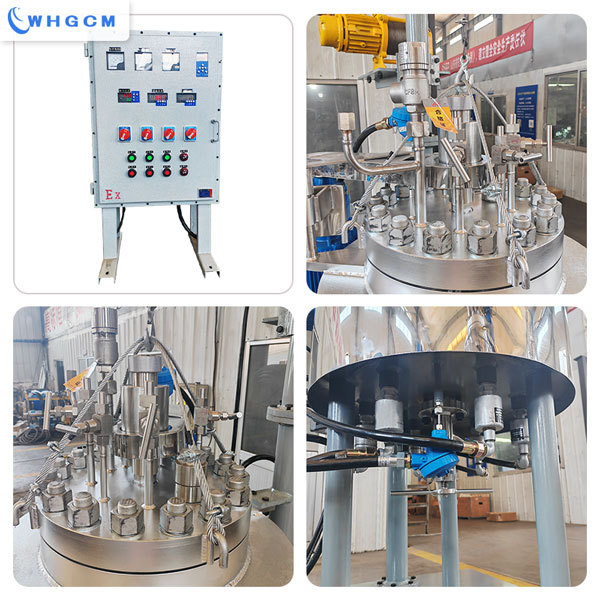

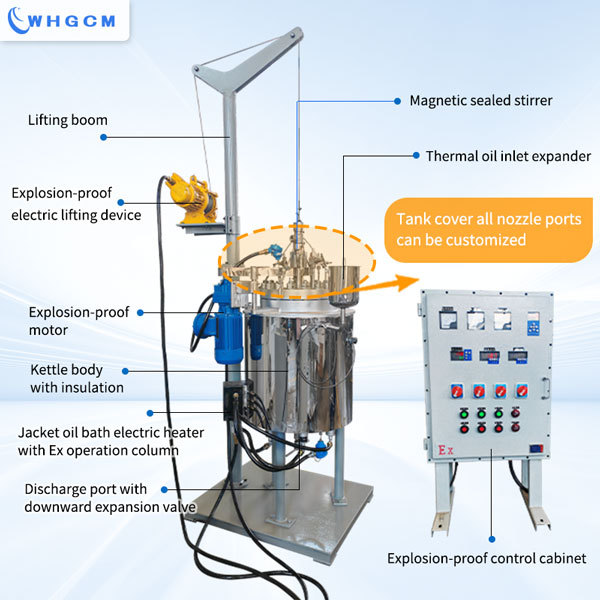

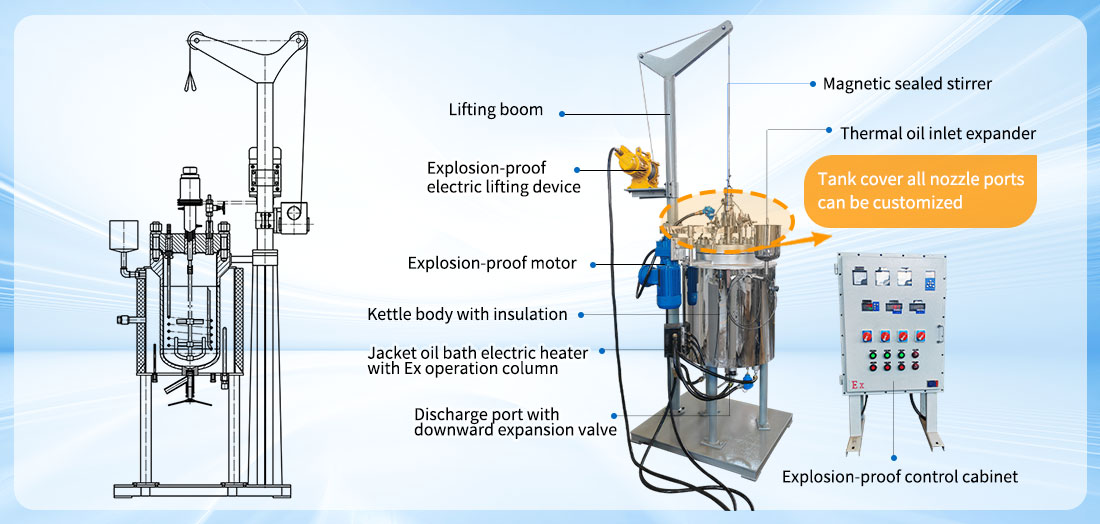

Kettle cover nozzle ports Reactor cover opening need all nozzle ports are as customized ,such as pressure gauge & thermometer, Solid-gas-liquid phases feeding port, and vent port etc. |

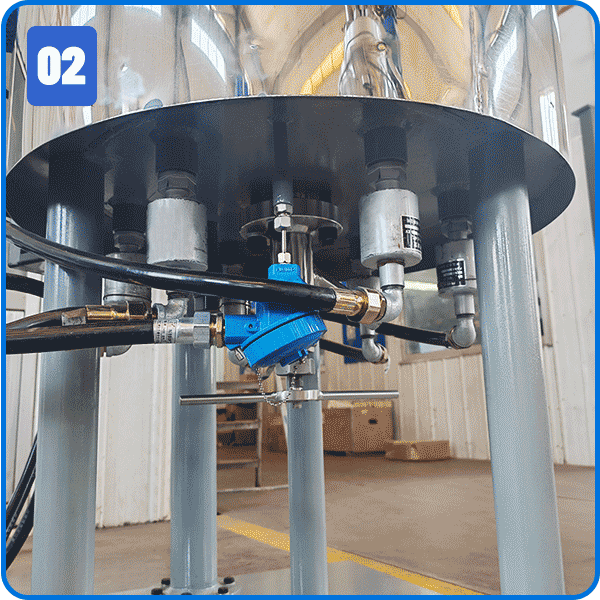

| Tank bottom -Discharge port with downward expansion valve -Feeding port with blind -Jacket temperature measuring -Jacket drain port Heating type -Ex-proof jacket thermal oil electric heating |
 |
 |

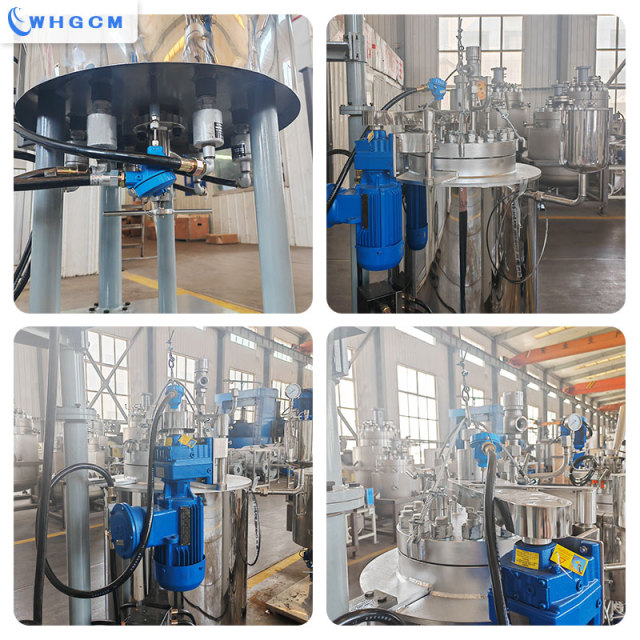

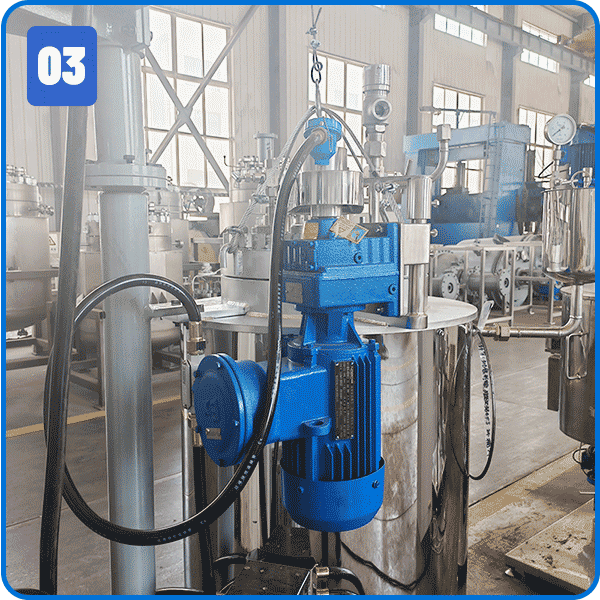

Ex Stirrer motor -Side-pull mounted -Explosion-proof dIIBT4 grade -With belt guard cover -The quality is stable and reliable |
