| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 68 | ||
| 2 | Work volume（L） | 50 | ||
| 3 | Design pressure（MPa） | 2.5 | 0.5 | |
| 4 | Work pressure（MPa） | 2 | 0.4 | |
| 5 | Design temperature（℃） | 200 | 200 | |
| 6 | Work temperature（℃） | 150 | 150 | |
| 7 | Material | SS316L，Q345R | Q345R | |
 |

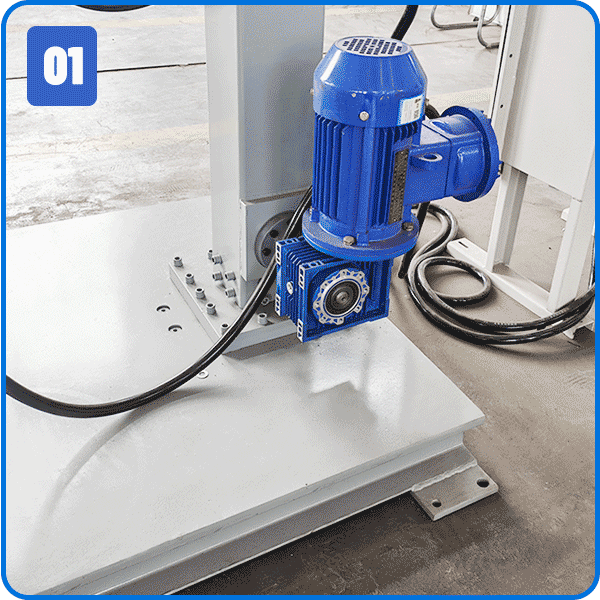

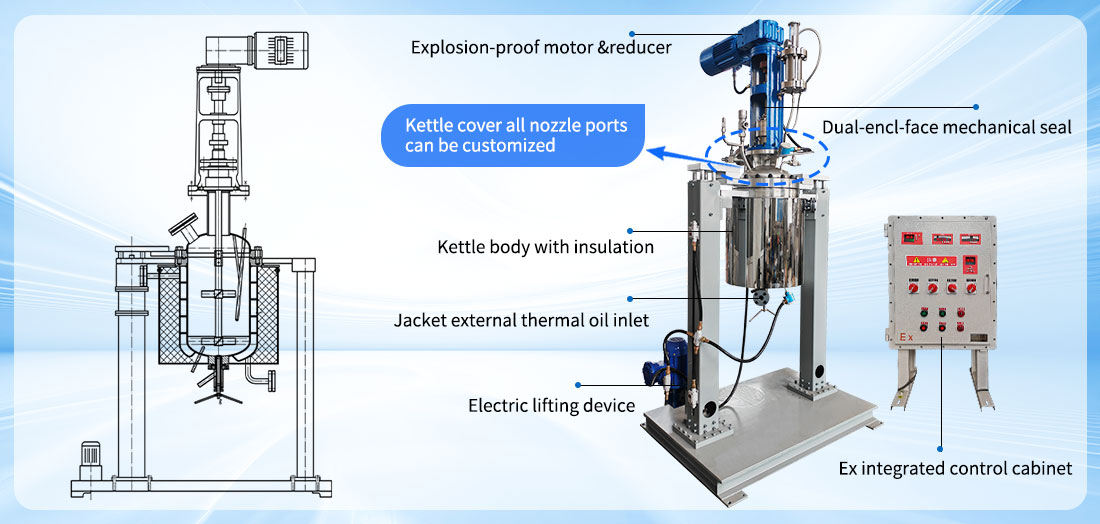

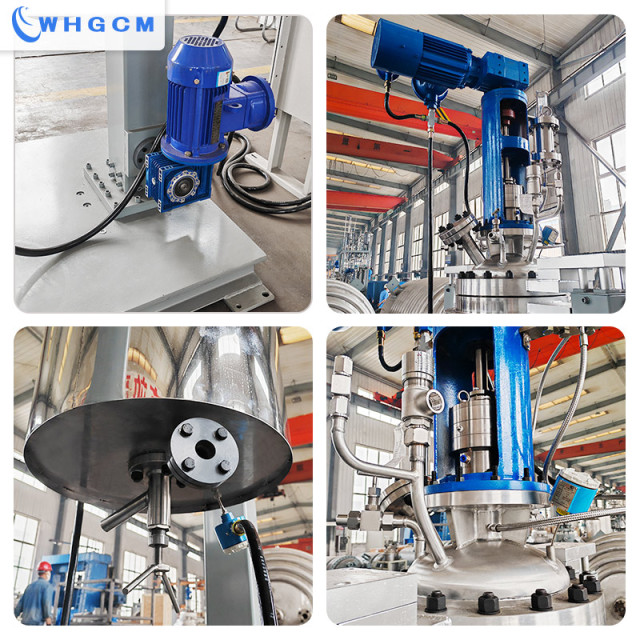

Explosion-proof electrical lifting device -An electric lifting device is applied for labor-saving purposes. -The motors are all explosion-proof type. -Kettle cover up & down electrically lifted -Safe and reliable -The most popular operation assist device for small reactor system. |

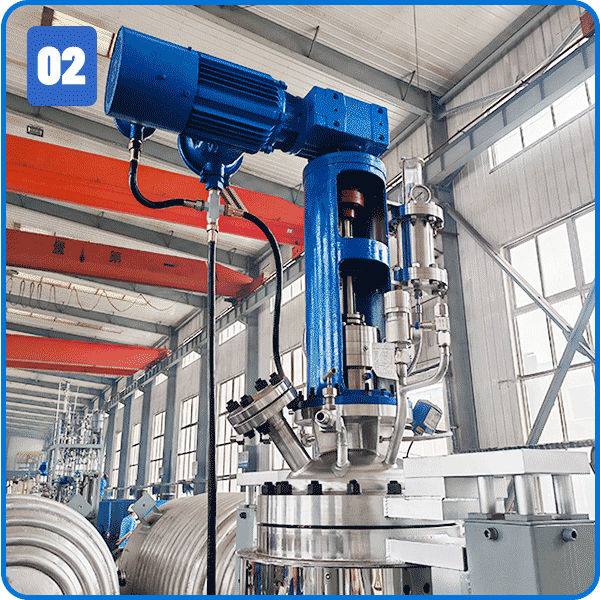

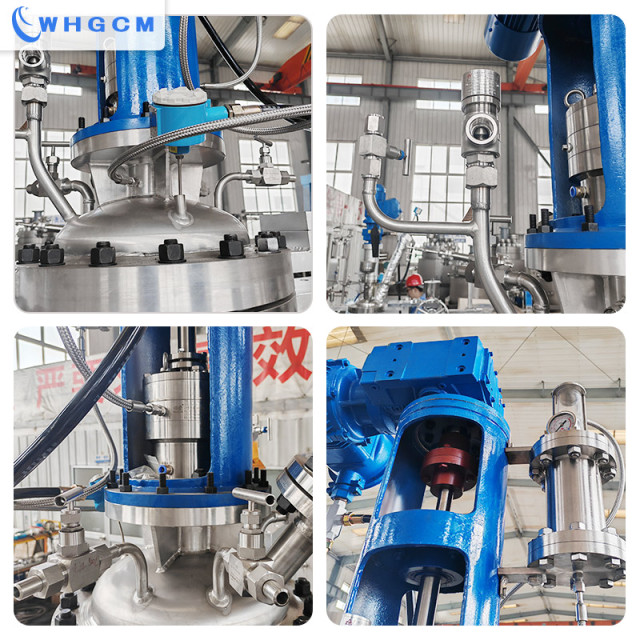

| Mechanical sealed coupler stirrer -Explosion-proof dIIBT4 grade -Mechanical sealed stirrer -With pressure balancing tank Kettle cover nozzle ports -Material feeding port -Tank inner temp measuring ports -Pressure gauge/safety valve port -Jacket thermal oil electric heater ports Note: all nozzle ports & fitting type can be customized |
 |
 |

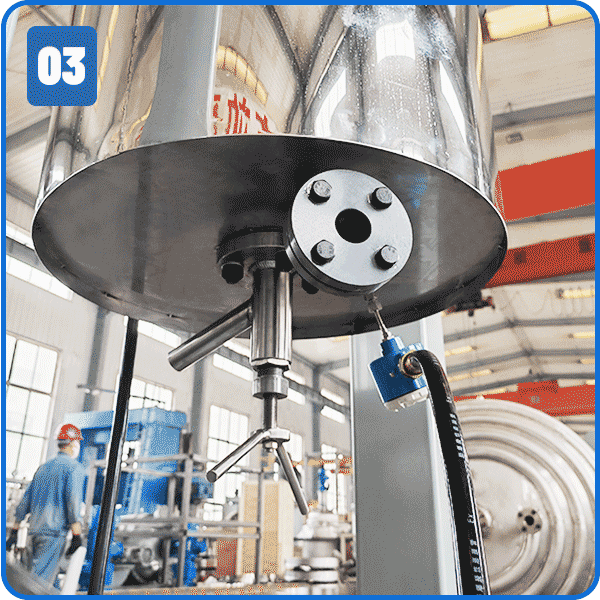

Kettle bottom -Jacket circulation inlet -Discharge port with upward expansion valve The shape of bottom head could be customized too. |
