| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 3.7 | ||
| 2 | Work volume（L） | 3 | ||
| 3 | Design pressure（MPa） | 12.5 | ||
| 4 | Work pressure（MPa） | 10 | ||
| 5 | Design temperature（℃） | 350 | ||
| 6 | Work temperature（℃） | 220~250 | ||
| 7 | Material | SS304 lined with TA2 | ||
| 8 | Stirring speed | 0-1200 | ||
| 9 | Motor power (W) | 355W | ||
 |

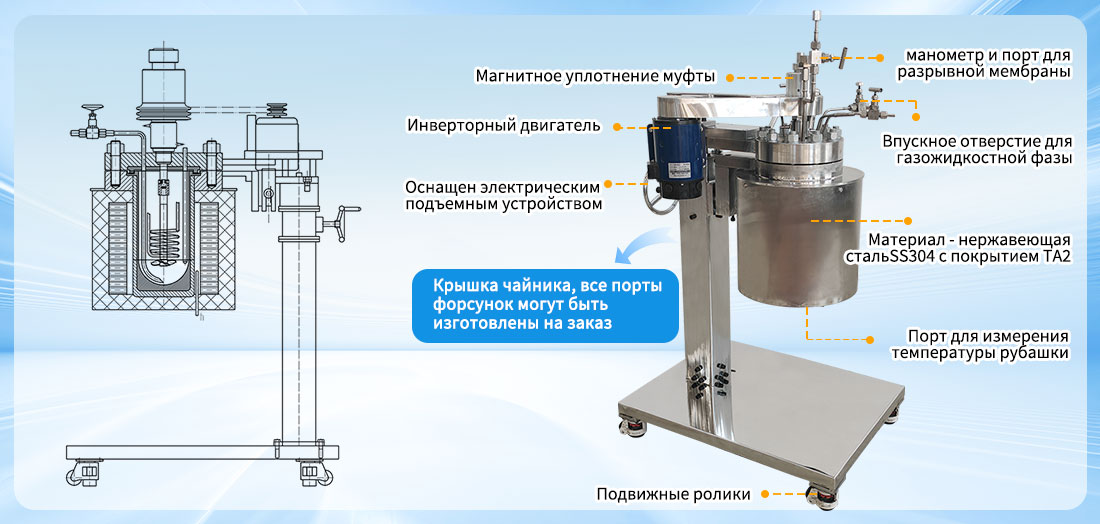

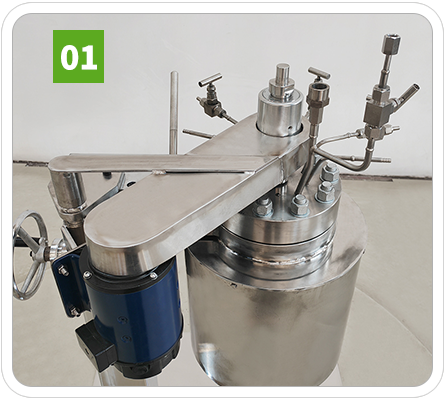

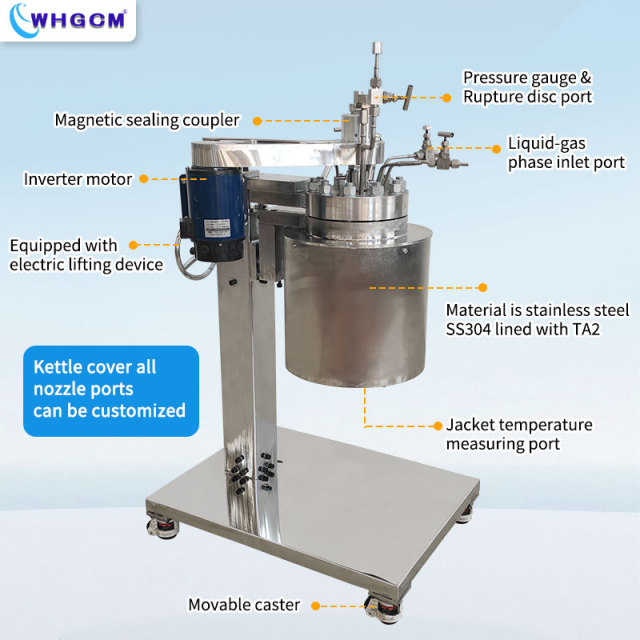

Motor -Side-pull mounted
-With belt guard cover
-The quality is stable and reliable
Magnetic sealed stirrer coupler -Core technology: Static sealed,magnetic transmission
-100% ZERO leakage
-Coupler inner with cooling system, avoid coupler inner overheating
|

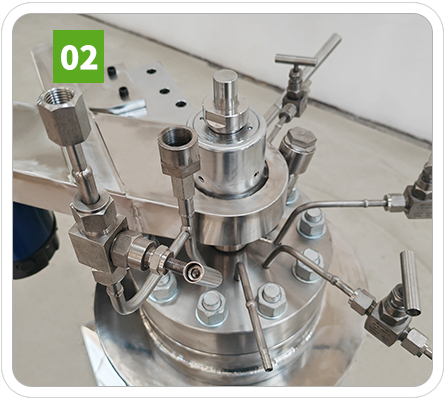

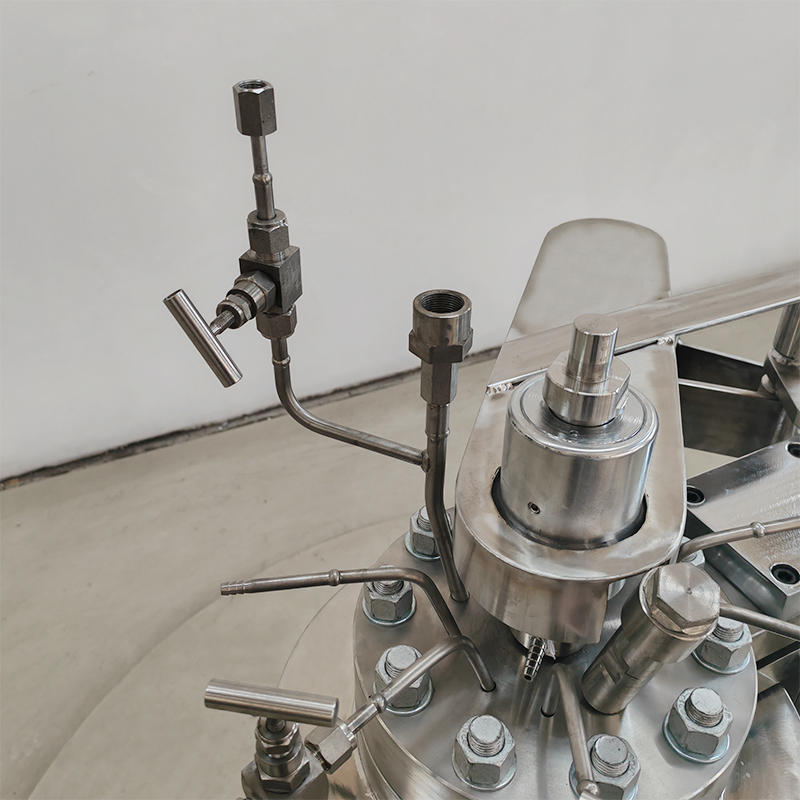

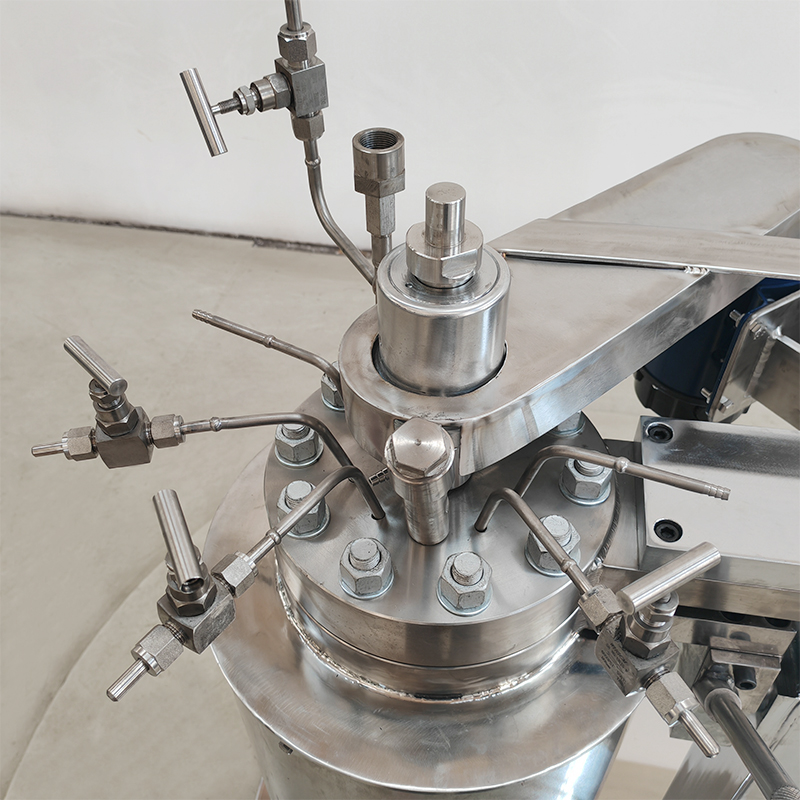

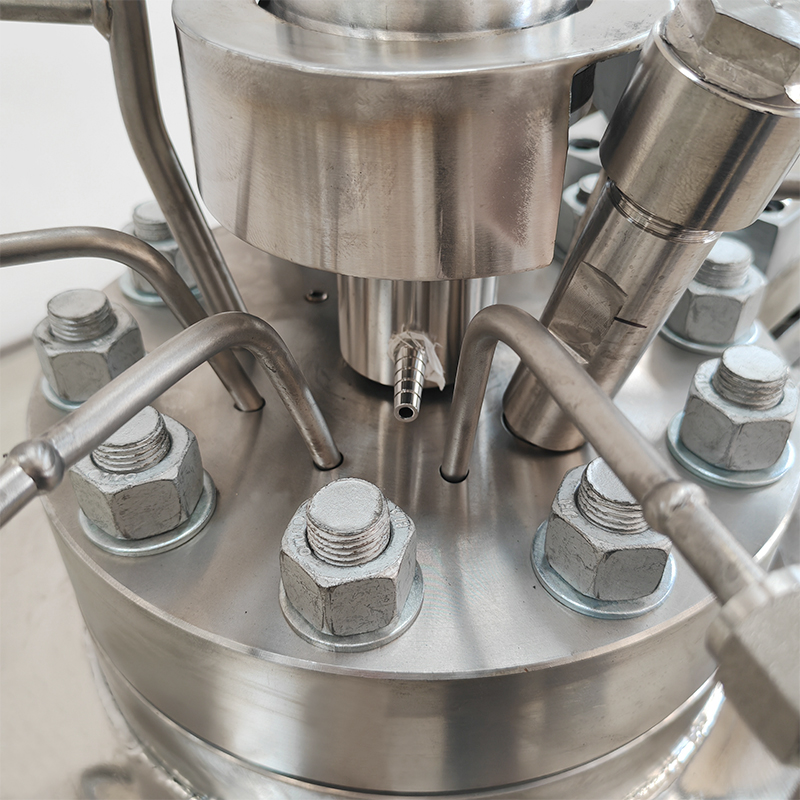

Kettle cover nozzle ports
-Pressure gauge & Rupture disc port
-Jacket temperature measuring port
-Material feeding ports -Coil inlet/outlet port
-Vent port -liquid-gas phase inlet port
Note: all nozzle ports can be customized |
 |
||
 |
 |
 |
 |
 |

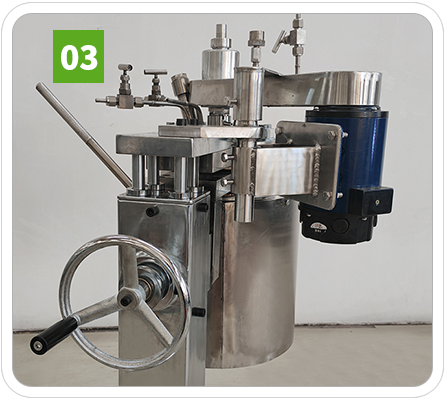

Manually lifting device
This reactor design with manually lifting device and manual turn over handle.
|
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25-50 |
| Working pressure |
Negative pressure -0.1~40 MPa
|
Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa |
| Working temperature | 0-1500℃ | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power (KW) | 0.8~1 | 1-3 | 3-6 | 4-9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Charging type | Charging from above, discharging from below or above. | |||
| Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal. | |||
| Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. |
|||
| Controller Device |
Equipped with automatic or programmed PlD or PLC to achieve:
Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control;
Flow display and control; Valve open/close control, etc.
|
|||
