| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 2 | ||
| 3 | Design pressure（MPa） | 6 | ||
| 4 | Work pressure（MPa） | 4 | ||
| 5 | Design temperature（℃） | 160 | ||
| 6 | Work temperature（℃） | 100 | ||
| 7 | Material | SS316L | ||
| 8 | Stirring speed | 0~600 | ||
| 9 | Motor power (W) | 370（DIIBT4） | ||
 |

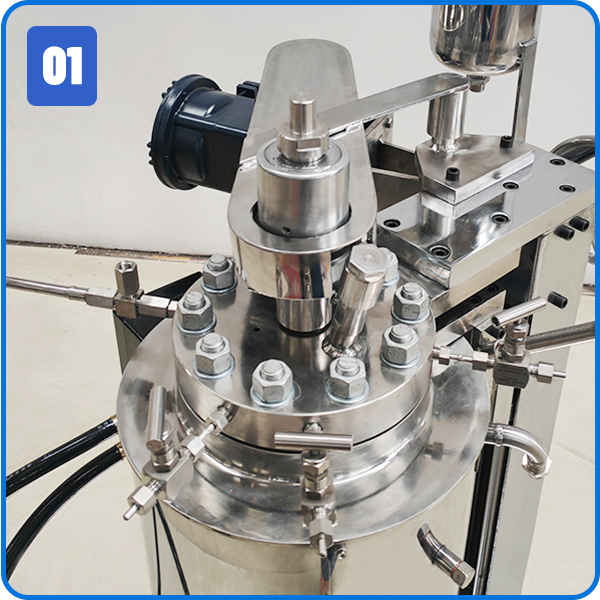

Kettle cover nozzle ports -all nozzle ports are customized as the user's requirements -With pressure gauge/rupture disc
-Materials feeding ports
-Tank inner/jacket temperature measuring ports etc.
Note: all nozzle ports & fitting type can be customized
|

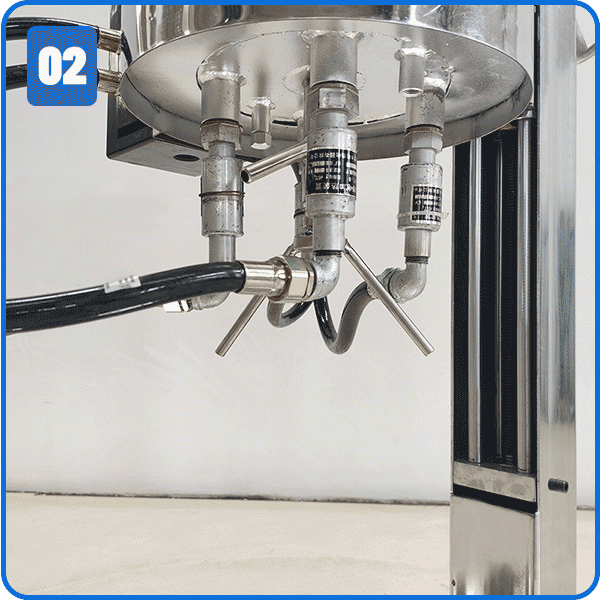

| Tank bottom -Discharge port with downward expansion valve
-Jacket temperature measuring-Jacket drain port Heating type -Explosion-proof jacket thermal oil bath electric heaters with Ex-operation column |
 |
 |

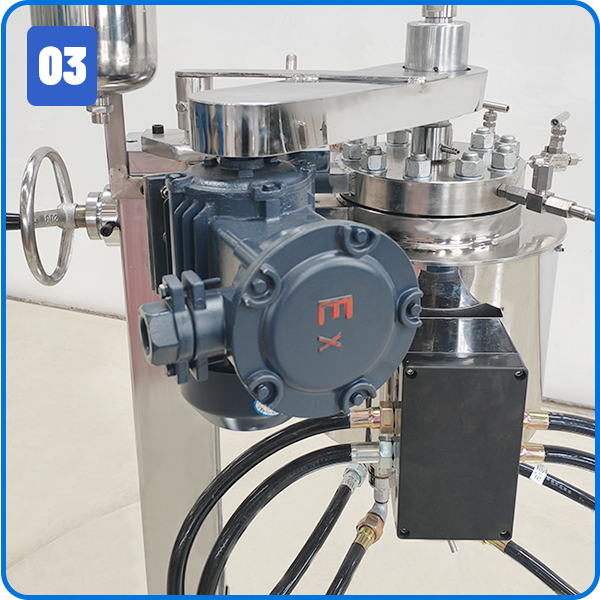

Ex Stirrer motor -Side-pull mounted -Explosion-proof dIIBT4 grade -With belt guard cover -The quality is stable and reliable |
