  • 1L lab reactor made from monel with lifting device
  • 1L lab reactor made from monel with lifting device

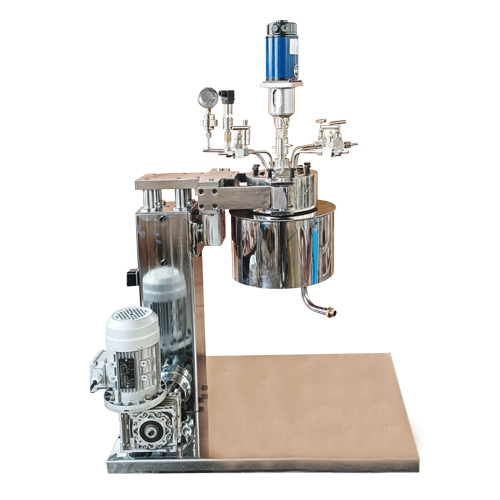

1L Monel lab reactor made from monel with electric lifting device

No.00182
This is lab reactor with electric lifting device that could lift the reactor lid, and flip over the reactor body when the discharging or cleaning is needed.
Description
Type Structure Design temperature Stirring speed Heating power Discharging type Mixing style Contact material Controller
GSH1PEPWMDY001 Customized 0 °C~600°C N/A 1~3KW Top Paddle Monel n/a
Volume  Design pressure Motor Motor power Heating type Mixer shaft Seal type Kettle lid open port Other accessories
1 L Negative pressure ~20 Mpa Explosion-proof motor 125~355W electric Self-lubricating wear-resistance sleeve made of stainless steel Magnetic seal Burst disc(safety valve ) port, etc with lifting device
