| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 2.45 | ||
| 2 | Work volume（L） | 2 | ||
| 3 | Design pressure（MPa） | 2.5 | ||
| 4 | Work pressure（MPa） | 2 | ||
| 5 | Design temperature（℃） | 150 | ||
| 6 | Work temperature（℃） | 100 | ||
| 7 | Material | SS304 lined with TA2 | ||
 |

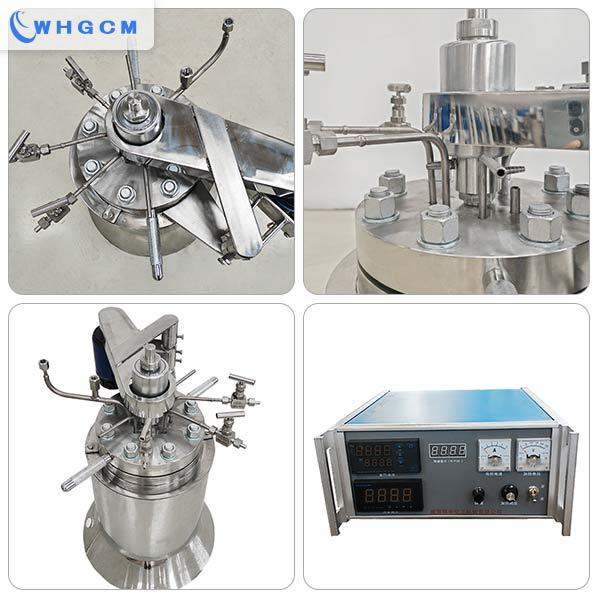

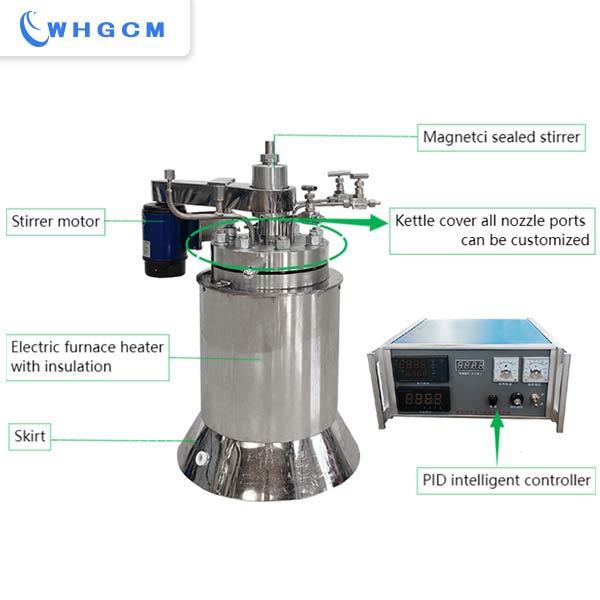

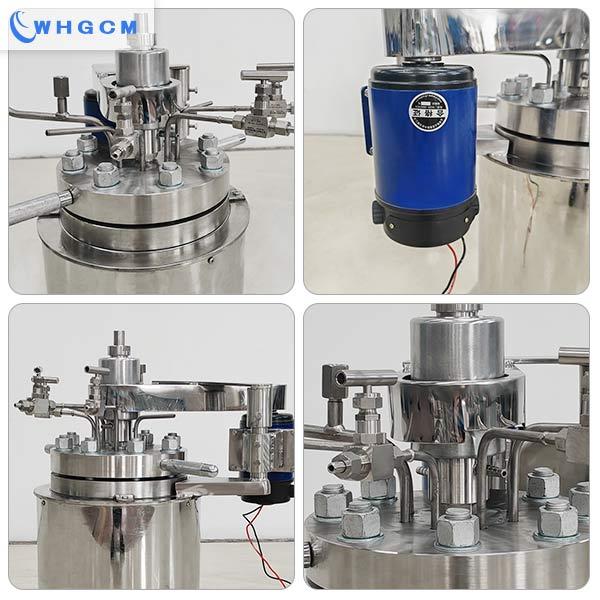

Motor: ᆞ Power:245W. This power could ensure the speed up to 500 RPM for this 2L reactor. ᆞ Aside mounting style: This kind of assembly could leave enough space for the stretched out nozzles. Ports and nozzles: ᆞ The ports are mainly for gas inlet/outlet, thermometer, and pressure measuring. ᆞ The parts that immerse inside the medium are made from Titanium. Inner cooling coils: It is using cool water for cooling. And it is made from titanium pipe. |
|

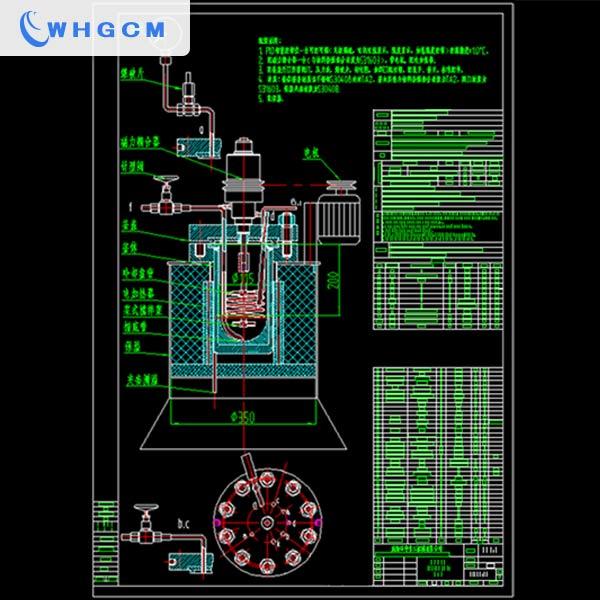

Kettle:
ᆞ Material:
The kettle is using the titanium lined stainless steel S304. The titanium thickness is 3mm, and the thickness of S304 is 8mm.
ᆞ Type:
Open type with main flange.
The flange is made from S304, and the flat lid is surfacing welding with titanium.
Jacket:
The jacket is for heating and insulation at the same time.
ᆞ The heating unit is powered by the electric. It is a kind of electric oven that generate the heat by electric wire.
ᆞ Outside of the oven is the insulation material that fully filled inside the jacket as insulation layer.
|
 |
| Full Volume (L) | Effective volume (L) | Design pressure (MPa) | Working pressure (MPa) | Material | |
| kettle | 2.45 | 2 | 2.5 | 2 | S30408 Titanium lining |
| Design Temperature (℃) | Operating temperature (℃) | stirring mode | stirring speed | heating method | |
| kettle | 150 | 100 | paddle | 0~500 | electric heating |
| Motor power (W) | sealed manner | ||||
| kettle | 245 | magnetic force |
