29L flat head magnetic sealed reaction kettle with manual boom lifting support

No.00374
This flat head magnetic sealed reaction kettle is for lab purposes. The whole system is customized and made as Semi CSTR system. For more info, pls check the detail description.
Description
I Configuration

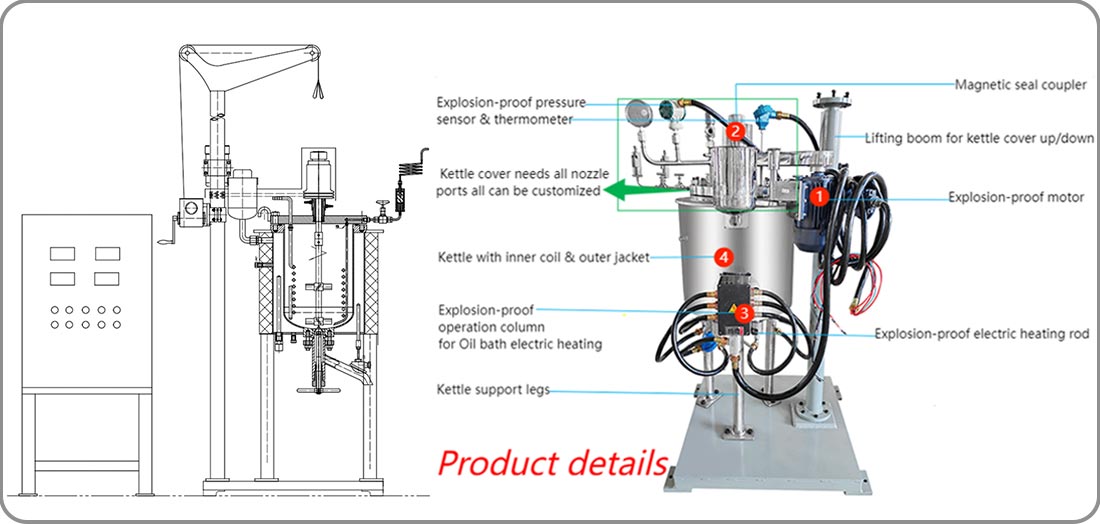

configuration drawing 1, PLC intelligent controller.
   Explosion-proof control cabinet,
   Parameters for the reaction are controllable and adjustable.
   Frequency conversion speed control, motor current display, speed display and control, pressure display, working time display, temperature display, heating temperature control (knob adjustment), reserved 2 electronic scale switch and vacuum pump switch, over-temperature and over-pressure alarm).
   Temperature control accuracy ± 1 ℃.
2, Manual boom lifting support.
   The lifting support is 2.7m in height.
   Material: carbon steel. Corrosion resistance paint coating.
3, 29L reaction kettle.
    Flat head.
    Jacket heating.
    Inner coil cooling.
    side mount motor.
II Detail description
PLC controller PLC controller
Explosion proof.
The functions are customizable.
Easy to control and operate.
Can be connected to host server, and using Smartphone App to control the reaction.
29L reactor Design pressure (MPa)  -0.1 to 1.0.
Working pressure (MPa) -0.1 to 0.4.
Design temperature (℃) 220.
Work temperature (℃) 200.
Material  Stainless steel S31603.
The insulation shell material is stainless steel S30408.
Jacket heating.
The electric heating bars ( with ex-proof feature too) are injected into the ports of the Jacket.
The reactor is supported with 3 legs mounted on a flat metal plane. The lifting boom pole is also mounted on the same flat metal plane.
The flat metal plane is made from carbon steel Q345R.
There are ports for the gauges and meters that required by the reaction.  All of them are customized as per reaction parameters.
