00617
| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 3.5 | ||
| 2 | Work volume（L） | 2.5 | ||
| 3 | Design pressure（MPa） | 2.5 | ||
| 4 | Work pressure（MPa） | 0.8 | ||
| 5 | Design temperature（℃） | 200 | ||
| 6 | Work temperature（℃） | 100 | ||
| 7 | Material | S31603 | ||
 |
 |
Temperature ajusting parts：
|
Parts for gas phase:
|
 |
 |
| Explosion proof features of the parts: Due to the flammalbe property of the hydrogen, the explosion proof feature is an very important characteristic for the hydrogenation reactor.
|
The pressure required by hydrogenation:

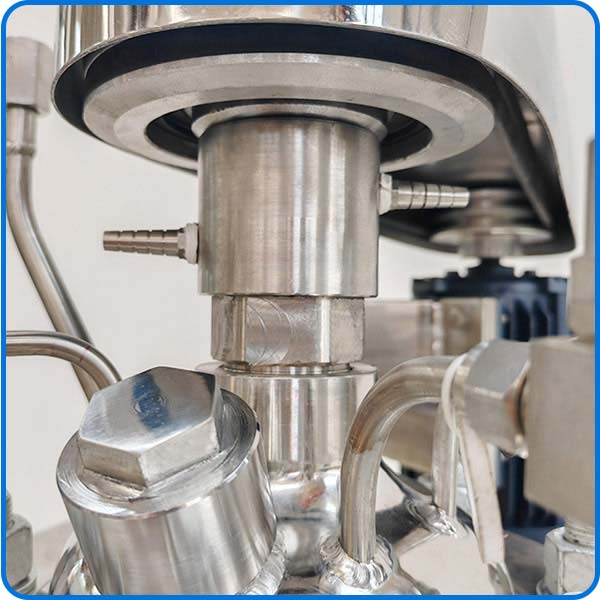

The coupler is used to connect the driving shaft and stirring shaft. Thanks to the principle of magnetic sealing, there is no leakage of this kind of sealing. So, it is widely used for the producing of hydrogenation reactors. |
 |

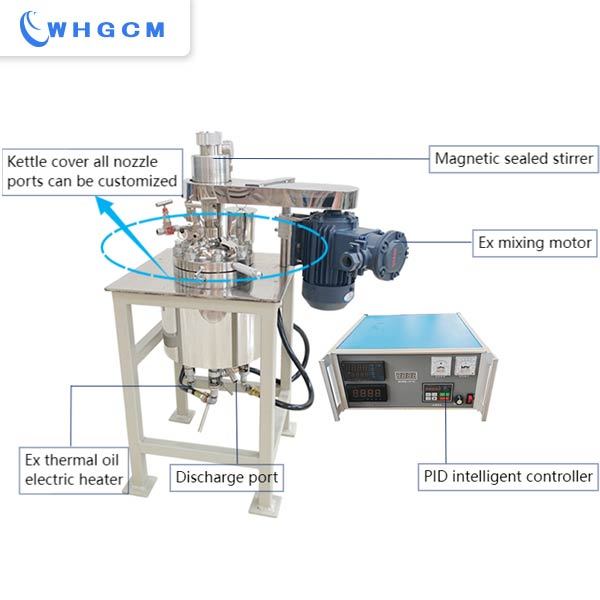

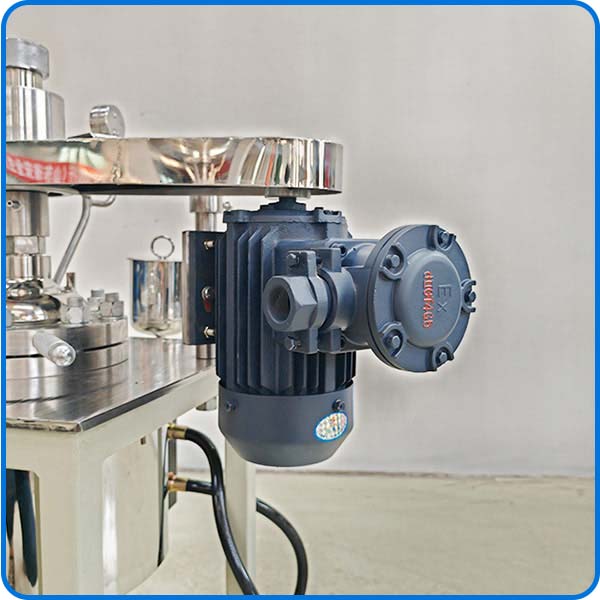

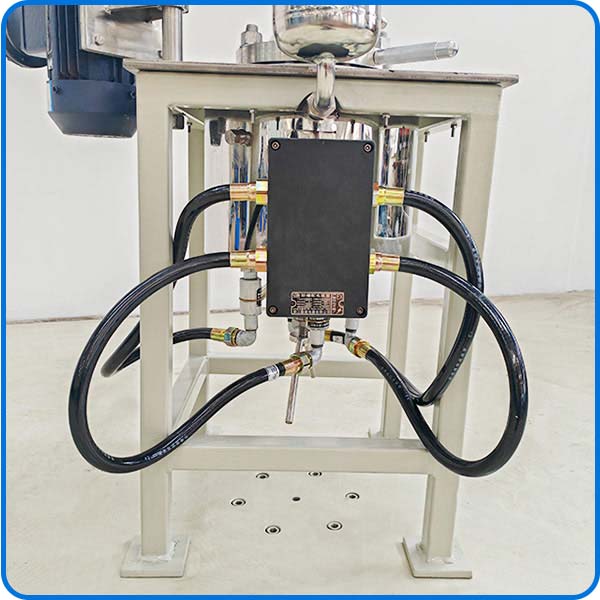

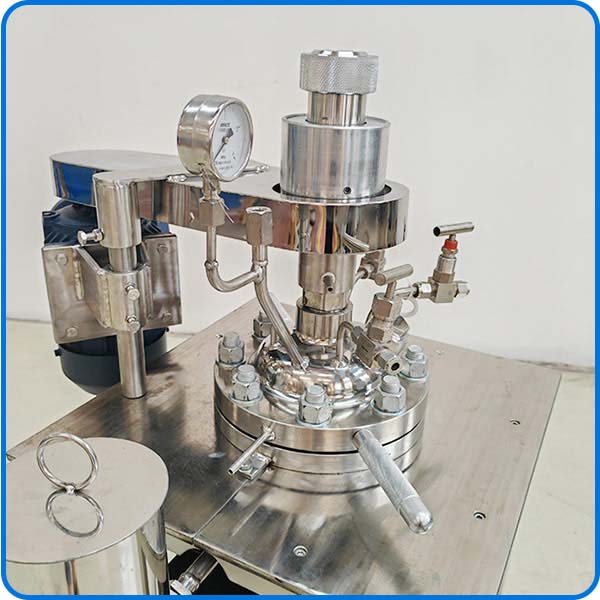

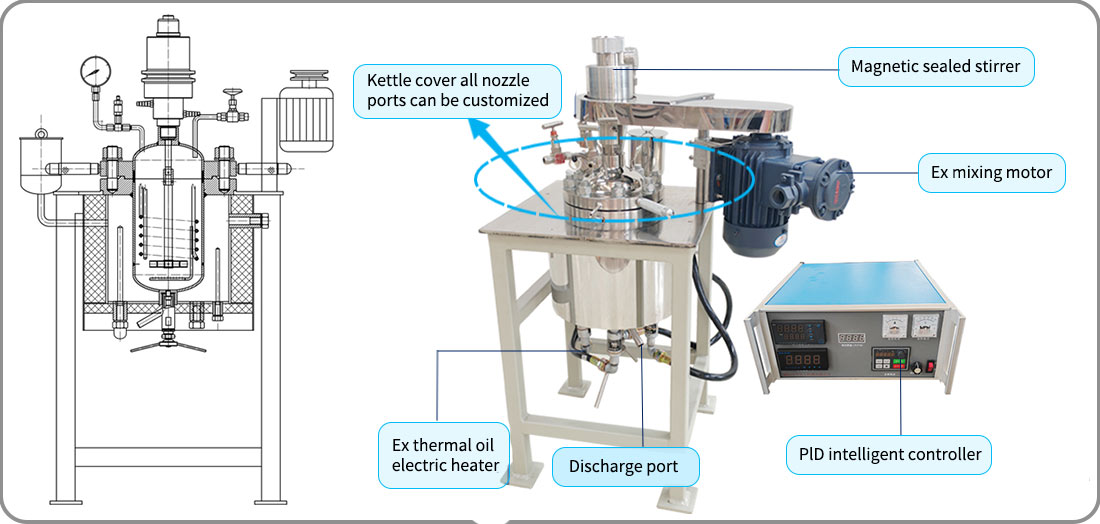

1. One set of PID intelligent controller a controllable adjustable (frequency conversion speed regulation, motor current display, speed display, temperature display, heating temperature control). Temperature control accuracy ±1℃. 2. Magnetic sealing shaft sleeve, with explosion-proof motor (dIICT4), with explosion-proof electric heater (dIIBT4). 3. Equipped with valves, pressure gauge, bursting disc, explosion-proof temperature platinum resistance. Feeding port has screw cap, bottom discharge is expansion valve. Wrench, standard accessories (gasket, bursting disc each with a standby). 4. Material: The cylinder, head, valve, flange are stainless steel S31603. Jacket and insulation shell's material is S30408. 5. Insulation belt bracket, material carbon steel coating. 6. Heat transfer oil user self-matching. |
| Full Volume (L) | Effective volume (L) | Design pressure (MPa) | Working pressure (MPa) | |
| kettle | 3.5 | 2.5 | 2.5 | 0.8 |
| Design Temperature (℃) | Operating temperature (℃) | Material | Stirring mode | |
| kettle | 200 | 100 | S31603 | self-priming |
| Stirring speed | Heating method | Motor power (W) | Sealing manner | |
| kettle | 0~1000 | oil bath electric heating | 550（dIICT4） | Magnetic force |
