00621
| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 230 | ||
| 2 | Work volume（L） | 200 | ||
| 3 | Design pressure（MPa） | 8.4 | 0.4 | |
| 4 | Work pressure（MPa） | 7 | 0.3 | |
| 5 | Design temperature（℃） | 200 | 200 | |
| 6 | Work temperature（℃） | 150 | 150 | |
| 7 | Material | 316L + Hastelloy | stainless steel | |
 |

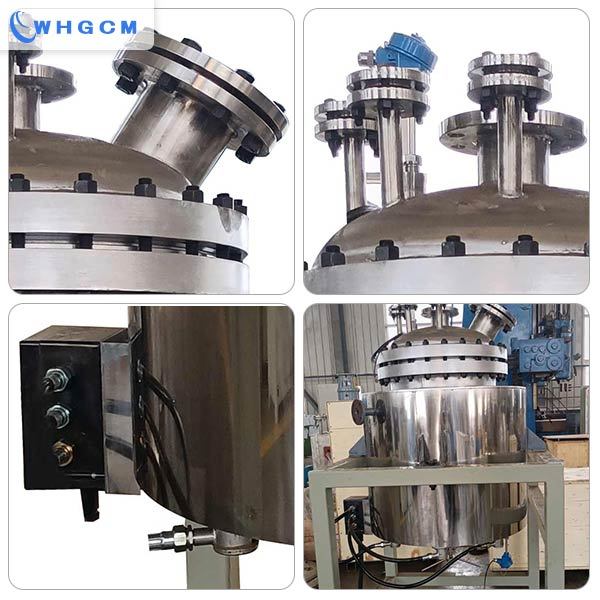

Ports and welded nozzles
|
|
Open style structure
The volume of the vessel is only 200L, so it is not possible to apply a manhole or hand hole for the cleaning purpose.The open style structure with main flange could meet the maintaining request very well.
|
 |
 |
Double jacketed vessel
|
Ex-proof cable case
|
 |
| Type | Structure Type | Design temperature | Stirring speed | Heating power | Discharging type | Mixing style | Contact material | Controller |
| pilot jacketed reactor | Open type | -196 °C~400°C | n/a | 18 KW | Bottom | n/a | Hastelloy | n/a |
| Volume | Design pressure | Motor | Motor power | Heating type | Mixer shaft | Seal type | Kettle lid open port | Other accessories |
| 200 L | Negative pressure~20 | n/a | n/a | Electric heater with thermal oil | n/a | none | Burst disc(safety valve ) port | n/a |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
