1L Titanium Jacketed lab reactor for Agricultural pesticide experiments

This is batch reactor with kettle style designed to work under 70 times of atmospheric pressure. It is equipment with magnetic stirrer, which has the advantage of high sealing and high speeding effect.

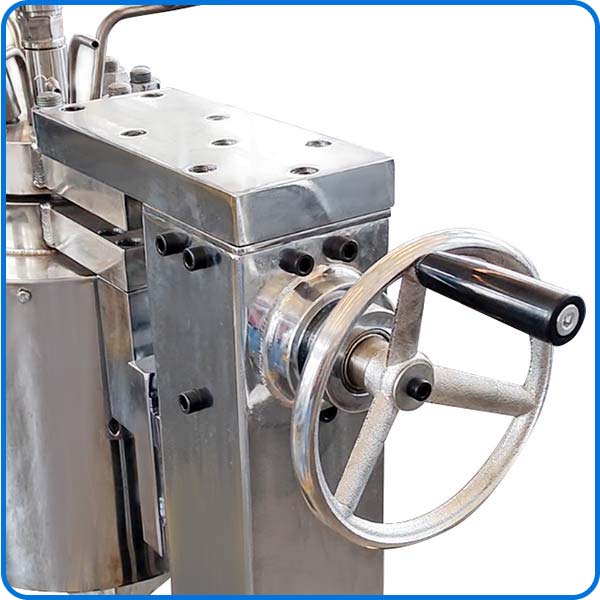

Manul lifting device: The left photo is the turning wheel of the lifting device, which could offer very convenient operation for kettle maintains and cleaning. The other reason of applying it is because the weight caused by high pressure request. To withstand the high pressure, the reactor's cylinder and sealing parts needs to be very strong, and a lot of steel is required. It makes the carrying and holding the reactor cylinde and lid very hard.  The lifting device could easy solve the problem and make the operation easy and fast.

Magnetic coupler: The stirrer is using magnetic coupler as the shaft sleeve sealing part. This is the reason why we could the stirrer as magnetic stirrer.  The magnetic coupler have very good sealing effect to prevent the leakage of the medium. It is usually used for the high pressure application. Nozzle and ports: These parts are assembled on the reactor lid are very commen parts for batch reactor. The nozzles are using welded or screwed type for the high pressure resistant. Main flange: This flange is designed according to the steel flange standard as per high pressure value. The number and size of blots and nuts are all designated by the standard. Our company are available for the standards of ASME, ISO, GB, PET, and EAC.

Full volume 1.2 Liters Design pressure MPa 10 Design temperature 300°C Working pressure MPa  7 Working temperature 250 Motor power 125W Heating power 2.0KW Rotation speed rpm 0-750 Stirring Style:  propeller agitator Heating method:  Jacketed heating Sealing method: Magnetic seal Contact material: Titanium TA2 and  Stainless steel S30408 Design life 10 years Application: chemical intermediates research for Agricultural pesticides  Chemical Reaction Formulation

1, temperature controller

PID intelligent controller a controllable and adjustable (infinitely adjustable speed, motor current display, speed display, temperature display).

2, Seal structure

Magnetic coupler (internal and gas phase material contact material for Hastelloy C276), with the motor.

3, Accessories.

with kettle lid opening valve, diaphragm pressure gauge, rupture disc (titanium diaphragm), platinum resistance, feeding port with silk cap, wrench, and standard accessories.

4, Material.

The kettle body and kettle lid material is stainless steel S30408 lined with titanium TA2, other materials in contact with materials in the kettle are titanium TA2, the kettle cover opening valve receiver material is titanium TA2, heat preservation sleeve material S30408.

5、Rack

With a manual lifting flipping rack for temperature preservation, the kettle cover is fixed and the kettle body is lifted and turned over.

6、 Heating parts

Jacket circulation heating, insulation.

This is a kind of titanium equipment that uses titanium plates as the liner. The titanium TA2 has higher corrosion resistance than stainless steel so that it would withstand the corrosion caused by the medium of this experiment.
