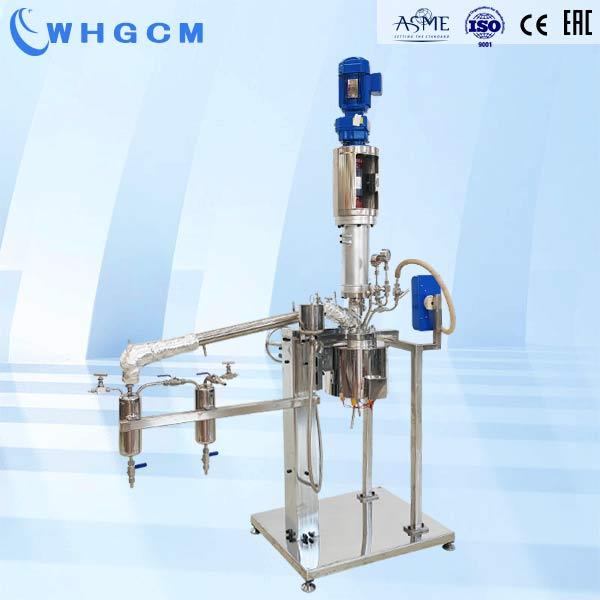

| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 1 | ||
| 3 | Design pressure（MPa） | -0.1~3 | ||
| 4 | Work pressure（MPa） | -0.1~2 | ||
| 5 | Design temperature（℃） | 350 | ||
| 6 | Work temperature（℃） | 320 | ||
| 7 | Material | S31603 | ||
| Work volume | Design pressure | Design temperature | Motor power | Stirring form | Contact material |
| 1L | -0.1~3 MPa | 350 | 750W | Spiral strip agitator | S31603 |
| Design life | Working pressure | Working temperature | Rotation speed | Heating method | Sealing method |
| 10 years | -0.1~2 MPa | 320 | 0-100RPM | Jacketed electric heating with thermal oil bath | Magnetic sea |
 |

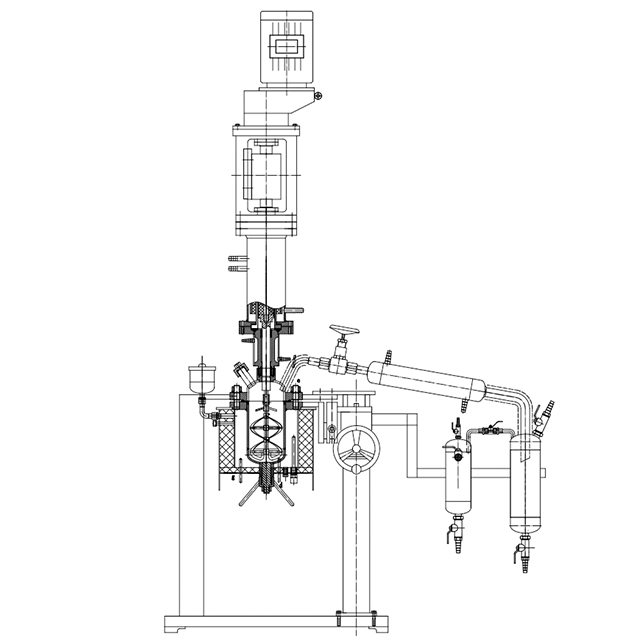

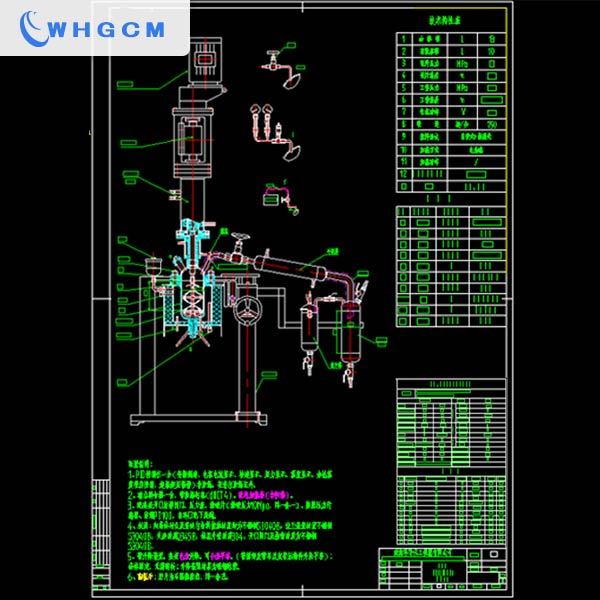

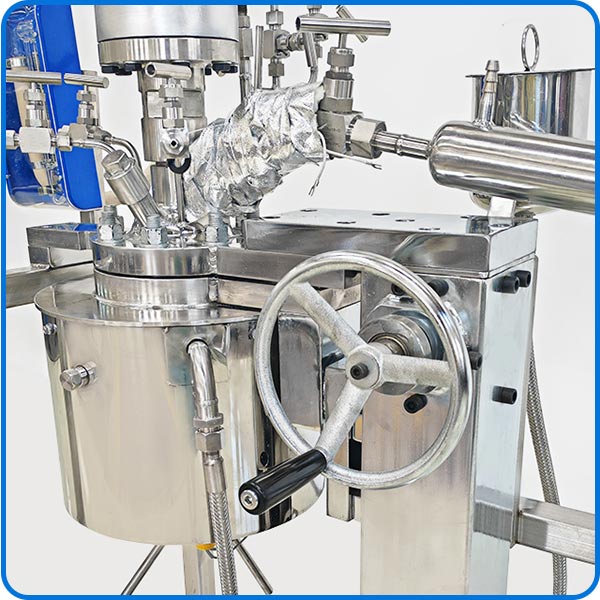

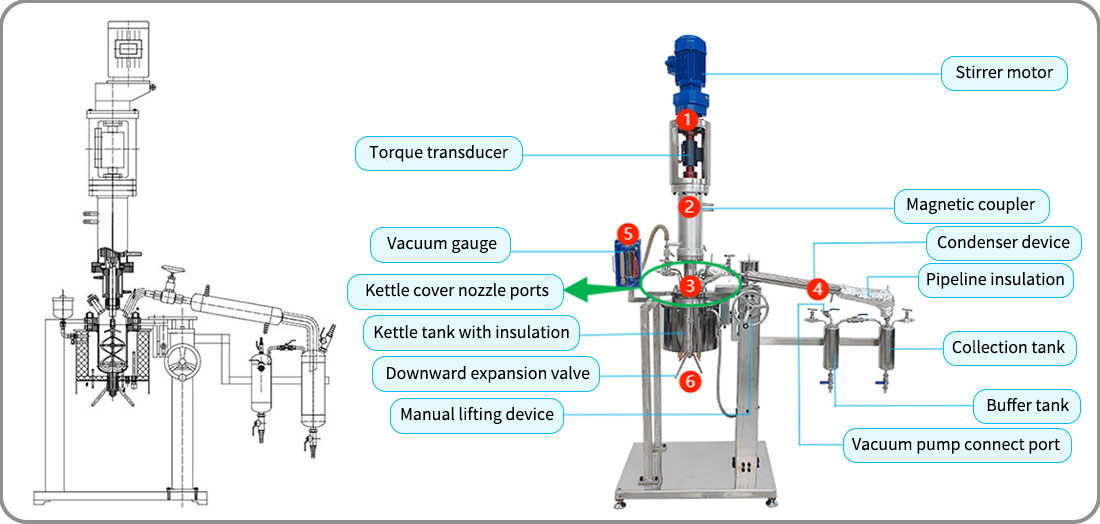

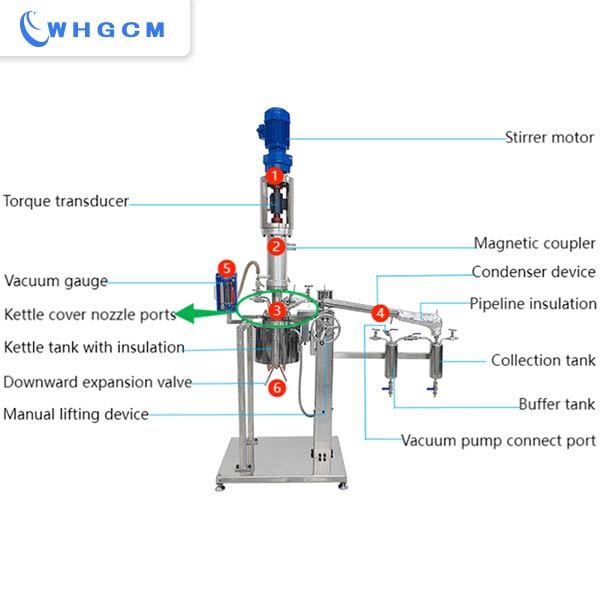

Components for high pressure: Kettle wall:
The tube of the nozzles are welded onto the ports as per required high pressure processing standards. Flange of stirrer: It is made as per the code of High Pressure Steel Flange too. Condenser and tanks: They are made to withstand the high pressure and vacuum conditions as well. Pressuremeter and gauge: They are including the positive pressuremeter, negative pressuremeter, burst disc and PID controller. Manual lifting device：
|

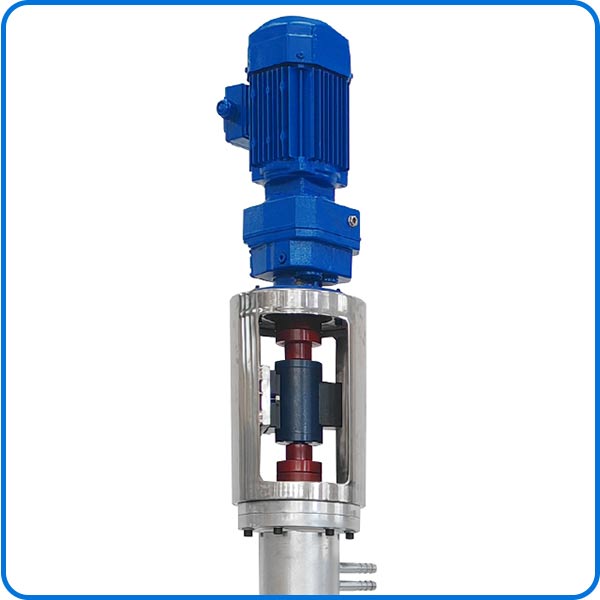

| Agitator: Stirrer blade: Spiral belt type.
It is required by the client , so they could collect the torque data for research. Motor and reducer: Due to the large torque, the motor with power of 750W is usded for this reactor. All of above parts make the agitator seem larger when comparing with the reactor body. |
 |
 |

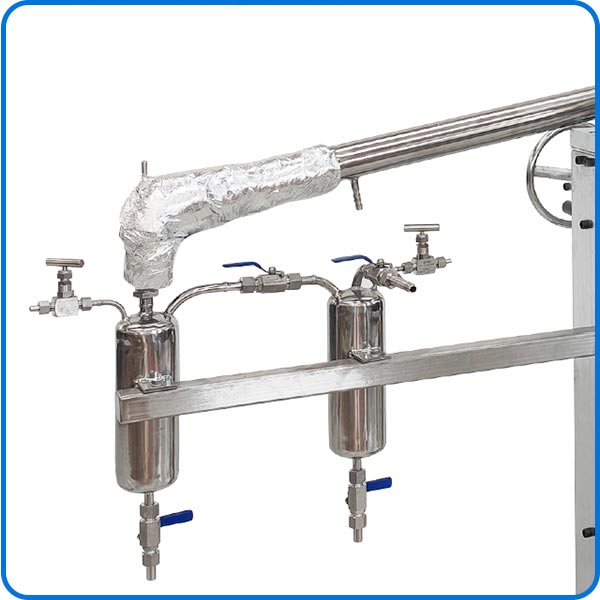

Parts for distillation: To seperate the products from the medium, the principle of vapor with high temperature under vacuum is a good choice. To meet the principle, the following parts are designed and made: Heaing parts:
The valves used to control the flew. They are selected to performance well sealing under the high pressure and vacuum , as well as the high temperature conditions. All of above parts are made from the stainless steel 316L. |
 |
 |
 |

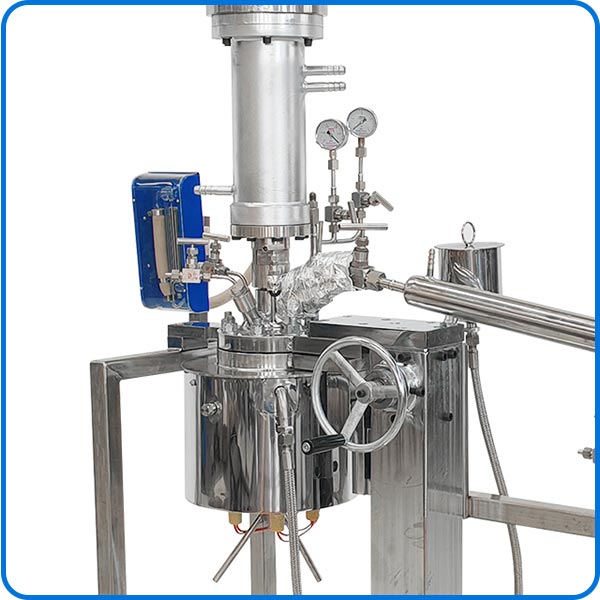

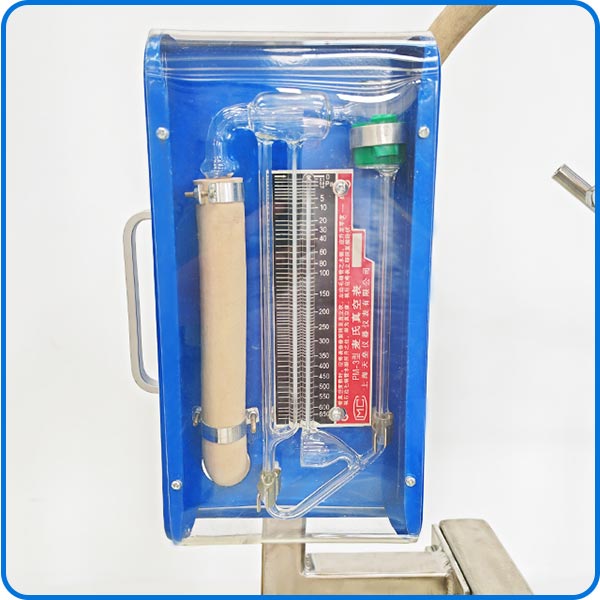

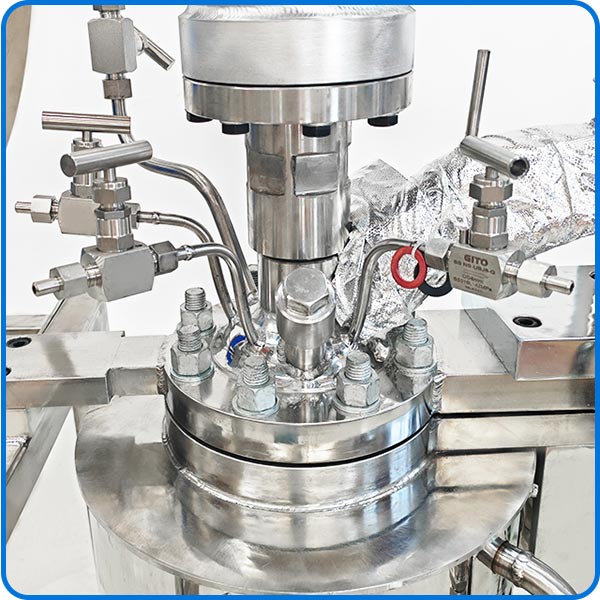

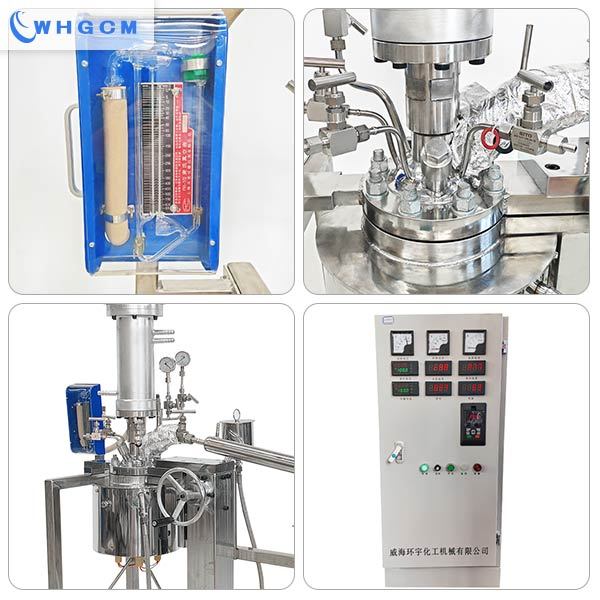

| Vacuum gauge | Top view of the reactor | Magnetic seal sleeve |
|
|
 |

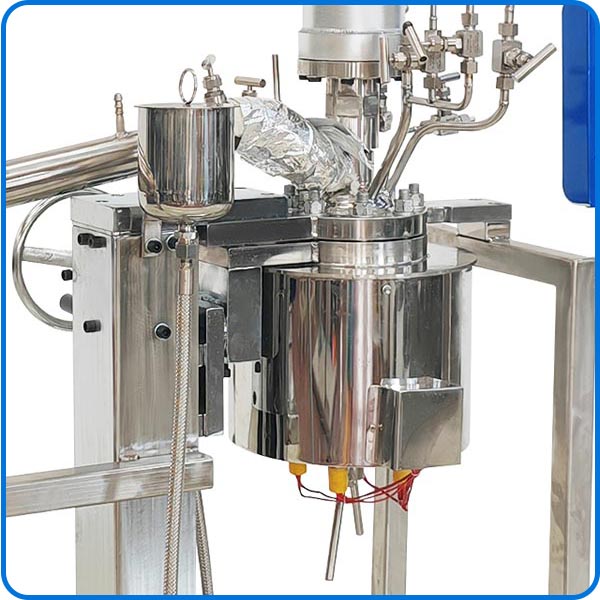

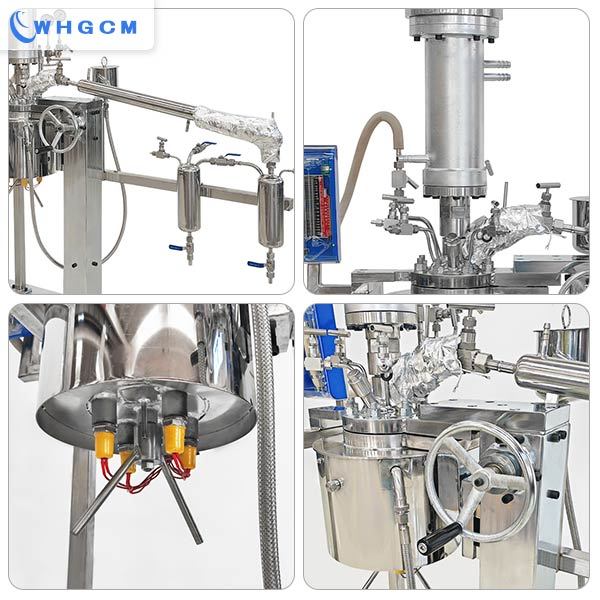

| Manual lifting device | Condenser, collector, buffer tank | feed tank of the reactor |
 |
1, PID adjustable controller (frequency control, motor current display, temperature display, torque display, heating temperature control), temperature control accuracy ± 1 ℃. 2, with magnetic coupler, with motor reducer, with torque sensor. (Non-explosion-proof) 3、With kettle cover opening valve, positive pressure gauge, negative pressure gauge, bursting valve, temperature sensor, etc.. 4、Materials：contact material stainless steel S31603 5、With manual lifting and turning device. 6、No-load vacuum degree of the whole machine is 50pa. 7、Vacuum pump and imported heat conduction oil are provided by customers. 8、Power supply 220V 9、Application: Chemical experiment, Polyester reaction |
