| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 10 | ||
| 3 | Design pressure（MPa） | -0.1 | ||
| 4 | Work pressure（MPa） | -0.1 | ||
| 5 | Design temperature（℃） | 280 | ||
| 6 | Work temperature（℃） | 230 | ||
| 7 | Material | SS316L | ||
| 8 | Stirring speed | 0~150 | ||
| 9 | Motor power (W) | 1100 | ||
 |

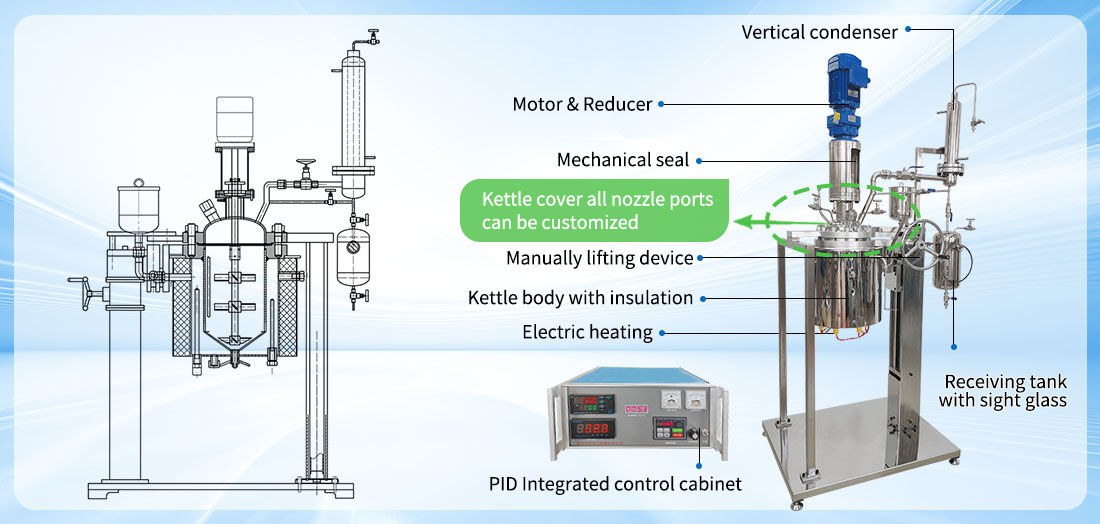

Mechanical sealed stirrer -Inline mounted stirrer mixing motor -Mechanical sealing coupler Kettle cover nozzle ports -all nozzle ports are customized as the user's requirements -With pressure gauge/rupture disc -Materials feeding ports -Tank inner/jacket temperature measuring ports etc. Note: all nozzle ports & fitting type can be customized |
| Heating type Oil bathed electric heating jacket -There are 6pcs electric heating bars inside the jacket. -The rods are immersed inside the thermal oil containing in the jacket. -The electric heaters will be powered on when the temepartue under the set up value. -The number the rods is decided by the rods' specification and required heating power by the reaction. |
 |
 |
Reactor body The material of kettle's internal surface is stainless steel SS316L. Manually lifting device -Manually kettle cover lifting device with lock block -Manually kettle body turning over |
