1L Ethyl acetates reactor lab application

No.00408
This is stainless steel lab reactor for Ethyl acetates, the medium for reaction are Ethyl acetates, nitrogen oxides, and water.
Description

I Specification


Full Volume (L)  Effective volume (L) Design pressure (MPa) Working pressure (MPa) Design Temperature (℃) Operating temperature (℃)
1.4 1 -0.1~2.5 -0.1~2 -70~230 -50~200
Material stirring mode stirring speed heating method  Motor power (W) sealed manner
S31603 paddle 50~500 jacketed circulating 370(dⅡBT4) magnetic

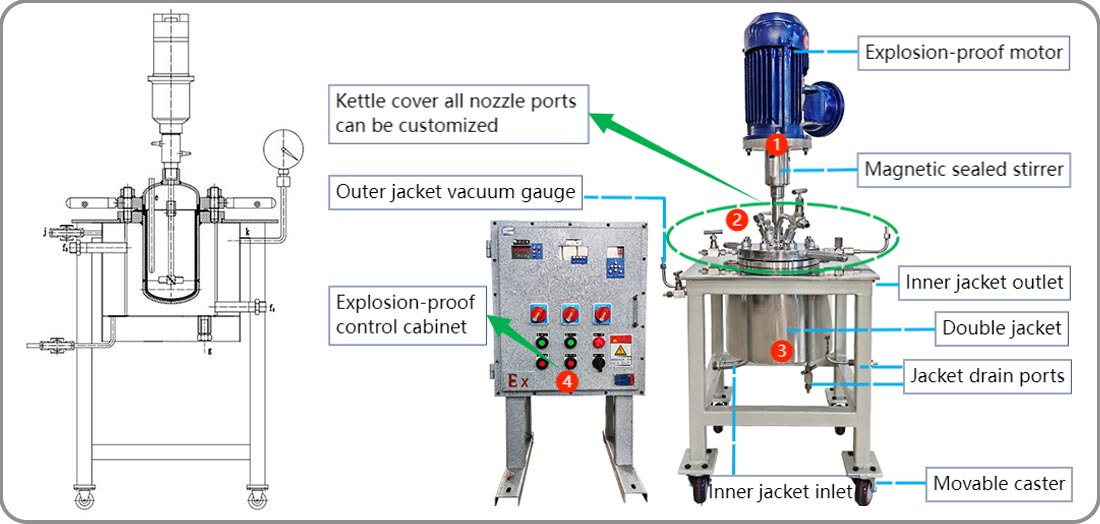

II Configurations:

1, One set of explosion-proof touch screen control cabinet.
2, A magnetic coupler with explosion-proof motor (explosion-proof grade: DIIBT4).
3, Reactor ports are opened for valves, pressure gauges, bursting discs, explosion-proof temperature platinum resistance, reserved mouth with screw cap, with wrench, washer, standard accessories.
4, Materials: S1603
5, Vacuum insulation jacket. Support by bracket, movable.
6, External circulation equipment.

III Advantages

1, The reactor is well designed as the customer requested, with a simple structure and beautiful appearance.

2, The motor is 370W, supports the stirring speed up to 500 rpm.

3, The magnetic shaft sleeve is applied in this reactor. It has the highest sealing effect in nowadays.

4, The ports of the reactor are well organized and is highly sealed with flanges.

5, The tope of support racket of the reacto is flat desk.

6, There is a vacuum port for the jacket.

7, The racket is assembled with casters.

8, Most of the material of this reactor is stainless steel S31603, can meet the corrosion resistence of the application.

9, The PID controller is designed and manufactured as per customer's requirement.

10,  PID cabinet has explosion proof feature.

11, The operation parameters are monitorable and adjustable.
