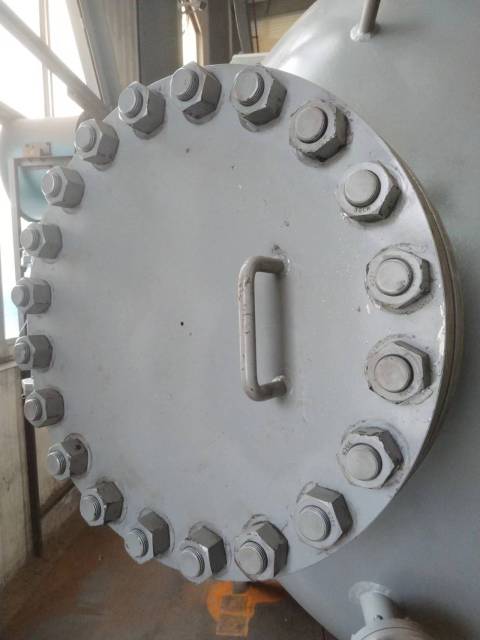

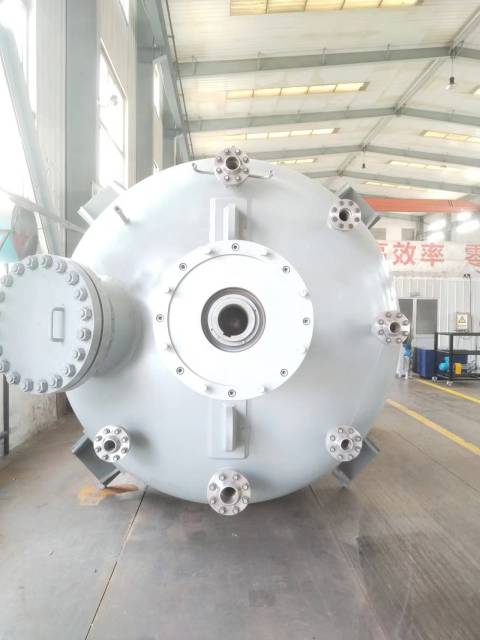

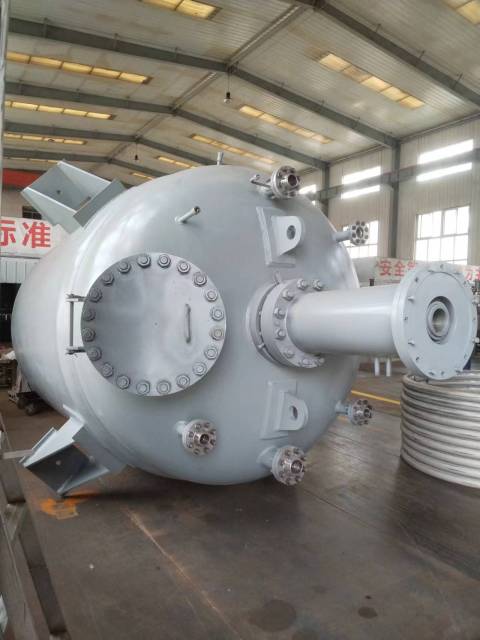

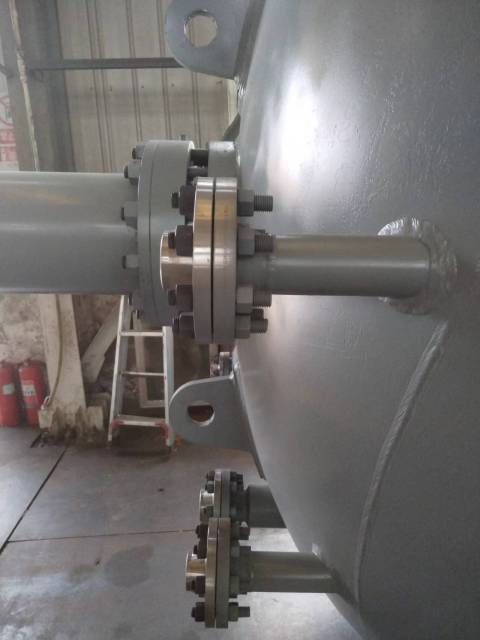

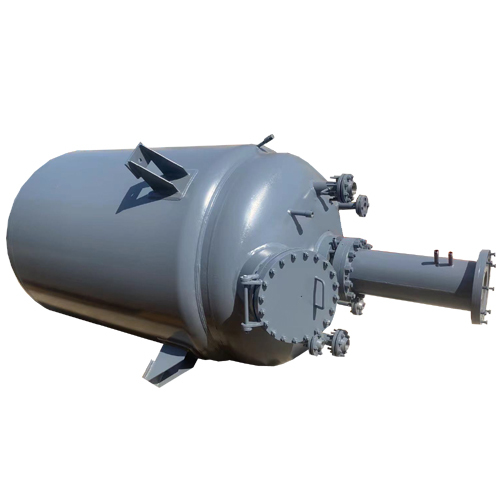

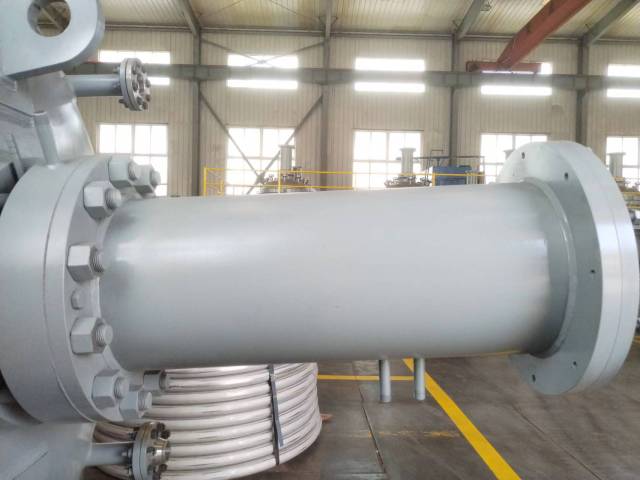

15000L industrial reactor

No.00100

Specification: GSH15000AOLP304QRDW001 This is the industrial reactor for high purity alumina and high purity boehmite producing.

Click for Quotation

Description

Type	Structure Type	Design temperature	Stirring speed	Heating power	Discharging type	Mixing style	Contact material	Controller
GSH15000AOLP304QRDW001	Close type(with manhole)	-196 °C~250°C	0~500	N/A	Top	Impeller+paddle	Stainless steel 304 + Mild steel Q345R	PID
Volume	Design pressure	Motor	Motor power	Heating type	Mixer shaft	Seal type	Kettle lid open port	Other accessories
15000 L	Negative ~ 10.0 Mpa	Explosion-proof motor	N/A	Jacket circulation with thermal steam	Self-lubricating wear-resistance sleeve made of stainless steel	Magnetic seal	Burst disc(safety valve ) port, etc.	n/a

Application:

Boehmite is the core of the lithium battery coating material, which is applied to the positive electrode, negative electrode, and separator of the lithium battery to improve the heat resistance and puncture resistance of the battery cell and wall.

Boehmite is the main component of bauxite and an important chemical raw material. It is widely used in many fields such as catalysts and carriers, paper-making fillers, inorganic flame retardants, etc., especially as a precursor, it can be prepared in ceramics, Aluminum oxide, which is widely used in the fields of electronics, adsorption, and catalysis, has broad application prospects. Inorganic nanomaterial preparation is a hotspot in materials science, especially low-dimensional nanomaterials.

Technical Process: Metallurgy

15000L industrial reactor
