00617

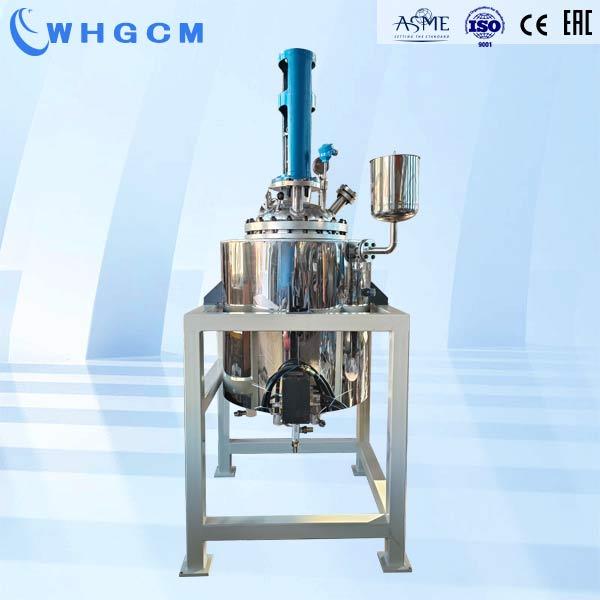

| Type | Structure Type | Design temperature | Stirring speed | Heating power | Discharging type | Mixing style | Contact material | Controller |
| FCH100PEPL304DY001 | Open type | -10 °C~200°C | 0~1000 | 15 KW | Bottom | Paddle+Impeller | 316 Stainless steel | PID |
| Volume | Design pressure | Motor | Motor power | Heating type | Mixer shaft | Seal type | Kettle lid open port | Other accessories |
| 100 L | ATM~1.6 | explosion proof motor | 1.5 KW | Electric | Self-lubricating wear-resistance sleeve made of stainless steel | Mechanical seal | Burst disc(safety valve ) port, etc. | Frame support |
