00617
| No. | Parameters | Tank | Jacket | |
| 1 | Full volume（L） | 11400 | ||
| 2 | Work volume（L） | 10000 | ||
| 3 | Design pressure（MPa） | 4.0 | 1 | |
| 4 | Work pressure（MPa） | 2.8 | 0.8 | |
| 5 | Design temperature（℃） | 210 | 210 | |
| 6 | Work temperature（℃） | 170-180 | 170-180 | |
| 7 | Material | S31603+Q345R | Q345R | |
| 8 | Stirring speed（r/min） | 0-150 | ||
| 9 | Motor power（KW） | 37(dIIBT4) | ||
 |
 |

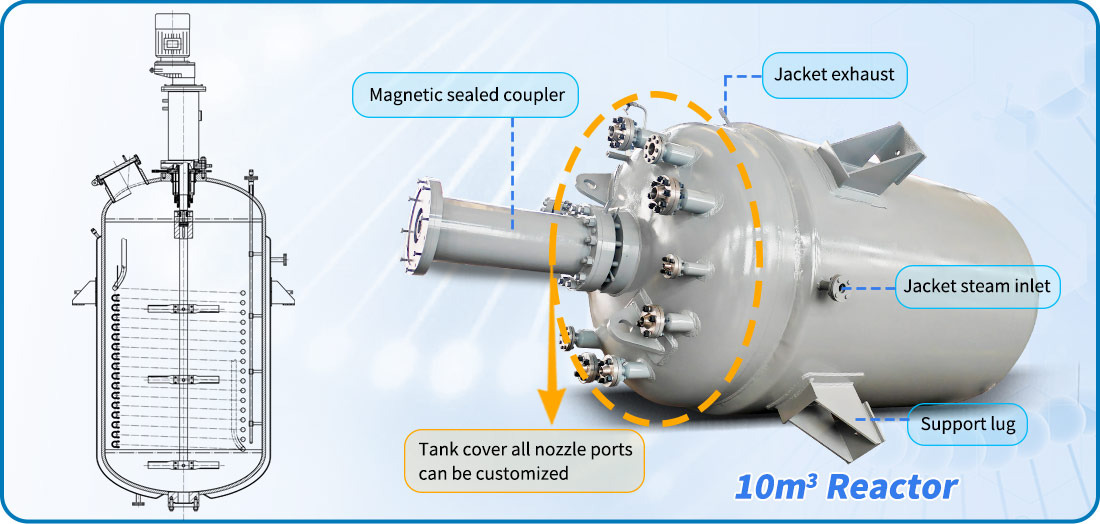

Kettle Body:
|
Agitator: The reaction requires an uniform mixing of the medium, so this part is adopted for this purpose.
|
 |
 |
Other parts:
|
Closeup of the port and nozzle:
|
