| No. | Paramters | Kettle | Jacket | |
| 1 | Full volume（L） | 12.8 | ||
| 2 | Work volume（L） | 10.0 | ||
| 3 | Design pressure（MPa） | 3 | 0.1 | |
| 4 | Work pressure（MPa） | 1 | 0.1 | |
| 5 | Design temperature（℃） | 200 | 200 | |
| 6 | Work temperature（℃） | 150 | 150 | |
| 7 | Material | S306L | S304 | |
 |
 |

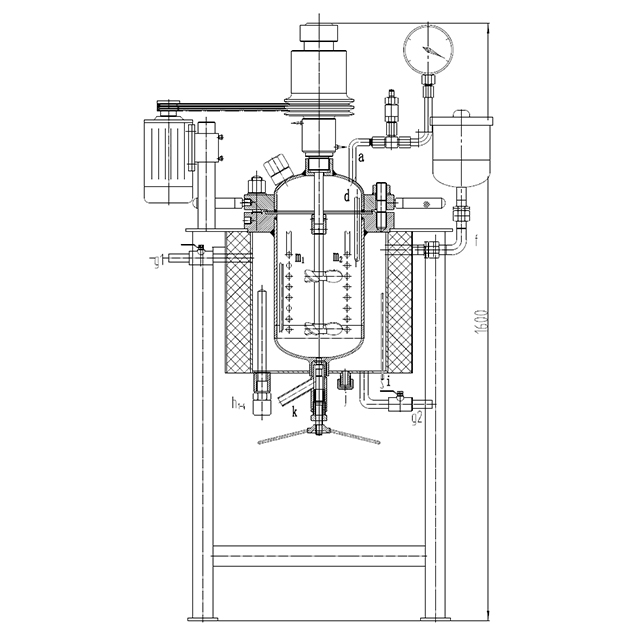

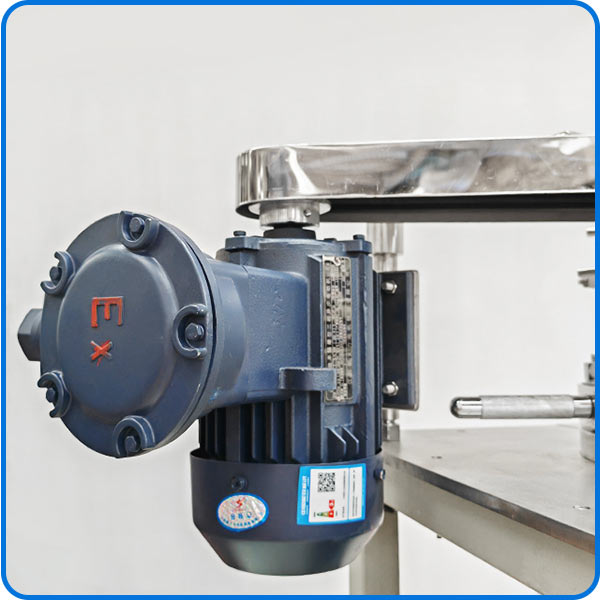

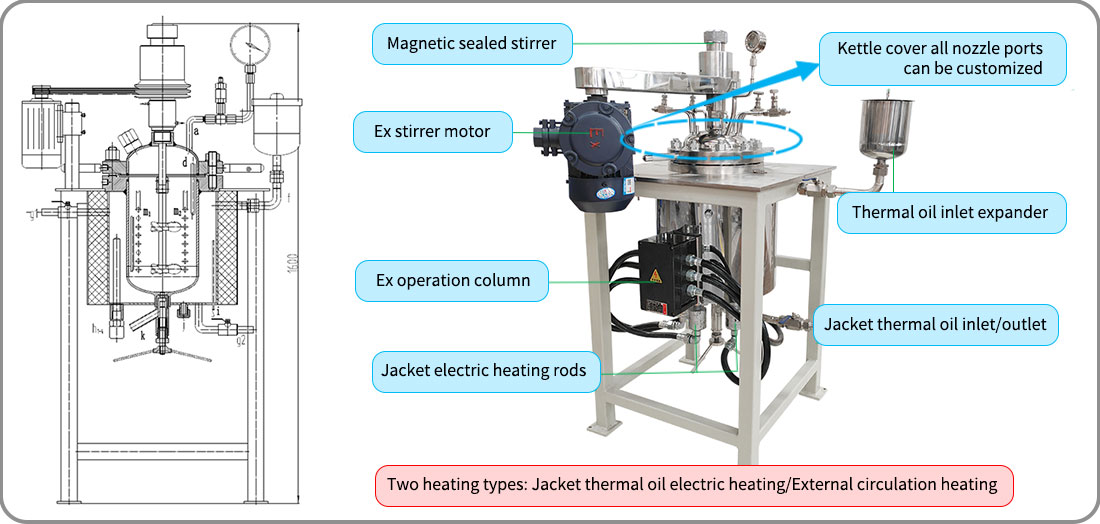

| Motor： ᆞPower: 750W It is applied to drive the double layer paddle stirrer at the speed up to 500RPM. ᆞAssembly type: Aside mounting. This assembly type is usually applied to the lab reactors, that has small area on their head for the ports. |
Kettle cylinder: ᆞMaterial: 316L. ᆞSize:Dia.219mm * H310 * T5mm. ᆞOpen style. Main flange: ᆞMaterial: 16Mn. S316L surfacing welding. ᆞSealing surface: RF type. |
 |
 |

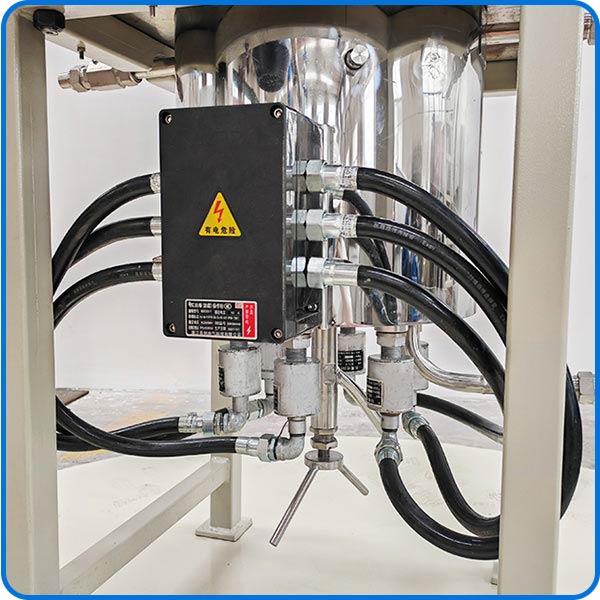

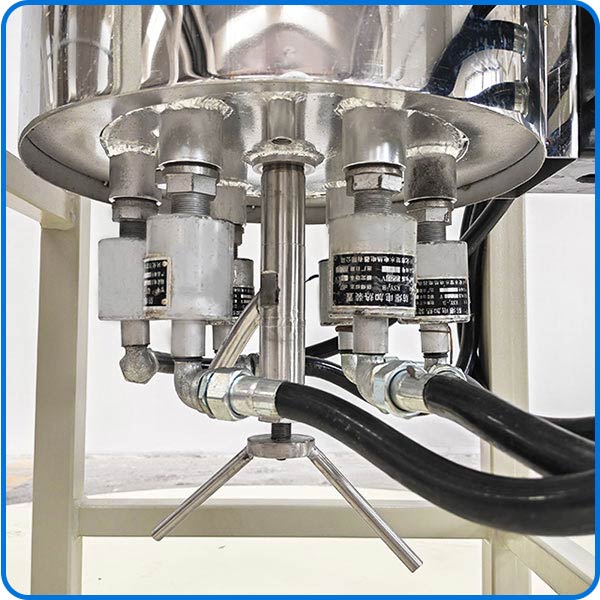

| Double Jacket. Thermal oil circulation jacket. ᆞThis jacket is welded under the main flange and it is attached to the kettle. ᆞThe thermal medium go through the jacket and heat the kettle as it is flowing. ᆞThe oil inlet port is opened on the cylinder of the jacket, and strentches out of the insulation jacket. ᆞThe oil outlet port is opened at the bottom of the jacket cylinder. These ports will connect to the pipes to the external circulation tank, which maintain the thermal oil at 170°C. ᆞThere is an expander connects to the jacket. It is used to contain the expanded the extral heated oil, so to prevent the jacket from damaging. Insulation jacket. It is used to prevent the heat from releasing, then to save the energy and protect the operator from heat harzard. |

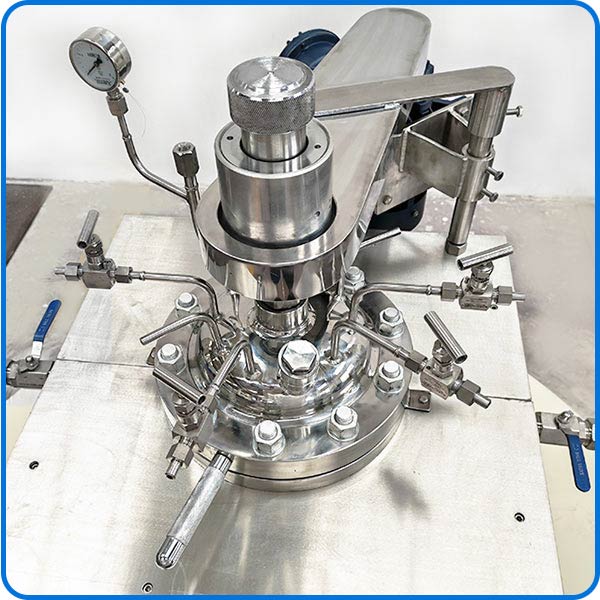

Ports and Nozzles: Ports for charging: The reactant phases including gas, liquid and solid powder. So, there are charging ports for all of three phases. Ports for functions: ᆞBecause of heating and pressure required by reaction, the thermalmeter and pressure gauge ports are needed. ᆞThe ports for inner cooling coils. Discharge port: ᆞThis port is opened under the kettle, which is connecting to the downward discharge valve. ᆞThe long spindle of the valve could cool and handle to acceptable level when operator manully turn it. ᆞThe material of the valve is S316L. All above ports are commen ports for lab purposes. Sometimes, the reserve ports are almost made as per customer's request. |
 |
Configurations: ᆞExplosion-proof PID intelligent controller with a controllable and adjustable (frequency control, motor current display, temperature display, heating temperature control) temperature control accuracy of ± 1.0 ℃. ᆞOne set of magnetic coupler with an explosion-proof motor (explosion-proof level d Ⅱ BT4). ᆞExplosion-proof electric heater. ᆞValves, pressure gauge, rupture disc, platinum resistance, inlet with silk plug, outlet with lower spreading valve, washer, and standard accessories. ᆞMaterials: The material contact with the medium are stainless steel S31603. The valves are made of S31603. The flange is made of S30408. The Insulation jacket is made of S30408. |
