| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 0.25 | ||
| 2 | Work volume（L） | 0.3 | ||
| 3 | Design pressure（MPa） | 1.0 | ||
| 4 | Work pressure（MPa） | 0.3 | ||
| 5 | Design temperature（℃） | 280 | ||
| 6 | Work temperature（℃） | 240 | ||
| 7 | Material | SS304+PPL | ||
| 8 | Stirring speed | 0-700 | ||
| 9 | Motor power (W) | 80 | ||
 |

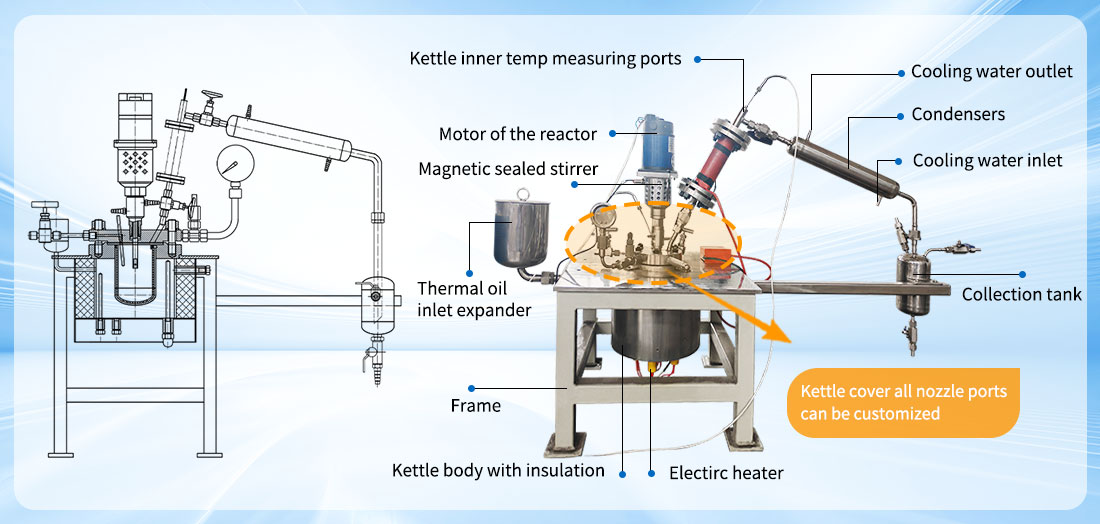

Kettle cover nozzle ports -all nozzle ports are customized as the user's requirements -Solid/Liquid/Gas phase materials feeding ports -Tank inner/jacket temperature/discharge port measuring ports etc. -Side liquid outlet port Note: all nozzle ports & fitting type can be customized. |
| 0.25L Reactor Distillation Device The distillation device is including the condensers, receiving tank, that similar with most of the reactor system with distillation. The only differece are the sizes of each part, which is designated by client. |
 |
 |
PID controller This reactor is using PID controller for intelligent control purpose. The setting parameters are including temperature, pressure, and stirring speed. The measuing range is setup according to the design temperature. The housing of the controller is made from stainless steel 304 , and it has two handles , so it is easy to carry. PID controller is widely used in all kind of reactos, especially for lab reactors. |
